OWNER'S TECHNICAL MANUAL
DESCRIPTION
The G10042 Cordless Grease Gun is designed to dispense petroleum-based NLGI1 & NLGI2 greases for general
lubrication applications.

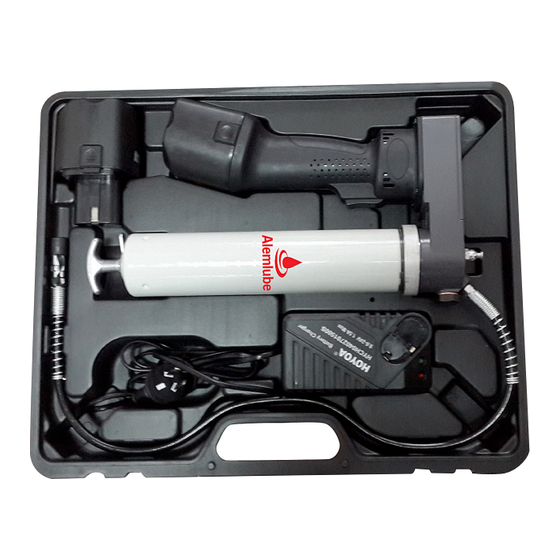

A 76cm (30") long high-pressure flexible extension hose, grease coupler, charger and carry case are also included.
The gun has a flow rate of 75gm per minute and a high pressure delivery rate up to 7000psi (517bar).
The battery output power is 14.4V Ni-Cd and the battery capacity is 1500mAH & comes with a 1 hour quick charger
(UL/SAA/GS/BS approved) and comes complete with 2 x 1500mAH batteries.
The G10042 Cordless Grease Gun has a grease barrel ready for most 450gm cartridges and is approximately 6.3kg.
SPECIFICATION
Charger Input Power
Battery Output Power
Battery Capacity
Battery Pack Charge Time
Maximum Operating Pressure
Grease Reservoir Capacity
Maximum Flow Rate
Hose
Weight
SAFETY INSTRUCTIONS
Failure to follow all instructions listed below may result in electric shock, fire, and / or serious injury. Please read carefully.
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dull areas may cause accidents.
2. Do not operate power tools in explosive atmospheres such as in the presence of flammable liquids, gases, or dust.
Power tools create sparks that may ignite the materials.
3. Keep bystanders, children, and visitors away while operating a power tool. Distractions can lead you to lose control.
ELECTRICAL SAFETY
1. Avoid body contact with grounded surfaces such as pipes, couplers. There is an increased risk of electric shock if your body
is grounded.
2. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
NSW/ACT
QLD/PNG
TEL: (02) 9677 1555
TEL: (07) 3204 9166
FAX: (02) 9675 1155
FAX: (07) 3204 1224
14.4V Cordless Grease Gun
240Vac
14.4Vdc
1500 mAh
1 Hour
7000PSI
450gm
75g/min
76cm
6.35kg
VIC/TAS
TEL: (03) 8787 8288
FAX: (03) 8787 8266
Visit our website at
www.alemlube.com.au
WA
SA/NT
TEL: (08) 9302 4199
TEL: (08) 8241 7111
FAX: (08) 9303 2095
FAX: (08) 8241 7011
or
www.alemlube.co.nz
G10042
March 2021
NZ
TEL: (09) 447 1007
FAX: (09) 447 1008
1
Advertisement
Table of Contents
Related Manuals for Alemlube G10042
Summary of Contents for Alemlube G10042
- Page 1 The battery output power is 14.4V Ni-Cd and the battery capacity is 1500mAH & comes with a 1 hour quick charger (UL/SAA/GS/BS approved) and comes complete with 2 x 1500mAH batteries. The G10042 Cordless Grease Gun has a grease barrel ready for most 450gm cartridges and is approximately 6.3kg. SPECIFICATION...
- Page 2 OWNER’S TECHNICAL MANUAL G10042 14.4V Cordless Grease Gun PERSONAL SAFETY 1. Stay alert. Watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 3 OWNER’S TECHNICAL MANUAL G10042 14.4V Cordless Grease Gun 1. Make sure the power source voltage for connecting the battery charger is the same as that shown on the charger specification plate. Connect thecharger to the power source. 2. Place the battery in the charger. Do not force - the slot on the battery and the charger base must be aligned.
- Page 4 OWNER’S TECHNICAL MANUAL G10042 14.4V Cordless Grease Gun TO FILL THE GUN WITH A FILLER PUMP A bulk filler fitting will need to be installed in the Grease Gun Head Cap (not included). Replace the pipe plug in the head cap with the bulk loader fitting.
- Page 5 OWNER’S TECHNICAL MANUAL G10042 14.4V Cordless Grease Gun Ordering Spare Parts Parts List – Part No. G10042 G10042-37 G10042-36 G10042-35 G10042-34 G10042-33 G10042-31 G10042-32 G10042-30 G10042-29 G10042-27 G10042-28 G10042-26 G10042-23 G10042-25 G10042-22 G10042-24 G10042-21 G10042-19 G10042-20 G10042-10 G10042-18 G10042-17 G10042-16...
- Page 6 OWNER’S TECHNICAL MANUAL G10042 14.4V Cordless Grease Gun Ordering Spare Parts Parts List – Part No. G10042 Part Number Description Part Number Description Left Cover Plunger G10042-01 G10042-21 Right Cover Collar G10042-02 G10042-22 Battery pack Pump Head Cap G10042-03 G10042-23...
