FULL ONE-YEAR
WARRANTY
ON
I:RFIFTSMRNo
JOINTER
-- PLANER
If within
one year from the date of purchase,
this Craftsman
Jointer
-- Planer falls due to a defect
in material
or workmanship,
Sears will repair it, free of charge.
WARRANTY
SERVICE IS AVAILABLE
BY CONTACTING
THE NEAREST SEARS STORE OR SERVICE
CENTER IN THE UNITED STATES.
This warranty
gives you specific
legal rights and you may also have other rights which vary from
state to state.
Sears, Roebuck
and Co., Dept. D/817WA, Hoffman
Estates,
IL 60195

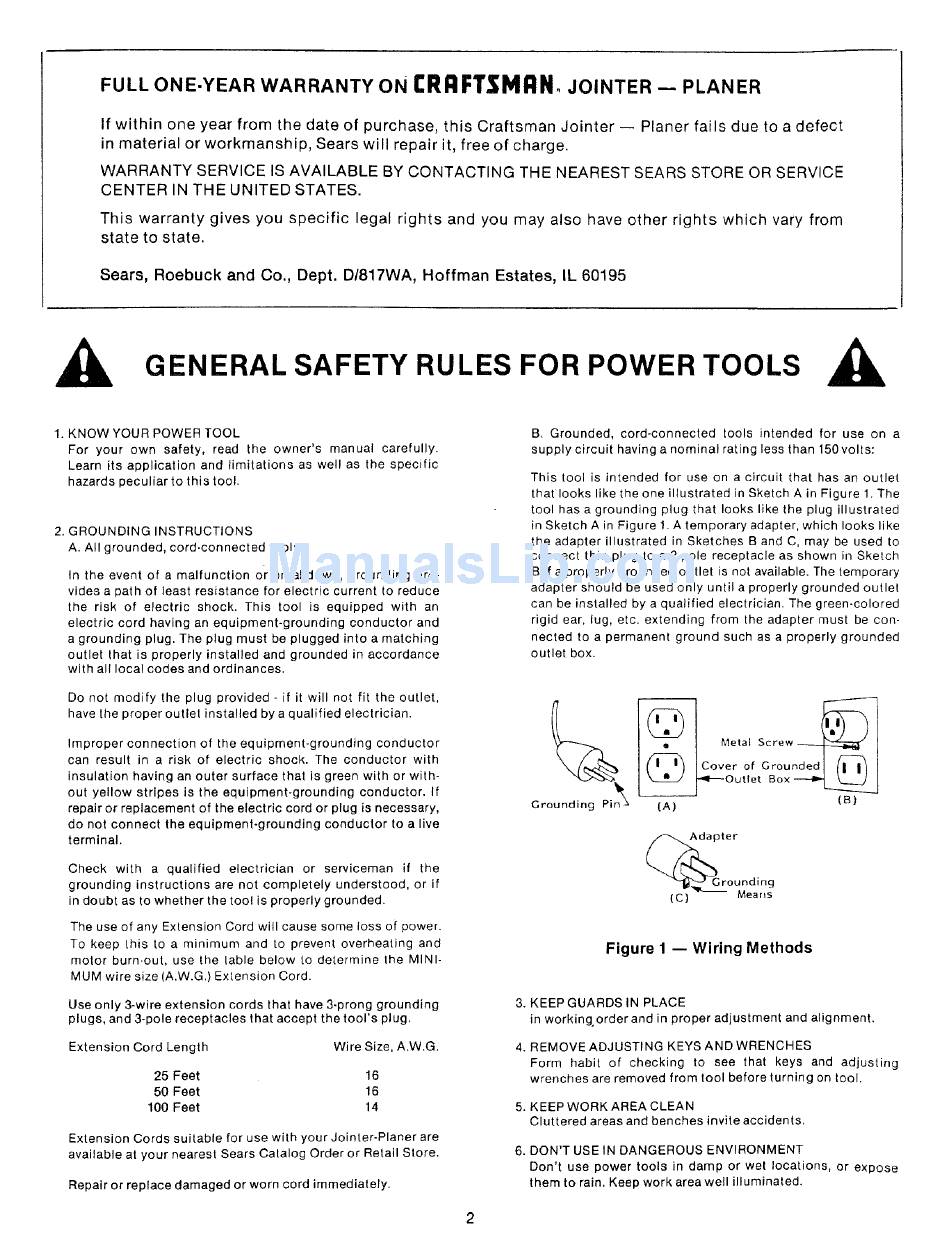

GENERAL SAFETY RULES FOR POWER TOOLS
1. KNOW YOUR POWER TOOL
For your
own
safety,
read
the owner's
manual
carefully.
Learn its application
and limitations
as well as the specific
hazards peculiar
to this tool.
2. GROUNDING
INSTRUCTIONS
A. All grounded,
cord-connected
tools:
In the event of a malfunction
or breakdown,
grounding
pro-
vides a path of least resistance
for electric
current
to reduce
the risk of electric
shock.
This
tool
is equipped
with
an
electric
cord
having
an equipment-grounding
conductor
and
a grounding
plug. The plug must be plugged
into a matching
outlet
that is properly
installed
and grounded
in accordance
with all local codes and ordinances.
Do not modify
the plug provided
- if it will not fit the outlet,
have the proper outlet
installed
by a qualified
electrician.
Improper connection
of the equipment-grounding
conductor
can result
in a risk of electric
shock.
The conductor
with
insulation
having
an outer surface
that is green with or with-
out yellow
stripes
is the equipment-grounding
conductor.
If
repair or replacement
of the electric
cord or plug is necessary,
do not connect
the equipment-grounding
conductor
to a live
terminal.
Check
with
a qualified
electrician
or
serviceman
if
the
grounding
instructions
are not completely
understood,
or if
in doubt
as to whether
the tool is properly
grounded.
The use of any Extension
Cord witl cause some loss of power.
To keep this to a minimum
and to prevent
overheating
and
molor
burn-out,
use the table below
to determine
Ihe MINI-
MUM wire size (A.W.G,) Extension
Cord.
Use only 3-wire extension
cords
that have 3-prong grounding
plugs, and 3-pole receptacles
that accept
the tool's
plug.
Extension
Cord Length
Wire Size, A.WG.
25 Feet
16
50 Feet
16
100 Feet
14
Extension
Cords suitable
for use with your Jointer-Planer
are
available
at your nearest
Sears Catalog
Order or Retail Store.
Repair or replace damaged
or worn cord immediately.
B. Grounded,
cord-connected
tools
intended
for use on a
supply
circuit
having a nominal
rating less than 150volts:
This tool is intended
for use on a circuit
that has an outlet
that looks like the one illustrated
in Sketch
A in Figure 1. The
tool has a grounding
plug that looks like the plug illustrated
in Sketch
A in Figure 1. A temporary
adapter, which looks like
the adapter
illustrated
in Sketches
B and C, may be used to
connect
this plug to a 2-pole receptacle
as shown
in Sketch
B if a properly
grounded
outlet
is not available.
The temporary
adapter should
be used only until a properly
grounded
outlet
can be installed
by a qualified
electrician.
The green-colored
rigid ear, lug, etc. extending
from the adapter
must be con-
nected
to a permanent
ground
such as a properly
grounded
outlet
box.
Grounding
Pin _
covMeta[
Screw
_'_
(A)
(B)
Adapter
g
(C)
Mear_s
Figure 1 -- Wiring Methods
3. KEEPGUARDS
IN PLACE
in working
order and in proper
adjustment
and alignment.
4. REMOVE ADJUSTING
KEYS AND WRENCHES
Form
habit
of checking
to see that
keys
and adjusting
wrenches
are removed
from tool before turning
on tool.
5. KEEP WORK AREA CLEAN
Cluttered
areas and benches
invite accidents,
6. DON'T USE IN DANGEROUS
ENVIRONMENT
Don't
use power
tools in damp
or wet locations,
or expose
them to rain. Keep work area well illuminated.
