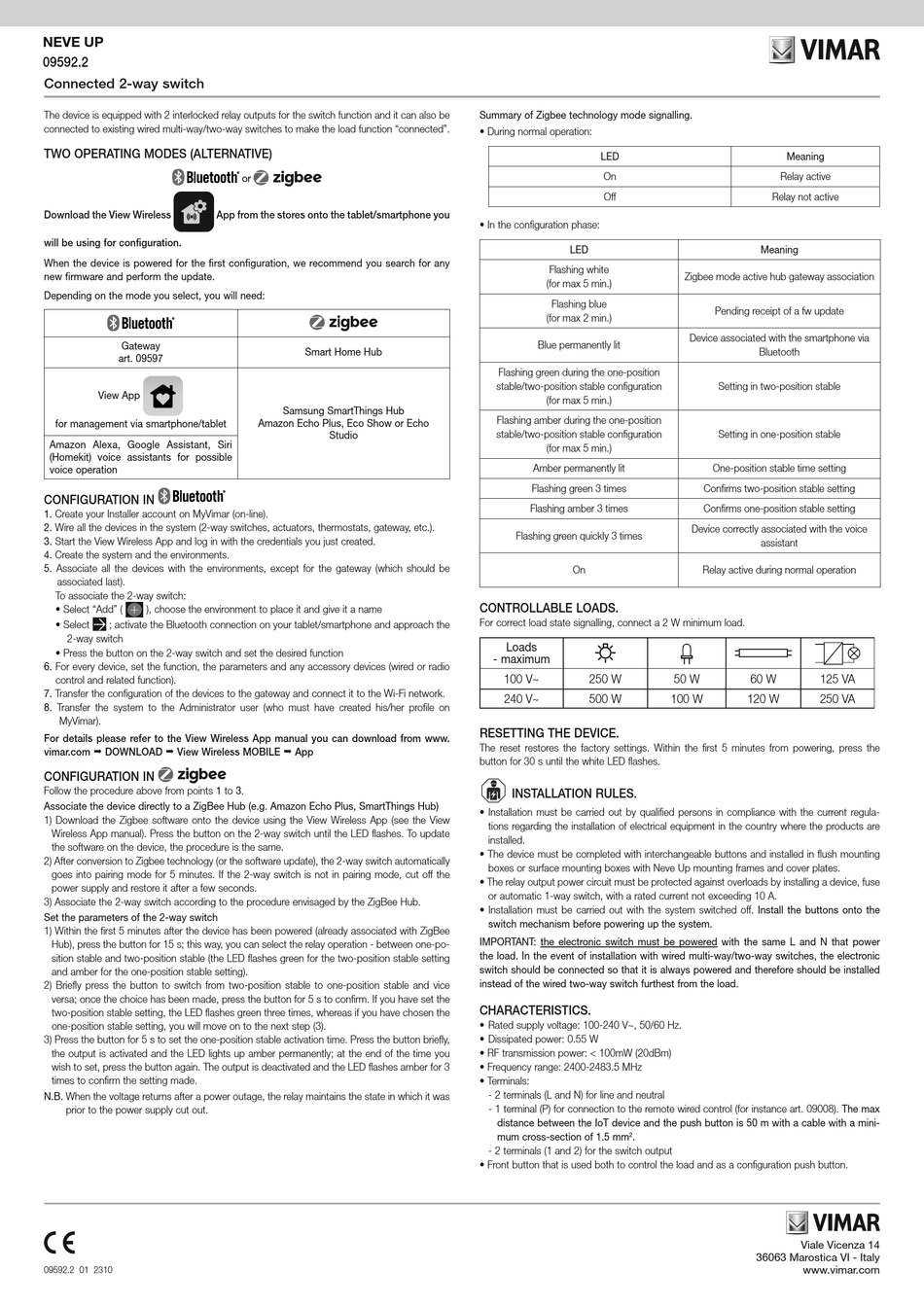

Vimar NEVE UP 09592.2 Manual

NEVE UP
09592.2

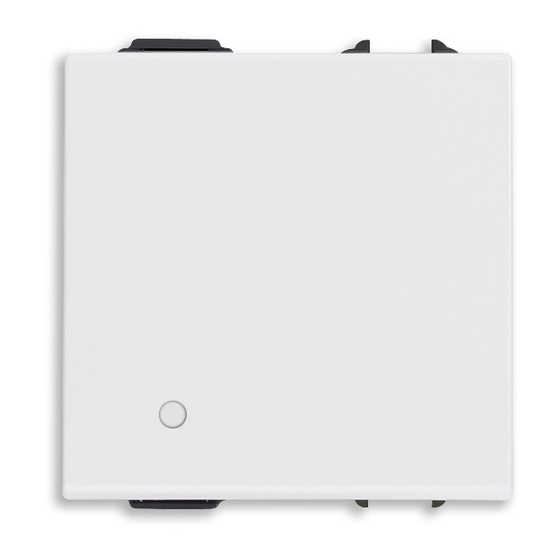

Connected 2-way switch
The device is equipped with 2 interlocked relay outputs for the switch function and it can also be
connected to existing wired multi-way/two-way switches to make the load function "connected".
TWO OPERATING MODES (ALTERNATIVE)
Download the View Wireless App from the stores onto the tablet/smartphone you
will be using for configuration.
When the device is powered for the first configuration, we recommend you search for any
new firmware and perform the update.
Depending on the mode you select, you will need:
Gateway
art. 09597
View App
for management via smartphone/tablet
Amazon Alexa, Google Assistant, Siri
(Homekit) voice assistants for possible
voice operation
CONFIGURATION IN
1. Create your Installer account on MyVimar (on-line).
2. Wire all the devices in the system (2-way switches, actuators, thermostats, gateway, etc.).
3. Start the View Wireless App and log in with the credentials you just created.
4. Create the system and the environments.
5. Associate all the devices with the environments, except for the gateway (which should be
associated last).
To associate the 2-way switch:
• Select "Add" ( ), choose the environment to place it and give it a name
• Select ; activate the Bluetooth connection on your tablet/smartphone and approach the
2-way switch
• Press the button on the 2-way switch and set the desired function
6. For every device, set the function, the parameters and any accessory devices (wired or radio
control and related function).
7. Transfer the configuration of the devices to the gateway and connect it to the Wi-Fi network.
8. Transfer the system to the Administrator user (who must have created his/her profile on
MyVimar).
For details please refer to the View Wireless App manual you can download from www.
vimar.com  DOWNLOAD  View Wireless MOBILE  App
CONFIGURATION IN
Follow the procedure above from points 1 to 3.
Associate the device directly to a ZigBee Hub (e.g. Amazon Echo Plus, SmartThings Hub)
1) Download the Zigbee software onto the device using the View Wireless App (see the View
Wireless App manual). Press the button on the 2-way switch until the LED flashes. To update
the software on the device, the procedure is the same.
2) After conversion to Zigbee technology (or the software update), the 2-way switch automatically
goes into pairing mode for 5 minutes. If the 2-way switch is not in pairing mode, cut off the
power supply and restore it after a few seconds.
3) Associate the 2-way switch according to the procedure envisaged by the ZigBee Hub.
Set the parameters of the 2-way switch
1) Within the first 5 minutes after the device has been powered (already associated with ZigBee
Hub), press the button for 15 s; this way, you can select the relay operation - between one-po-
sition stable and two-position stable (the LED flashes green for the two-position stable setting
and amber for the one-position stable setting).
2) Briefly press the button to switch from two-position stable to one-position stable and vice
versa; once the choice has been made, press the button for 5 s to confirm. If you have set the
two-position stable setting, the LED flashes green three times, whereas if you have chosen the
one-position stable setting, you will move on to the next step (3).
3) Press the button for 5 s to set the one-position stable activation time. Press the button briefly,
the output is activated and the LED lights up amber permanently; at the end of the time you
wish to set, press the button again. The output is deactivated and the LED flashes amber for 3
times to confirm the setting made.
N.B. When the voltage returns after a power outage, the relay maintains the state in which it was
prior to the power supply cut out.
09592.2 01 2310
or
Smart Home Hub
Samsung SmartThings Hub
Amazon Echo Plus, Eco Show or Echo
Studio
Summary of Zigbee technology mode signalling.
• During normal operation:
LED
On
Off
• In the configuration phase:
LED
Flashing white
(for max 5 min.)
Flashing blue
(for max 2 min.)
Blue permanently lit
Flashing green during the one-position
stable/two-position stable configuration
(for max 5 min.)
Flashing amber during the one-position
stable/two-position stable configuration
(for max 5 min.)
Amber permanently lit
Flashing green 3 times
Flashing amber 3 times
Flashing green quickly 3 times
On
CONTROLLABLE LOADS.
For correct load state signalling, connect a 2 W minimum load.
Loads
- maximum
100 V~ 250 W
240 V~ 500 W
RESETTING THE DEVICE.
The reset restores the factory settings. Within the first 5 minutes from powering, press the
button for 30 s until the white LED flashes.
INSTALLATION RULES.
• Installation must be carried out by qualified persons in compliance with the current regula-
tions regarding the installation of electrical equipment in the country where the products are
installed.
• The device must be completed with interchangeable buttons and installed in flush mounting
boxes or surface mounting boxes with Neve Up mounting frames and cover plates.
• The relay output power circuit must be protected against overloads by installing a device, fuse
or automatic 1-way switch, with a rated current not exceeding 10 A.
• Installation must be carried out with the system switched off. Install the buttons onto the
switch mechanism before powering up the system.
IMPORTANT: the electronic switch must be powered with the same L and N that power
the load. In the event of installation with wired multi-way/two-way switches, the electronic
switch should be connected so that it is always powered and therefore should be installed
instead of the wired two-way switch furthest from the load.
CHARACTERISTICS.
• Rated supply voltage: 100-240 V~, 50/60 Hz.
• Dissipated power: 0.55 W
• RF transmission power: < 100mW (20dBm)
• Frequency range: 2400-2483.5 MHz
• Terminals:
- 2 terminals (L and N) for line and neutral
- 1 terminal (P) for connection to the remote wired control (for instance art. 09008). The max
distance between the IoT device and the push button is 50 m with a cable with a mini-
mum cross-section of 1.5 mm .
2
- 2 terminals (1 and 2) for the switch output
• Front button that is used both to control the load and as a configuration push button.
Meaning
Relay active
Relay not active
Meaning
Zigbee mode active hub gateway association
Pending receipt of a fw update
Device associated with the smartphone via
Bluetooth
Setting in two-position stable
Setting in one-position stable
One-position stable time setting
Confirms two-position stable setting
Confirms one-position stable setting
Device correctly associated with the voice
assistant
Relay active during normal operation
50 W 60 W 125 VA
100 W 120 W 250 VA
