20592.0-19592.0-14592.0: View Wireless electronic switch mechanism with
100-240 V 50/60 Hz relay output for 500 W incandescent lamps, 100W LED
lamps, 250 VA electronic transformers, 120 W fluorescent lamps, local or remote
control, double IoT technology on Bluetooth® technology 5.0 standard for the
creation of View Wireless mesh system and on Zigbee 3.0 standard, 1 input
for external button for actuator control or to recall a scenario, RGB LED visible
in darkness with brightness control, 100-240 V 50/60 Hz power supply, to be
completed with 1- or 2-module interchangeable buttons.
19592-16492-14592: As above, complete with button.
The electronic switch mechanism connected is designed to operate a load via on-board
push button, through a wireless connection and from a traditional remote push button.
The device has the possibility of being controlled with two different radio standards
(exclusive to one another): Bluetooth mesh (default) or Zigbee (which can be set via
the View Wireless App). The Bluetooth mesh network implies the presence of gate-
way 20597-19597-16497-14597 while for the dialogue via Zigbee a Zigbee gateway
is required (such as Amazon Echo Plus, Echo Show or Echo Studio). The device is
equipped with:
- 2 interlocked relay outputs to accomplish the switch function;
- front key to control the connected load.
It performs the automatic opening of the relay for thermal protection. Switching on zero
crossing. The electronic switch can be connected to existing wired multi-way/two-way
switches to make the load function "connected".
IMPORTANT: the electronic switch must be powered with the same L and N that
power the load. In the event of installation with wired multi-way/two-way switches,
the electronic switch should be connected so that it is always powered and therefore
should be installed instead of the wired two-way switch furthest from the load.
FEATURES.
• Rated supply voltage: 100-240 V~, 50/60 Hz.
• Dissipated power: 0.55 W
• RF transmission power: < 100mW (20dBm)
• Frequency range: 2400-2483.5 MHz

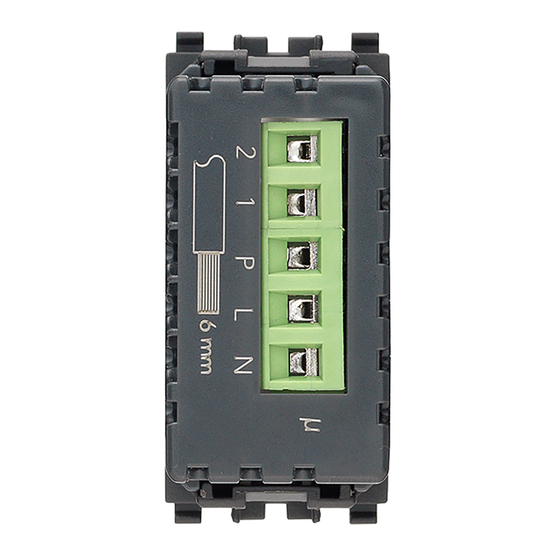

• Terminals:
- 2 terminals (L and N) for line and neutral
- 1 terminal (P) for connection to the remote wired control (for instance art. 20008-
19008-16080-14008). The max distance between the IoT device and the push
button is 50 m with a cable with a minimum cross-section of 1.5 mm².
- 2 terminals (1 and 2) for the switch output
• Front key that is used both to control the load and as a configuration push button.
• RGB LED indicating the load status (which can be set from the View Wireless App) and
the configuration status (flashing blue)
• In Bluetooth technology mode, you can associate up to 2 devices art. 03925 which
make it possible to control the actuator or activate a scenario.
• Operating temperature: -10 ÷ +40 °C (indoor)
• Protection degree: IP20
• Configuration from View Wireless App for Bluetooth technology system and Amazon
App for Zigbee technology.
• Controllable from View App.
CONTROLLABLE LOADS.
For correct load state signalling, connect a 2 W minimum load.
Loads
massimi
100 V~ 250 W
240 V~ 500 W
OPERATION IN Bluetooth technology MODE.
The device operates by default in Bluetooth technology mode and this standard makes
it possible to:
- recall a scenario using the traditional push button connected to the connected switch;
- associate the radio control 03925 which can be configured to control the actuator
on-board or to recall a scenario.
Through the use of gateway 20597-19597-16497-14597 the functions can be man-
aged locally or remotely via the View App, and the control is also available via the voice
assistants Alexa, Google Assistant and Siri. The device is also compatible with Homekit.
N.B.: From fw version 1.7.0 the device works as a repeater node for battery-oper-
ated devices (for instance art. 03980).
20592.0 EN 02 2102
Idea Plana
16492 14592.0
14592
50 W 60 W 125 VA
100 W 120 W 250 VA
Settings.
The View Wireless App can be used to set the following parameters:
- RGB LED for backlighting: colour can be selected from a default list (default: amber for
Eikon, blue for Arké and green for Plana).
- LED brightness: off, low, medium, high for active load (default: high) and for off load
(default: off).
- Load status when the voltage is restored: off, on or previous status (default: previous
status).
- Relay operation: two-position stable or one-position stable (default: two-position stable).
- One-position stable activation time (default: 60 s).
Reset procedure
To perform the reset and return the device to its factory settings, during the first 5 min-
utes that the device is powered, press the front key for 30 s until the white LED flashes.
CONFIGURATION.
For configuration operations on the system in Bluetooth technology mode please
see the instruction manual for the View Wireless App.
OPERATION IN Zigbee technology MODE.
For operation in Zigbee technology mode, the device should be associated with the
Amazon voice assistant which supports this standard, for instance Amazon Echo Plus,
Echo Show or Echo Studio, and the following parameters can then be set on the front
push button:
- Relay operation: two-position stable or one-position stable (default: two-position
stable).
- One-position stable activation time.
For the device to be associated with Amazon Echo Plus, Echo Show or Echo Studio, it
needs to be converted from Bluetooth to Zigbee using the View Wireless App, then set it
to pairing mode and subsequently follow the procedure provided by the voice assistant.
The Amazon Alexa App will signal this procedure is complete accompanied by three
green flashes of the device LED.
Pairing mode activation.
• Immediately after conversion to Zigbee technology (or the software update), the device
will automatically go into pairing mode so that it can be recognised by the Amazon
device within 5 minutes.
• If the device is not in pairing mode, you can start this setting by cutting off the power
supply to the device and restoring it after a few seconds.
• Pairing mode lasts 5 minutes, after which it is automatically disabled.
Manual sequence for parameter setting.
1) During the first 5 minutes after the switch has been powered (already associated with
Alexa), press the front key for 15 s; this way, you will enter the relay operation selection
phase - between one-position stable and two-position stable (the LED flashes green for
the two-position stable setting and amber for the one-position stable setting).
2) Briefly press the front key to switch from two-position stable to one-position stable
and vice versa; once the choice has been made, press the front key for 5 s to confirm.
If the two-position stable setting has been set, the procedure is complete and the LED
will confirm this with three green flashes, whereas if the one-position stable setting has
been set, you will move on to the next step (3).
3) In the event of the one-position stable setting (i.e. with the LED flashing amber), press
the front key for 5 s to enter the one-position stable activation time selection phase.
Press the front key briefly, the output is activated and the LED lights up amber per-
manently; at the end of the time you wish to set, press the front key again, the output
is deactivated and the LED flashes amber for 3 times to confirm the setting made.
N.B. When the voltage returns after a power outage, the relay maintains the state in
which it was prior to the power supply cut out.
LED indications in Zigbee technology mode.
• During normal operation:
LED
On
(amber for Eikon, blue for Arké, green
for Idea and Plana)
Off
Meaning
Relay active
Relay not active
