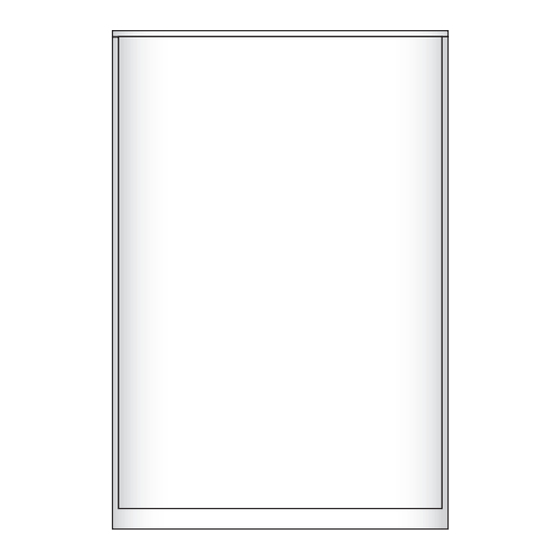

- Page 1 Gebruiks- Benutzer- User manual aanwijzing information Koelkast Refrigerator Kühlschrank IKE1970-1...
-
Page 2: Table Of Contents
CONTENTS Safety instructions Care and Cleaning Operation What to do if… First use Technical data Daily use Installation Helpful hints and tips Environmental concerns Subject to change without notice. SAFETY INSTRUCTIONS In the interest of your safety and to ensure lid, be sure to make that spring lock un- the correct use, before installing and first usable before you discard the old appli-... - Page 3 If the refrigerant circuit should become Care and cleaning damaged: • Before maintenance, switch off the appli- – avoid open flames and sources of igni- ance and disconnect the mains plug from tion the mains socket. – thoroughly ventilate the room in which •...
-
Page 4: Operation
Environment Protection ance shall be disposed according to the applicable regulations to obtain This appliance does not contain gasses from your local authorities. Avoid dam- which could damage the ozone layer, aging the cooling unit, especially at the in either its refrigerant circuit or insula- rear near the heat exchanger. -
Page 5: Daily Use
DAILY USE Movable shelves The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired. For better use of space, the front half- shelves can lie over the rear ones. Positioning the door shelves To permit storage of food packages of vari- ous sizes, the door shelves can be placed... -
Page 6: Care And Cleaning
Butter and cheese: these should be placed Bananas, potatoes, onions and garlic, if not in special airtight containers or wrapped in packed, must not be kept in the refrigera- aluminium foil or polythene bags to exclude tor. as much air as possible. Milk bottles: these should have a cap and should be stored in the bottle rack on the door. -
Page 7: What To Do If
Defrosting of the refrigerator Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special contain- er at the back of the appliance, over the motor compressor, where it evaporates. -
Page 8: Technical Data
Problem Possible cause Solution Products prevent that water Make sure that products do not flows into the water collector. touch the rear plate. Water flows on the The melting water outlet does Attach the melting water outlet to ground. not flow in the evaporative tray the evaporative tray. -
Page 9: Installation
INSTALLATION Positioning Climate Ambient temperature class Warning! If you are discarding an old +16°C to + 43°C appliance that has a lock or catch on the door, you must ensure that it is Electrical connection made unusable to prevent young Before plugging in, ensure that the voltage children being trapped inside. - Page 10 Door reversibility The door of the appliance opens to the right. If you want to open the door to the left, follow these steps before you install the appliance: 1. Loosen and remove the upper pin. 2. Remove the door. 3.
- Page 11 Install the appliance in the niche. Push the appliance in the direction of the arrow (1) until the upper gap cover stops against the kitchen furniture. Push the appliance in the direction of the arrow (2) against the cupboard on the op- posite side of the hinge.
- Page 12 Remove the correct part from the hinge cover (E). Make sure to remove the part DX, in the case of right hinge, SX in oppo- site case. Attach the covers (C, D) to the lugs and the hinge holes. Attach the hinge covers (E) to the hinge. Disconnect the parts (Ha), (Hb), (Hc) and (Hd).
- Page 13 Install the part (Ha) on the inner side of the ca. 50 mm kitchen furniture door. 90° 21 mm 90° ca. 50 mm 21 mm Push the part (Hc) on the part (Ha). Open the appliance door and the kitchen furniture door at an angle of 90°.
-
Page 14: Environmental Concerns
Remove the brackets and mark a distance of 8 mm from the outer edge of the door 8 mm where the nail must be fitted (K). Place the small square on the guide again and fix it with the screws supplied. Align the kitchen furniture door and the ap- pliance door by adjusting the part (Hb). - Page 15 222368021-A-162013...
