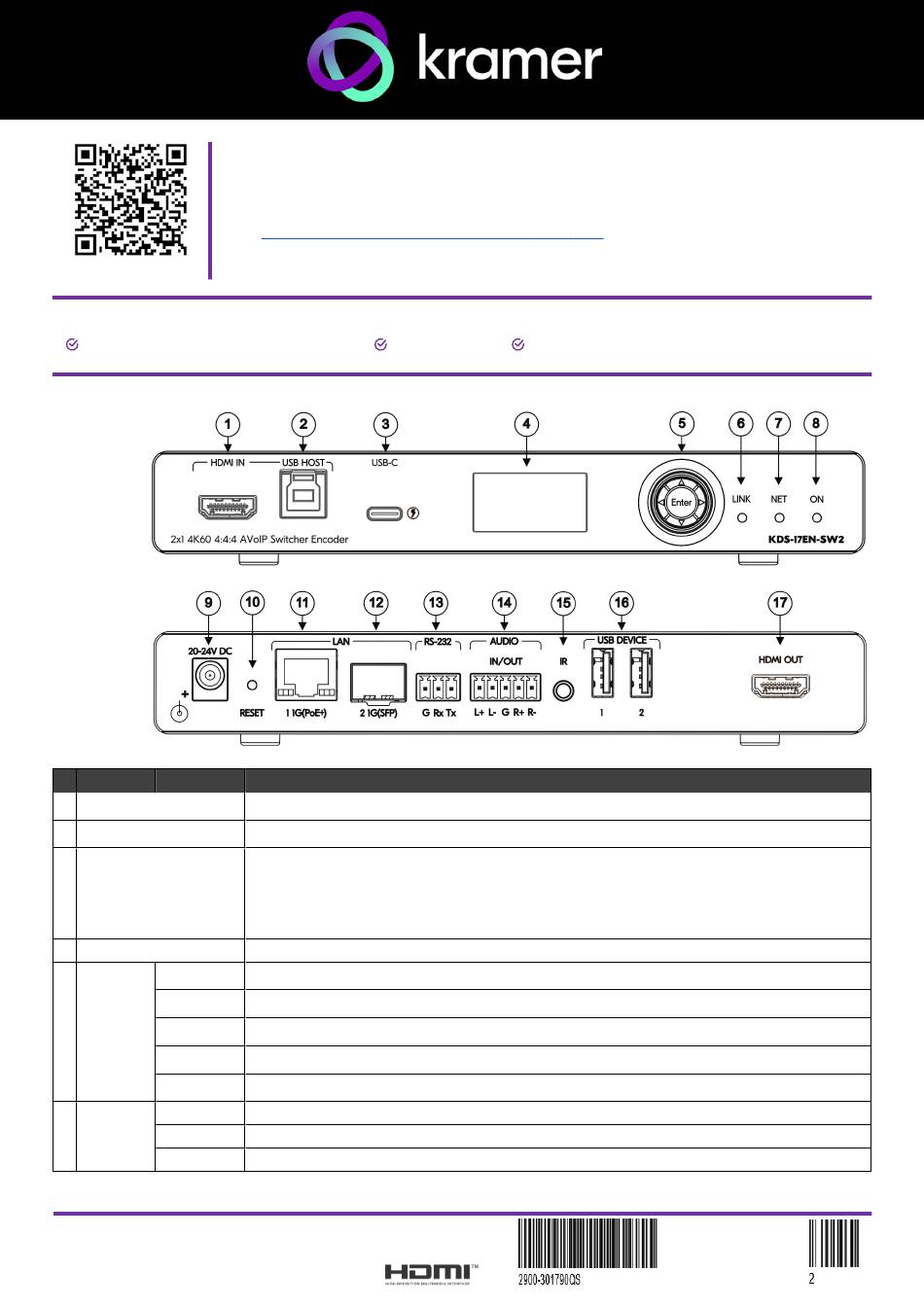

KDS-17EN-SW2 Quick Start Guide
This guide helps you install and use your KDS-17EN-SW2 for the first time.
Go to
check if firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box
2x1 4K60 4:4:4 AVoIP Switcher Encoder
Step 2: Get to know your KDS-17EN-SW2
KDS-17EN-SW2
#
Feature
1
HDMI IN Connector
2
HOST USB Type B Port
3
HOST USB Type C Port
4
LCD Display
Menu
t
5
Navigation
u
Button
p
q
Enter
Lights Green
6
LINK LED
Flashes Green HDMI or USB-C input is detected, but no valid AV signal is detected.
Off
KDS-17EN-SW2 Quick Start
https://www.kramerav.com/downloads/KDS-17EN-SW2
1 Bracket set
Function
Connect to an HDMI source.
Connect to a USB host, for example, a PC for KVM/USB support.
Connect to a USB-C host (for example, a room PC) to communicate with the USB devices (for example, a PTZ
camera) that are connected to the USB device ports.
This port can charge connected hosts that support USB Power Delivery 3.0, up to 60W, if the device is powered by
the optional PS-2006 20V DC power adapter.
Use for device configuration such as unique channel/AV stream setting.
Press to return to the previous menu.
Press to go to the next menu.
Press to move up to the next configuration parameter.
Press to move down to the next configuration parameter.
Press to enter the menu and to accept changes.
A link is established from KDS-17EN-SW2 to KDS-17DEC and is transmitting A/V.
No HDMI or USB-C input is detected.
to download the latest user manual and
1 Quick start guide
P/N:
Rev:
