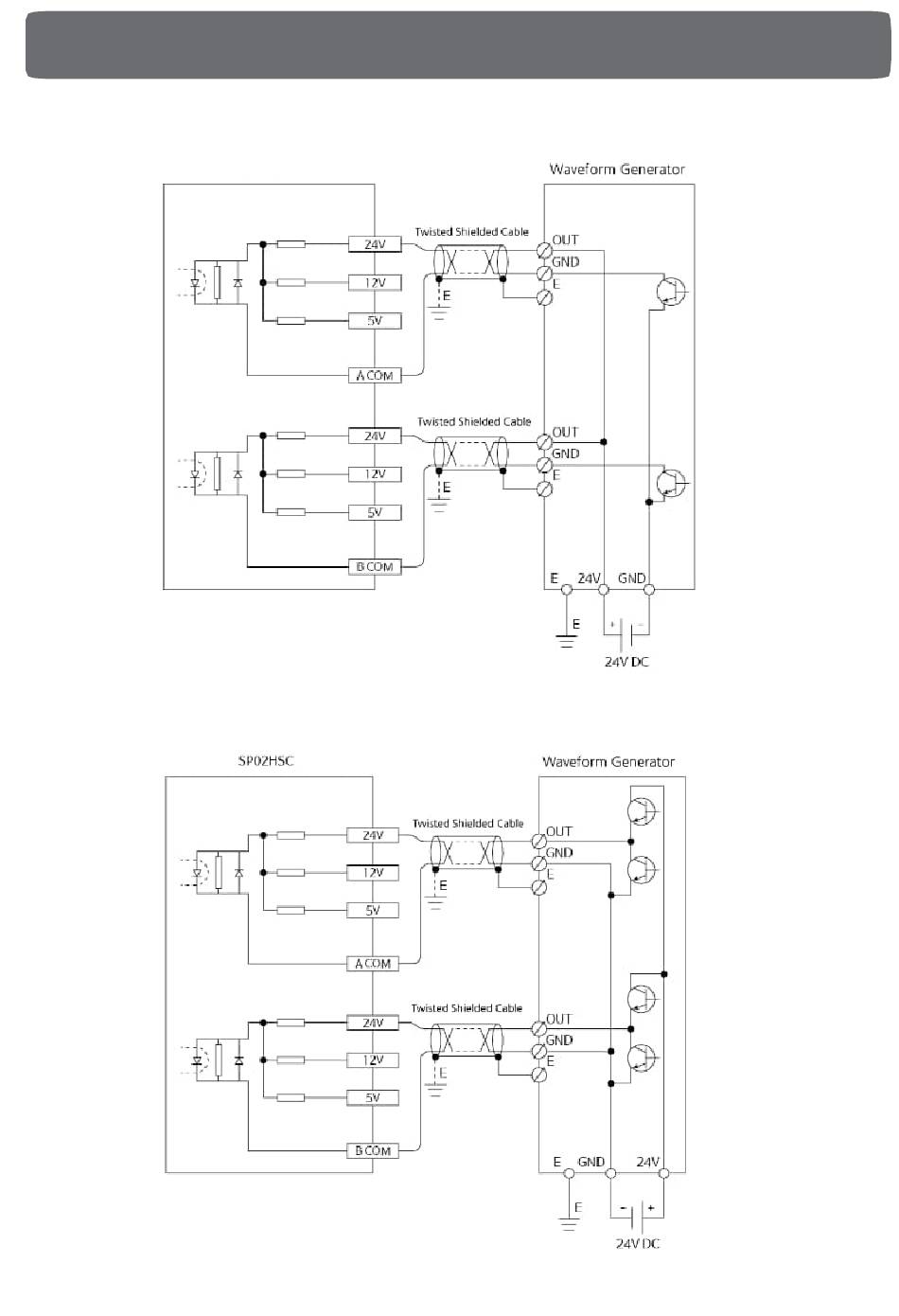

Wiring Examples
3. When waveform generator outputs 24 V NPN open collector output. (IO-SHSC02)
4. When waveform generator outputs totem pole output (voltage type). (IO-SHSC02)
- 17 -
