Wiring - Maple Systems IO-SHSC02 User Manual

High speed counter module
Hide thumbs Also See for IO-SHSC02:
Table of Contents

Advertisement

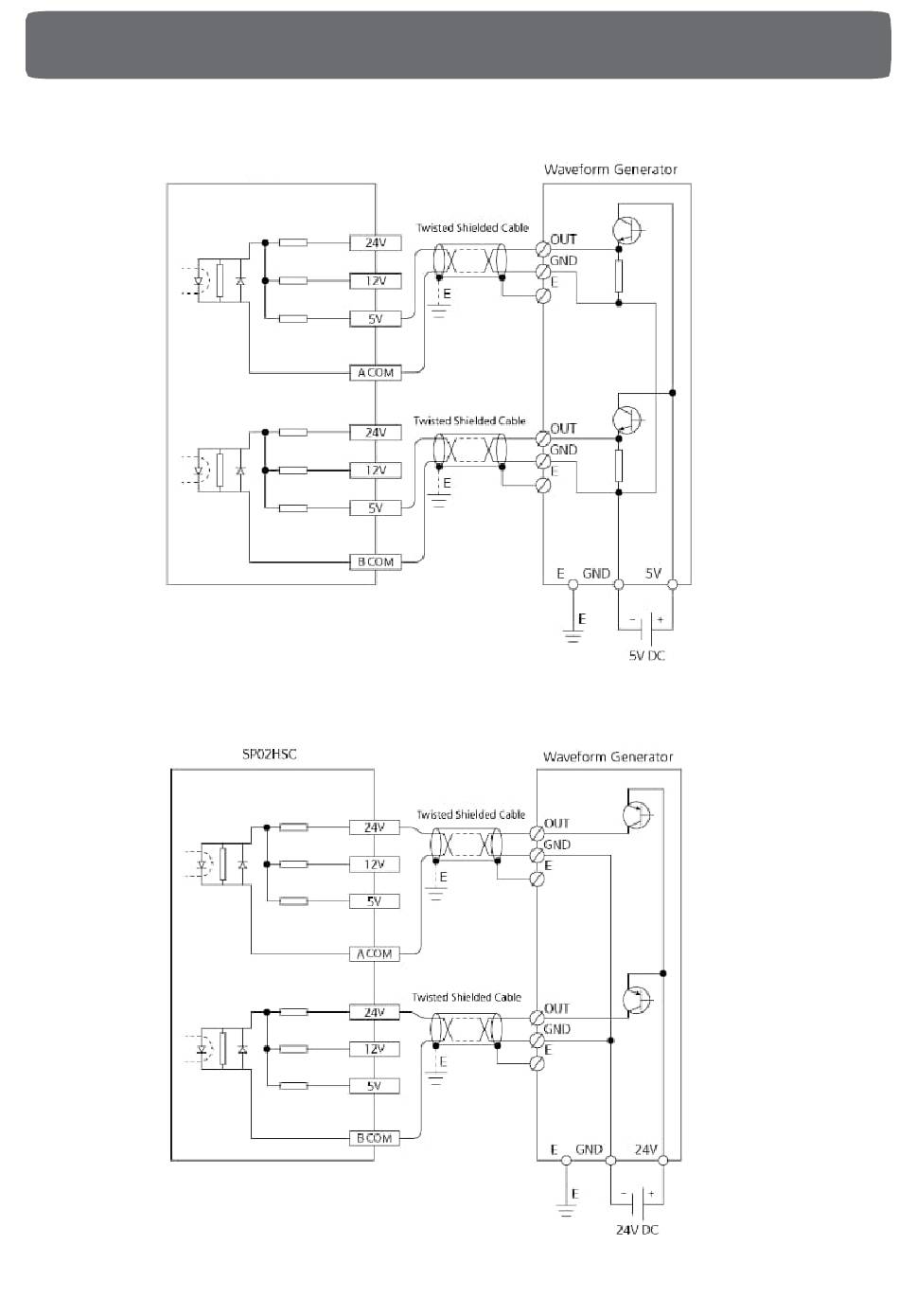

Wiring Examples
1. When waveform generator outputs 5 V. (IO-SHSC02)
2. When waveform generator outputs 24 V PNP open collector output. (IO-SHSC02)
- 16 -
