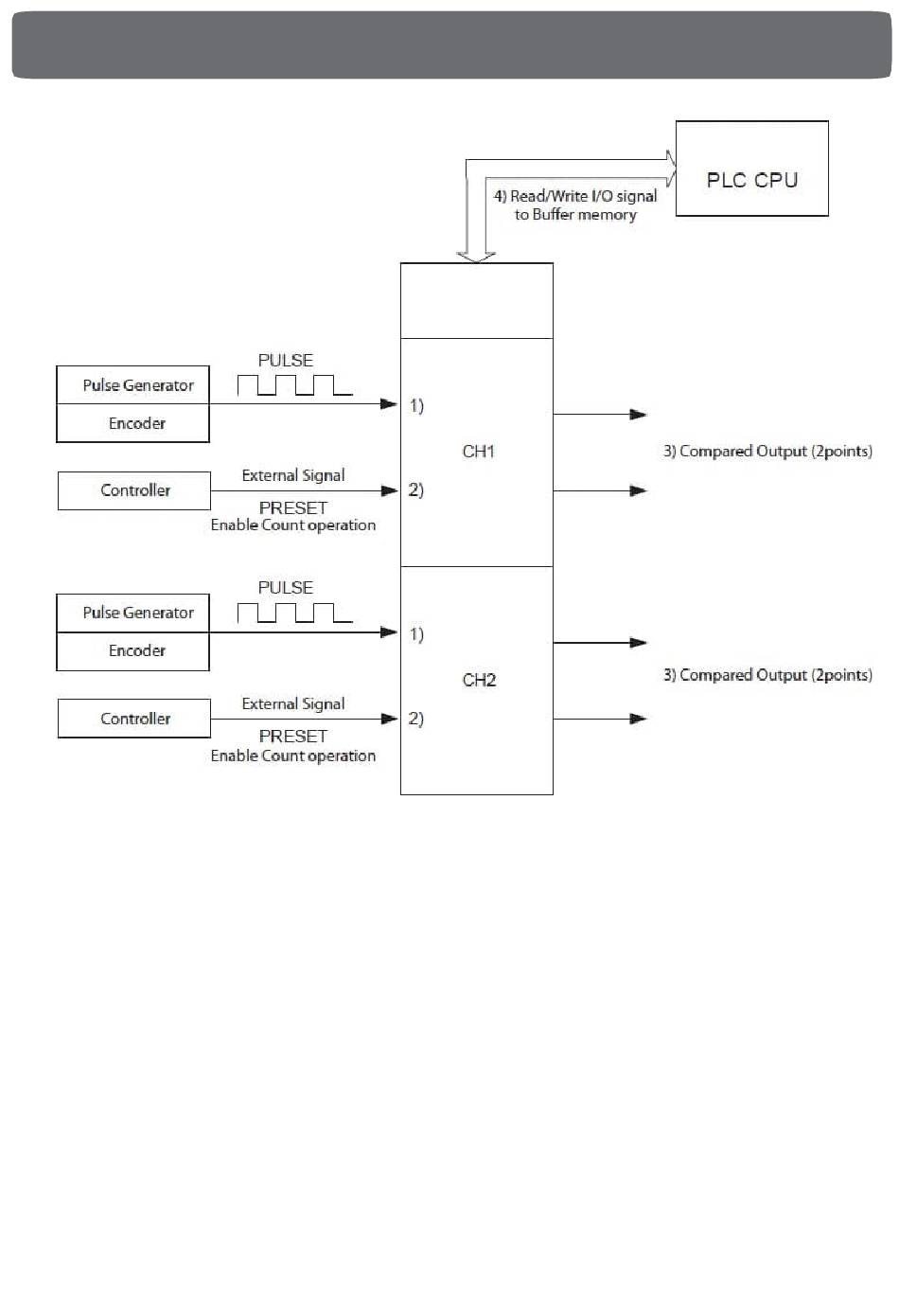

Operation Concept
1) Count incoming pulse.
2) Preset and enable count operation can be operated by the external signal.
3) Compare the present count value with the compared value and turn Output Compare ON or
OFF. (2 points per channel)
4) By using scan program, it's possible to check the I/O signal and buffer memory.
- 10 -
