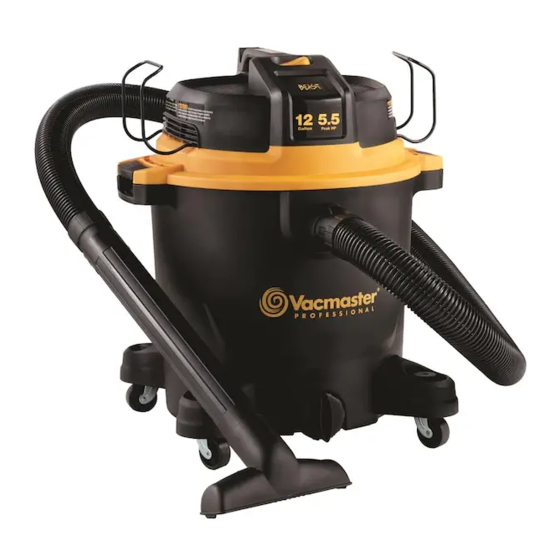

Wet/Dry Vacuum
Operator's Manual
12 Gallon
Model No.
VJH1211PF 0203
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual for future reference.
Distributed By
Cleva North America, Inc.
Replacement Filters &
601 Regent Park Court
Accessories available at:
Greenville, SC 29607
Vacmaster.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VJH1211PF 0203 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vacmaster VJH1211PF 0203

Summary of Contents for Vacmaster VJH1211PF 0203

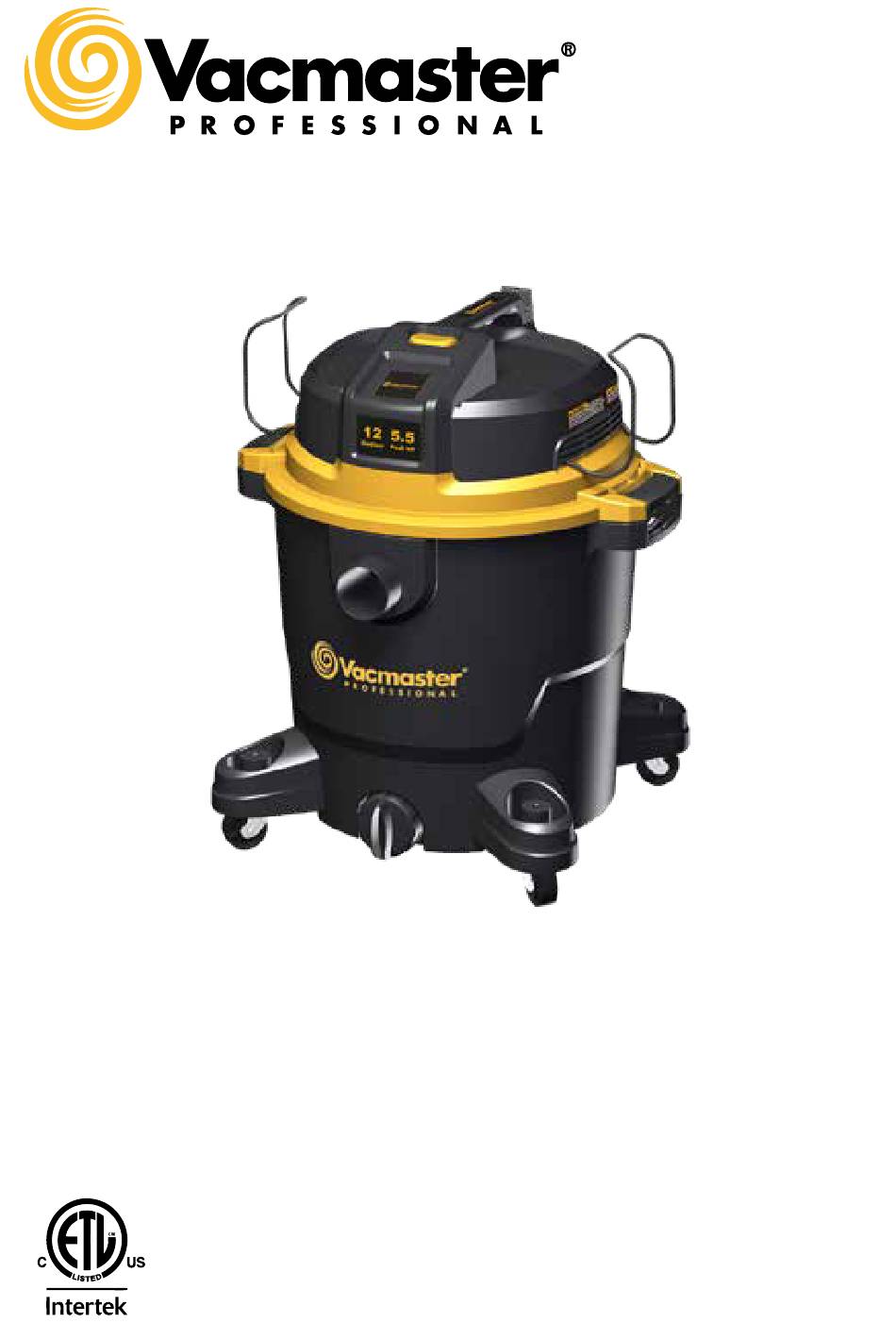

  • Page 1 Wet/Dry Vacuum Operator’s Manual 12 Gallon Model No. VJH1211PF 0203 FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. Distributed By Cleva North America, Inc. Replacement Filters & 601 Regent Park Court Accessories available at: Greenville, SC 29607 Vacmaster.com...

  • Page 2: Table Of Contents

    FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS. WARRANTY ® We take pride in producing a high quality, durable product. This Vacmaster product carries a limited five (5) year warranty against defects in workmanship and materials from date of purchase under normal household use.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM. Read and understand this operator’s manual and all labels on the vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works.

  • Page 4: Double Insulation Instructions

    CAUTION: To reduce the risk of injury from moving parts - Unplug before servicing. WARNING: To reduce the risk of electric shock - Unplug before cleaning or servicing. When using as blower: • Direct air discharge only at work area. •...

  • Page 5: Extension Cords

    EXTENSION CORDS When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner.

  • Page 6: Unpacking & Checking Carton Contents

    UNPACKING & CHECKING CARTON CONTENTS Remove all contents from the box. Remove the power head and take out any contents inside the collection tank. Check each item against the carton contents list. Carton Contents List: Description ........Qty. Vacuum Assembly ......... 1 Hose...

  • Page 7: General Assembly Instructions

    GENERAL ASSEMBLY INSTRUCTIONS A Philips head screw driver is required. WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE SURE THE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN. UNPACKING YOUR WET/DRY VACUUM &...

  • Page 8: Dry Vacuum Operation

    CAPTURED BY THE FILTER AND MAY CAUSE DAMAGE TO MOTOR. WHEN VACUUMING FINE DUST USE A FINE DUST FILTER (INCLUDED).TO PURCHASE ADDITIONAL FINE DUST ® FILTERS, CALL 1-866-384-8432 OR GET THEM AT YOUR LOCAL OR ONLINE VACMASTER RETAILER. 1. Verify that the power cord is disconnected from the outlet (Fig. 1).

  • Page 9: Liquid Vacuum Operation

    not to damage the bag. 5. Place the power head back on the collection tank, aligning the top section with the latches, and lock into place (Fig. 5). OPERATING INSTRUCTIONS: DRY VACUUMING 6. Insert the locking end of the hose into the vacuum port and turn to lock into place (Fig. 6). 7.

  • Page 10: Blower Operation

    6. Once you have completed vacuuming, flip the on/off switch to the 'O' (OFF) position and unplug the power cord from the outlet. 7. After use, empty the collection tank by unscrewing the drain cap. Drain liquids into a suitable receptacle or drain (Fig.

  • Page 11: Maintenance

    MAINTENANCE EMPTYING THE COLLECTION TANK WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING THE POWER HEAD FROM COLLECTION TANK. 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Disconnect the hose from the vacuum (Fig. 2). 3.

  • Page 12: Installing & Cleaning Cartridge Filter

    INSTALLING & CLEANING CARTRIDGE FILTER INSTALLING CARTRIDGE FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the power head and place in an upside down position. 3. Install the cartridge filter over the filter cage making sure the cage is completely covered. Carefully push filter in until it stops against the power head (Fig.

  • Page 13: Troubleshooting

    TROUBLESHOOTING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION Check the power supply, cord, No power supply. breakers, and fuses. Unplug and check the power The wet/dry vacuum will not Faulty power cord. cord.

  • Page 14: Exploded View

    EXPLODED VIEW...

  • Page 15: Parts List

    PARTS LIST Part Drawing Number Description Quantity 551006102 Hose Storage Rack Power Head Assembly 551006103 Float 551005104 Filter Cage Collection Tank 551006107 Vacuum Port Assembly 551006106 Vacuum Port Cover 551002110 Drain Cap Assembly 551006109 Caster Foot Assembly 551004104 Filter Retainer VCFF Cartridge Filter 551060104...
