EDIFIER TWS5 - Truly Wireless Stereo Earbuds Manual

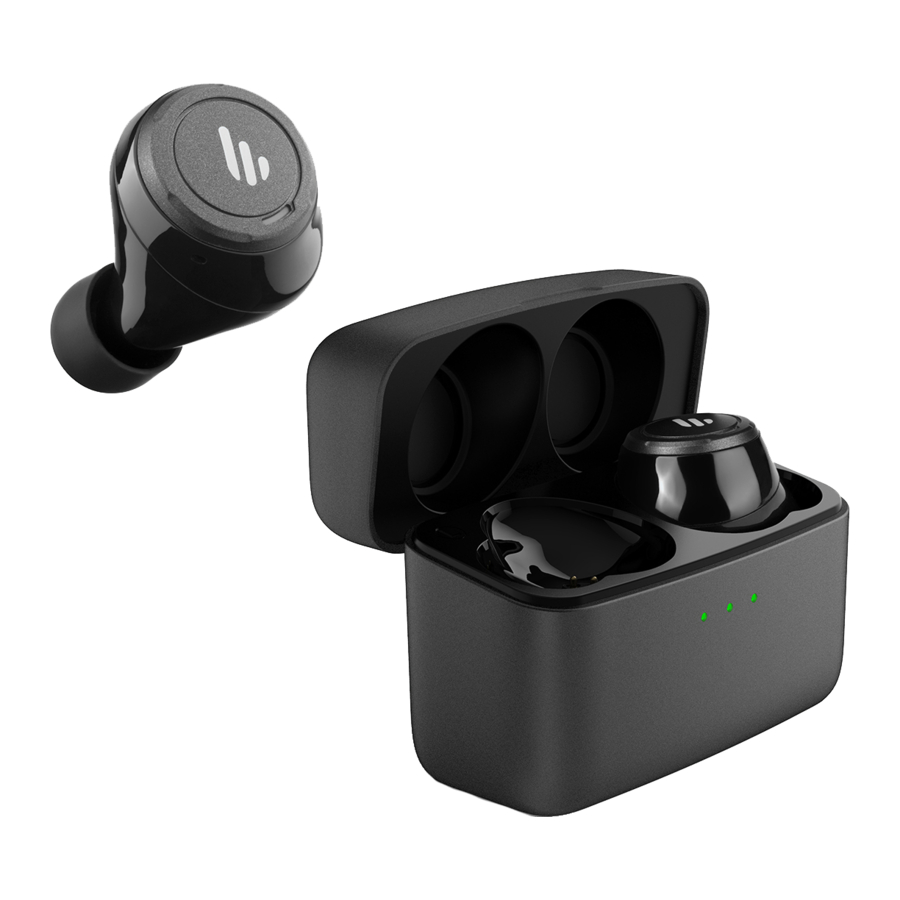

Product Description and Accessories

There are different size of ear tips attached in the package, please select the suitable ones to wear.
Note: Images are for illustrative purposes only and may differ from the actual product.

User Guide

Charge the Earbuds

During using, if only red light flashes, it indicates the earbuds are at low battery level, please use them after fully charged.
Charging: place the earbuds in the charging case
Red light lit = charging
Red light off = fully charged
Charging time: around 2 hours for a full charging

Charge the Charging Case

Green lights of the charging case indicate the battery capacity:
When the green lights are all lit, the charging case can charge earbuds three times;
When only the leftmost green light is lit, it indicates the charging case is at low battery level, please charge it in time; the green lights will be all lit after fully charged.

Rated input: 5V 60mA(earbuds)
5V 500mA(charging case)

The rechargeable batteries that provide power for this product must be disposed properly for recycling. Do not dispose of batteries in fire to prevent an explosion.

Power ON/OFF

1. Power on automatically when taken out from the charging case;
2. Power off automatically while placed in the charging case.

Bluetooth Connection

1. Two Earbuds Mode
   • Open the charging case to take two earbuds out, they will automatically turn on and make interconnection;
   • Press and hold the multi-function button of the left earbud to enter pairing state, the red and blue lights will flash rapidly;
   • Set mobile phone to search and connect to "EDIFIER TWS5", after pairing is successful, the blue light will flash slowly.
2. One Earbud Mode
   If uses one earbud only, please take the left or right earbud out of the charging case, and refer to the procedures mentioned in "Two Earbuds Mode"to pair it with mobile phone.

TWS Pairing of the Left and Right Earbuds

The left and right earbuds have finished TWS pairing before leaving factory. If the wireless connection fails to resume, please follow the steps below to re-pair:

1. When there is no TWS connection, respectively double click the multi-function button of the left and right earbuds to enter TWS pairing state, the blue light will flash rapidly;
2. After pairing is done, blue lights of both earbuds will flash slowly.

Functional Operation Instructions

Music Playback

Previous track: double click the left earbud (disabled for One Earbud Mode)
Next track: double click the right earbud (disabled for One Earbud Mode)
Pause/play: single click

Call

• Clear pairing records: when with no Bluetooth and TWS connection, press and hold the multi-function button for 8 seconds.
• Disconnect from mobile phone: when the phone is connected, no music is playing and no phone conversation, press and hold the multi-function button for 3 seconds.

FAQs

Red light instead of blue light flashes.

• The earbuds are at low battery level, please recharge the earbuds.

Red light is off during charging.

• Ensure the earbuds are correctly placed in the charging case.
• When the earbuds have not been used for long periods of time, the battery will enter sleep state, it needs to charge about 30 minutes and then the red light will be lit.

No sound

• Check if the earbuds are operating.
• Check if the earbuds volume are at an appropriate level.
• Check if the earbuds are correctly connected with mobile phone.
• Check if the earbuds are operating within a normal working range.

The call quality of the earbuds are not good.

• Check if mobile phone is in an area with strong signal.
• Ensure the earbuds are within effective distance (10m) and no obstacle between the earbuds and mobile phone.

When playing music, cannot control pause/play/previous track/ next track via the earbuds.

• Ensure the paired device support AVRCP (Audio Video Remote Control Profile) profile.

Maintenance

• Keep the product away from humid places to avoid affecting internal circuit. Do not use the product during intense exercise or with much sweat to prevent sweat from dropping into the product to make damage.
• Do not put the product in places exposed to sun or with high temperature. High temperature will shorten service life of electronic components, damage battery and make plastic components deformed.
• Do not put the product in cold places to avoid damaging internal circuit board.
• Do not dismantle the product. Non-professional personnel may damage the product.
• Do not drop, strongly vibrate, strike the product with hard object to avoid damaging internal circuit.
• Do not use drastic chemicals or cleaner to clean the product.
• Do not use sharp objects to scratch product surface to avoid damaging shell and affecting facade.
