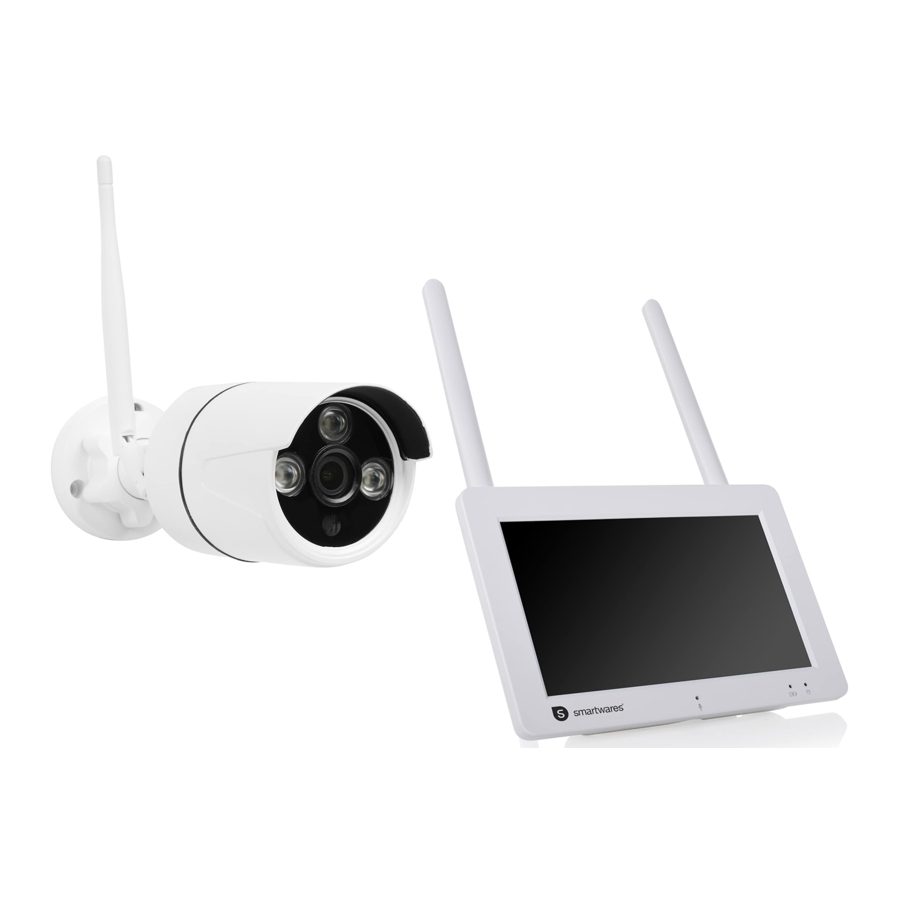

Smartwares CMS-30400 Quick Start Guide

Table of Contents

PARTS DESCRIPTION

PARTS DESCRIPTION - Main unit

PARTS DESCRIPTION - Monitor

The cameras are plug and play, they are already pre-paired to the recorder.

Connect the monitor to the power supply by inserting AC adapter.
Optional: Insert a MicroSD card (not included) in the slot on the right side of the monitor.
Screw the antenna onto the camera.
Connect the AC adaptor from the camera (7) to the power port (6) and plug it in to a socket.
NOTE: Before mounting the camera to the wall, first check if the wireless distance to the monitor is sufficient.

The on screen menu appears when you tap in the video feed.

No:	Button	Description
1	Speaker	Select to mute/unmute the monitor speakers
2	Home	Select to enter the main menu
3	Zoom	Select to Zoom the video feed. Tap once to select the zoom mode. Tap again in the image to zoom. Select the (-) icon to exit the zoom mode.
4	Playback	Select to enter the Playback menu. This will allow you to view recordings.

Do the procedure below to enable the wireless internet connection. This feature is optional but it enables you to use the following features:

Make sure that you have an internet connected WIFI router, your password and router name (SSID) available.
From the main menu: Select "System Setup".
Select "Wireless Internet".
Enable WLAN.
Select "Hotspot list".
Find and select your wireless router.
Type your password.
NOTE: Only 2.4GHz networks are supported
Download the "SW360" app.
Open the app, register as a new user and follow the instructions given in the app.

The monitor can pair up to 4 cameras.

Turn the camera on by connecting it to the mains supply.
Wait for 30 seconds.
You will now hear: "Start configuration mode".
NOTE: if you don't hear the voice, press the re-set button on the camera for 6 seconds until you hear "Restore factory setting".
On the monitor from the main menu: Select "Add Camera".
Select "Add Camera".
On the camera: If the above steps are done correctly, you will hear:
