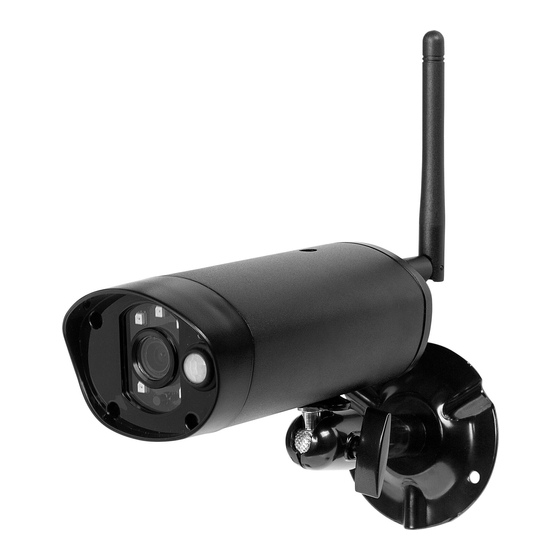

Smartwares C995IP Installation And Operating Instructions Manual

Wireless app camera
Hide thumbs Also See for C995IP:
Table of Contents

Advertisement

Quick Links

Download this manual
Wireless APP Camera
Installation and Operating Instructions
Model: C995IP
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
cerca il tuo prodotto tra le
migliori offerte di Videosorveglianza
AND KEEP THIS MANUAL FOR FUTURE REFERENCE.
Smartwares C995IP
o

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C995IP and is the answer not in the manual?

Questions and answers

Related Manuals for Smartwares C995IP

Summary of Contents for Smartwares C995IP

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Smartwares C995IP cerca il tuo prodotto tra le migliori offerte di Videosorveglianza Wireless APP Camera Installation and Operating Instructions Model: C995IP PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT...
  • Page 2 The C995IP camera is capable of delivering high quality Digital High Definition (HD) video to your smart-mobile device(s), which would require higher internet bandwidth. Due to your local internet environment condition, your mobile device(s) may display black-screen or temporary disconnect to the C995IP camera.

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION ....................2 WIRELESS DEVICES OPERATING RANGE ............2 IMPORTANT SAFETY PRECAUTIONS ..............2 KIT CONTENT ....................4 SAFETY AND INSTALLATION TIPS ..............5 NIGHT VISION ......................6 CAMERA INSTALLATION ..................6 CAMERA OVERVIEW ..................7 DOWNLOAD AND SETUP THE APP ............... 8 LIVE VIEW / SNAPSHOT / RECORDING ............

  • Page 4: Introduction

    INTRODUCTION PLEASE READ BEFORE YOU START Always use discretion when installing CCTV equipment, especially when there is perceived policy. Enquire relevant local regulations applicable to the lawful installation of video recording/ surveillance. Third party consent may be required. WIRELESS DEVICES OPERATING RANGE Ensure the signal reception viewed from the wireless camera(s) is the best possible reception between the camera(s) and the Wi-Fi router.
  • Page 5 FCC Compliance Statement: This Products with CE Marking comply device complies with Part 15 of the with EMC Directive (2014/30/EU); FCC rules. Operation is subjected to Low Voltage Directive (2014/35/ the following two conditions: (1) this E U ) ; R E D ( 2 0 1 4 / 5 3 / E U ) ; R O H S device may not cause harmful interference, and (2) this Directive (2011/65/EU) issued by the Commission device must accept any interference received, including...

  • Page 6: Kit Content

    KIT CONTENT Wireless App Camera Camera Stand Camera Antenna Power Adapter Screw Pack Quick Start Guide Tools Required: ‧Electric drill ‧5mm masonry drill bit ‧15mm masonry drill bit ‧No. 2 Philips screwdriver For best system performance: - iOS: iPhone5 / iPad2 / Mini iPad with iOS 7.0 or above. - Android: 1.5G dual core processor dual core procesor with 1G Ram or above.

  • Page 7: Safety And Installation Tips

    SAFETY AND INSTALLATION TIPS Do not attempt to open the units with the power adaptor plug connected to avoid any risk of personal injury. When installing CCTV camera(s), always follow manufacturer's advice when using power tools, steps, ladders, etc. and wear suitable protective equipment (e.g. safety goggles) when drilling holes.

  • Page 8: Night Vision

    NIGHT VISION The camera has built-in infrared LEDs to allow you to view at night for 24-hour surveillance. The LEDs will automatically activate at night and the picture viewed will turn to black and white. The night viewing range is up to meters. CAMERA INSTALLATION Secure camera stand on the stable surface.

  • Page 9: Camera Overview

    CAMERA OVERVIEW Antenna Infrared LEDs Power Indicator Signal Indicator Light Sensor Motion Sensor Camera Stand SMA Connector Power Cable/Reset Button Memory Card Slot & RJ45 Connector...

  • Page 10: Download And Setup The App

    The Wireless APP camera is designed to deliver live video footage directly to your smart phone or tablet device. Please follow these steps to download, setup and use the APP. Download the App Download and install the "Smartwares view" APP to your device. For iOS For Android APP Setup △...
  • Page 11 1. Make sure the mobile device you are using is connected to the same Wi-Fi router the camera is connected to. 2. Locate the “Smartwares view” icon in your mobile device and launch the App. 3. Tap the ADD CAMERA icon to add a new camera. Then click the SEARCH button for a quick setup.
  • Page 12 Note: Most Wi-Fi routers broadcast the Service Set Identifier (SSID) by default. This is the name of your wireless network, and SSID broadcasting is how Wi-Fi-enabled devices find networks.

  • Page 13: Live View / Snapshot / Recording

    LIVE VIEW / SNAPSHOT / RECORDING Tap to take snapshot image(s) of the video. The captured snapshots will be stored in your mobile device. Tap to turn ON/OFF the volume. Tap to Start/Stop recording. The recorded video file will be stored in the memory card of your camera. Tap to return to the main page.
  • Page 14 When you launch the App on the smart phone or tablet, the image displaying on the main screen is the very last automatically captured snapshot of the live view of the previous established session. Tap the image to enter the live view mode. The controls and layout of the APP have been customized to meet the operating system requirements of the mobile device.

  • Page 15: Viewing Your Snapshots

    VIEWING YOUR SNAPSHOTS For iOS You snapshots will be named with the time stamp and saved into the Camera Roll location of your mobile device. For Android You snapshots will be named with the time stamp and saved into the Photo Gallery > snapshot folder on your mobile device.
  • Page 16 Tap EVENT LIST icon and the Date-Time filter would appear. User may define the period for system to display all available recorded file(s) for playback. During the playback, tap the PAUSE icon to pause / resume the video. MUTE to deactivate/ activate the audio function and tap the BACK icon to return to the event list section.
  • Page 17 To Download / Delete the video file(s) in the EVENT LIST section, please follow the steps below: ‧DOWNLOAD Long press the video clip to download the file onto your movbile device. Note: During the download process, the system will stop both the live view and recording functions.
  • Page 18 This function helps user to easily withdraw the recorded file(s) from the memory card. It is strongly suggested to download the file(s) at your home Wi-Fi network (WLAN), meaning the mobile device(s) is connecting to the same Wi-Fi router as the camera. Minimum bandwidth requirment is 1Mbps (upload/ download).

  • Page 19: Main Page Overview

    MAIN PAGE OVERVIEW The MAIN PAGE section offers user an overview for all registered camera(s), including camera status (connected/disconnected). User can quickly access the camera(s) in the list. When multiple cameras are registered, scroll down to locate the registered camera for access. (iOS) (Android) ADD CAMERA...
  • Page 20 4. Enter the default password 123456 in the Security Code column. (iOS) (Android) 5. Click SAVE to complete the camera settings. The APP attempts to establish camera connection. Once the camera is successfully connected, the “Connected” status will be shown on the left upper corner.
  • Page 21 In the CAMERA SETTING section you will allow to (1) configure system setting, (2) unregistered camera from the APP and (3) enter event list for recorded video file(s) playback. Tap the CAMERA SETTING icon to enter/exit CAMERA SETTING. Tap the CAMERA SETTING icon. The following icons appear on the panel. (Android) (iOS) Tap the ADVANCED SETTING icon to setup camera configuration.
  • Page 22 If you forgot your PIN code, please uninstall the APP and reinstall it on the mobile device. NOTIFY (PUSH NOTIFICATION) The C995IP camera supports motion detection function. When any event is detected in the camera site, you’ll receive push notification on the mobile devices for the event recognized by the camera.
  • Page 23 For Android If you want to enable/disable it, please follow the steps below. Note: The internet connection and wireless network interference may influence the performance of push notification service. ABOUT APP/API Version Info Tap the ABOUT icon to check the APP Version when necessary. (iOS) (Android)

  • Page 24: Advanced Setting

    This chapter explains the advanced settings for administrator. The administrator is the one who owns the administration password and has the full control to the C995IP camera. The administrator can access all C995IP functions and settings, while general users can receive the surveillance images for live view/screen capture/video recording and may not manage the camera settings.

  • Page 25: Admin Password

    ADMIN PASSWORD The Admin Password is a specific security code for the administrator to change the advanced settings. The default admin password is 123456. Please use this function to change the default admin password into your personal admin password. For the protection of your system configuration, every time you change the advanced settings, you need to enter the admin password.

  • Page 26: Time Zone

    TIME ZONE The drop-down list shows the world time zone. Select the time zone that will work the best for you. If your date/time is during the daylight saving time period, please check the Daylight Saving box to adjust the system time properly. DAYLIGHT SAVING Activate/Deactivate the daylight saving function.

  • Page 27: Wi-Fi Setting

    Please re-launch the APP when you see the green signal indicator lights up. 2. The C995IP camera is designed to work with the legal Wi-Fi channels in your region. Please refer to your Wi-Fi router manual to choose an appropriate channel for C995IP camera.

  • Page 28: Sensitivity Setting

    SENSITIVITY SETTING This defines the camera parameter for motion detection. Detection Mode PIR is hardware-based biomass detection. SOFTWARE use advanced software analysis to trigger motion alarm. In general, the performance of any PIR depends on the environment, especially the temperature. At low temperature the accuracy of PIR may suffer.

  • Page 29: Sd Card Setting

    This function allows you to save the following customized settings of the camera. This is useful if you want to apply the same settings to another C995IP camera quickly. You won’t have to make all settings for each camera manually.

  • Page 30: Trouble Shooting

    TROUBLE SHOOTING SOLUTION The APP can not find the ‧ Make sure your network supports the DHCP protocol. camera ‧ Make sure the camera and your mobile device connect to the same Wi-Fi router for the first setting. ‧ Make sure the Wi-Fi router is activated. ‧...
  • Page 31 The APP can not ‧ Make sure the SD card has been correctly inserted record any video clips ‧ Make sure the motion detection function has been enabled. (please refer to the Sensitivity Setting section). ‧ Please format the SD card when it is used for the first time (please refer to the SD Card Format section) ‧...
  • Page 32 Wrong data and time are ‧ Wrong date and/or time will result in unexpected record schedule. shown Make sure you’ve selected the correct time zone (please refer to the Time Zone section). ‧ Confirm the system date/time of the mobile device to ensure correct operation.

  • Page 33: Product Specification

    PRODUCTION SPECIFICATION Networking Parameter Wireless Technology IEEE 802.11 b/g/n Network Connection Ethernet (10/100 Base T/Base-TX) and Wi-Fi Network Protocols TCP/IP, UDP, SMTP, NTP, DHCP, ARP Simultaneous Viewers 3 concurrent sessions Security WPA /WPA2/WPA2-PSK (TKIP, 128 bit AES) Camera Parameter Image Sensor 1/3”...

  • Page 34: Storage Media Management

    STORAGE MEDIA MANAGEMENT Micro SD Card Capacity HD/Better Image (Class 10) 1,600 3,200 128G 6,400...

  • Page 35: Appendix: Compatible List

    APPENDIX: COMPATIBLE LIST WiFi Compatible Router List Brand Product Name ASUS RT-N53 BUFFALO WIR-HP-C300NH2 BUFFALO WZR-HP-G450 Cisco ERT120 D-Link DIR-816L Huawei WSR20 INTELBRAS WRN300 NETGEAR Wndr3700v4 NETGEAR WGR614 Tenda FS395 TP-link TL-WR941N...
