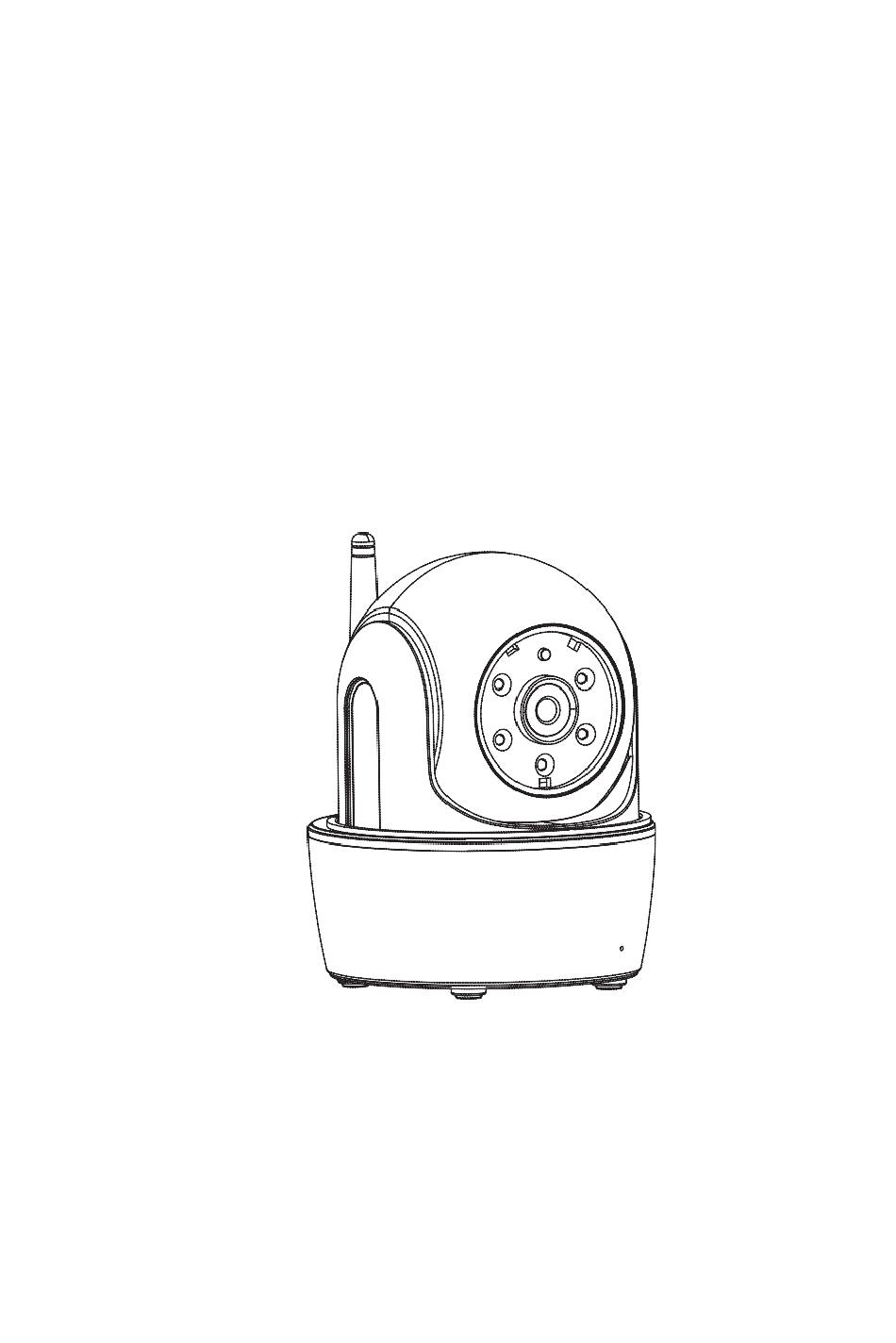

- Page 1 Wireless Pan/Tilt APP Camera Installation and Operating Instructions Model: C734IP – 10.021.38 Version 1.1 PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT AND KEEP THIS MANUAL FOR FUTURE REFERENCE.
- Page 2 The state of art WAPP camera is capable of deliver high quality Digital High Defi (HD) video to your smart-mobile device(s), which would require higher internet bandwidth. Due to your local internet environment condition, your mobile device(s) may display black-screen or temporary disconnect to the WAPP camera.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION WIRELESS DEVICES OPERATING RANGE IMPORTANT SAFETY PRECAUTIONS KIT CONTENT SAFETY AND INSTALLATION TIPS NIGHT VISION CAMERA OVERVIEW DOWNLOAD AND SETUP THE APP LIVE VIEW / SNAPSHOT / RECORDING VIEWING YOUR SNAPSHOTS PLAYBACK YOUR VIDEOS MAIN PAGE OVERVIEW ADVANCED SETTING ADMIN PASSWORD EMAIL ALERT TIME ZONE... -
Page 4: Introduction
INTRODUCTION PLEASE READ BEFORE YOU START Always use discretion when installing CCTV equipment, especially when there is perceived policy. Enquire relevant local regulations applicable to the lawful installation of video recording/surveillance. Third party consent may be required. WIRELESS DEVICES OPERATING RANGE Ensure the signal reception viewed from the wireless camera(s) is the best possible reception between the camera(s) and the Wi-Fi router. - Page 5 FCC Compliance Statement: This Products with CE Marking comply with device complies with Part 15 of the EMC Directive (2004/108/EC); Low FCC rules. Operation is subjected Voltage Directive (73/23/EEC); to the following two conditions: (1) R&TTE(1999/5/EC); ROHS Directive this device may not cause harmful interference, (2011/65/EU) issued by the Commission of the and (2) this device must accept any interference European...
-
Page 6: Kit Content
KIT CONTENT Quick Start Guide Tools Required: ‧Electric drill ‧5mm masonry drill bit ‧15mm masonry drill bit ‧No. 2 Philips screwdriver For best system performance: iOS: iPhone5 / iPad2 / Mini iPad with iOS 7.0 or above. Android: 1.5G dual core processor dual core procesor with 1G Ram or above. Storage: Class 10 memory card. -
Page 7: Safety And Installation Tips
SAFETY AND INSTALLATION TIPS Do not attempt to open the units with the power adaptor plug connected to avoid any risk of personal injury. When installing CCTV camera(s), always follow manufacturer's advice when using power tools, steps, ladders, etc. and wear suitable protective equipment (e.g. -
Page 8: Night Vision
NIGHT VISION The camera has built-in infrared LEDs to allow you to view at night for 24-hour surveillance. The LEDs will automatically activate at night and the picture viewed will turn to black and white. The night viewing range is up to 5 meters. -
Page 9: Camera Overview
CAMERA OVERVIEW Light Sensor Infrared LEDs Microphone Micro SD Lan Port Reset Status LED Antenna Power... -
Page 10: Download And Setup The App
DOWNLOAD AND SETUP THE APP The Wireless APP camera is designed to deliver live video footage directly to your smart phone or tablet device. Please follow these steps to download, setup and use the APP. APP Name: OMGuard HD Download the App 1. - Page 11 APP Setup Make sure the mobile device you are using is connected to the same Wi-Fi router the camera is connected to. Locate the “OMGuard HD” icon in your mobile device and launch the App. Tap the ADD CAMERA icon to add a new camera. Then click the SEARCH button for a quick setup.
- Page 12 Note: Most Wi-Fi routers broadcast the Service Set Identifier (SSID) by default. This is the name of your wireless network, and SSID broadcasting is how Wi-Fi-enabled devices find networks. The camera will only accept SSID composed with English alphabet charactors and arebic numbers, none-English and special charactors (!@#$%, ect.) will not be accepted.
-
Page 13: Live View / Snapshot / Recording
LIVE VIEW / SNAPSHOT / RECORDING Tap to take snapshot image(s) of the video. The captured snapshots will be stored in your mobile device. Tap to turn ON/OFF the volume. Tap to Start/Stop recording. The recorded video file will be stored in the memory card of your camera. Tap to set/move camera to default position Tap and hold the icon to send the voice to remote device (Push To Talk) -
Page 14: Viewing Your Snapshots
VIEWING YOUR SNAPSHOTS For iOS You snapshots will be named with the time stamp and saved into the Camera Roll location of your mobile device. For Android You snapshots will be named with the time stamp and saved into the Photo Gallery >... - Page 15 Tap EVENT LIST icon and the Date-Time filter would appear. User may define the period for system to display all available recorded file(s) for playback. During the playback, you can tap the PAUSE icon to pause / resume the video, MUTE to deactivate/activate the audio function and GO BACK icon to return to the event list section.
- Page 16 To Download/Delete the video file(s) in the EVENT LIST section, please follow the steps below: DOWNLOAD Long press the video clip to download the file onto your mobile device. Note: During the download process, system will stop both the live view and recording functions.
- Page 17 This function helps user to easily withdraw the recorded file(s) from the memory card. It is strongly suggested to download the files at your home Wi- Fi network (WLAN), meaning the mobile device(s) is connecting to the same Wi-Fi router as the camera. Minimum bandwidth requirment is 1Mbps (upload/ download).
-
Page 18: Main Page Overview
MAIN PAGE OVERVIEW The MAIN PAGE section offers user an overview for all registered camera(s), including camera status (connected/disconnected). User can quickly access the camera(s) in the list. When multiple cameras are registered, scroll down to locate the registered camera for access. - Page 20 In the CAMERA SETTING section you will allow to (1) configure system setting, (2) unregister camera from the APP and (3) enter event list for recorded video file(s) playback. Tap the CAMERA SETTING icon to enter/exit CAMERA SETTING. Tap the CAMERA SETTING icon. The following icons appear on the panel. (iOS) (Android) Tap the ADVANCED SETTING icon to setup camera configuration.
- Page 21 SETUP PIN LOCK (iOS) (Android) If you enable PIN Lock, the user will be asked to enter the PIN code when you launch the APP. Enable the “Enable lock when starting” function. Then enter your PIN code. Confirm your PIN code again. Note: If you forgot your PIN code, please uninstall the APP and reinstall it on the mobile device.
- Page 22 For Android If you want to enable/disable it, please follow the steps below. Note: The internet connection and wireless network interference may influence the performance of push notification service. ABOUT APP/API Version Info (iOS) (Android) Tap the ABOUT icon to check the APP Version when necessary.
-
Page 23: Advanced Setting
ADVANCED SETTING This chapter explains the advanced settings for administrator. Administrator is the one who owns the administration password and has the full control to the WAPP camera. The administrator can access all WAPP functions and settings, while general users can receive the surveillance images for live view/screen capture/video recording and may not manage the camera settings. -
Page 24: Admin Password
ADMIN PASSWORD The Admin Password is a specific security code for administrator to change the advanced settings. The default admin password is 123456. Please use this function to change the default admin password into your personal admin password. For the protection of your system configuration, every time you change the advanced settings, you need to enter the admin password. -
Page 25: Time Zone
TIME ZONE The drop-down list shows the world time zone. Select the time zone that will work the best for you. If your date/time is during the daylight saving time period, please check the Daylight Saving box to adjust the system time properly. -
Page 26: Wi-Fi Setting
Envi ronment Mode The Environment Mode settings allows you to select the power line frequency used at the location of WAPP camera. The power line frequency varies depending on geographic region. It may cause image flicker if wrong frequency is selected. Please check with local authorities for proper setting. -
Page 27: Sensitivity Setting
SENSITIVITY SETTING This defines the camera parameter for motion detection. Motion Detection (available for Software Mode ONLY) HIGH – Suitable for detecting smaller object(s) within 5 to 6 meters LOW – Suitable for detecting larger object(s) within 3 to 5 meters Note: The HIGH/LOW setting for Motion Detection only takes effect when user chooses “SOFTWARE”... -
Page 28: Sd Card Setting
SD CARD SETTING Formatting your memory card will ERASE all the data from it and you will not be able to get the data back. Please back up your video files BEFORE formatting the memory card. Note: The system is optimized to Class 10 memory card. Memory card with lower specification will decrease the recording and playback function efficiency. -
Page 29: Trouble Shooting
TROUBLE SHOOTING IF… SOLUTION Make sure your network supports the DHCP protocol. • The APP cannot Make sure the camera and your mobile device connect • found the camera to the same Wi-Fi router for the fi rst setting. Make sure the Wi-Fi router is activated. •... - Page 30 Wireless devices such as wireless home stereo system may • Low wireless signal reduce the signal strength. Leave as much space as Poor image quality possible between the camera/mobile device and these wireless devices. Clean the camera lens using lens cleaning cloth. Spots or •...
- Page 31 Bright white spots The camera's infrared LEDs produce invisible light that • appear at night time reflects off surfaces such as glass. Install the camera on the other side of windows or place the lens fl against the surface to improve the night vision. It is suggested to install camera(s) under well-lit area.
-
Page 32: Product Specification
PRODUCTION SPECIFICATION Networking Parameter Wireless Technology IEEE 802.11 b/g/n Network Connection Ethernet (10/100 Base-T/Base -TX); Wi-Fi Network Protocols TCP/IP, UDP, SMTP, NTP, DHCP, ARP Simultaneous Viewers 3 concurrent sessions Security WPA /WPA2/WPA2-PSK (TKIP, 128 bit AES) Camera Parameter Image Sensor Mega pixel CMOS Antenna 3dBi Dipole... -
Page 33: Storage Media Management
STORAGE MEDIA MANAGEMENT Micro SD Card Capacity Event Minutes (Class 10) 1760 1760...
