The following optional items are available. These optional items are available as of July 2020. Availability and part numbers vary by region and are subject to change without notice.
* Supplied with the BT-40S.

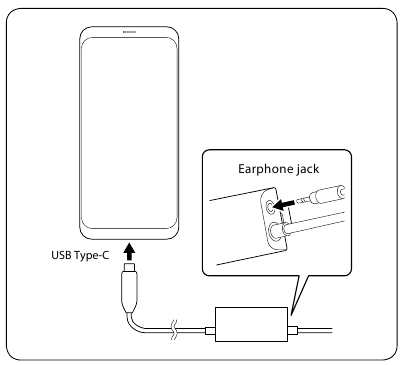

BT-40: Install the app "MOVERIO Link" on your smart device using Google Play.
BT-40S: Use "MOVERIO Link Pro" from the app list screen of the Intelligent Controller BO-IC400.
The following outlines the main features of the app.
Adjust the volume on your connected device.
You can view the screen easily by attaching the shade supplied. The shade is magnetic and can be attached and removed easily.

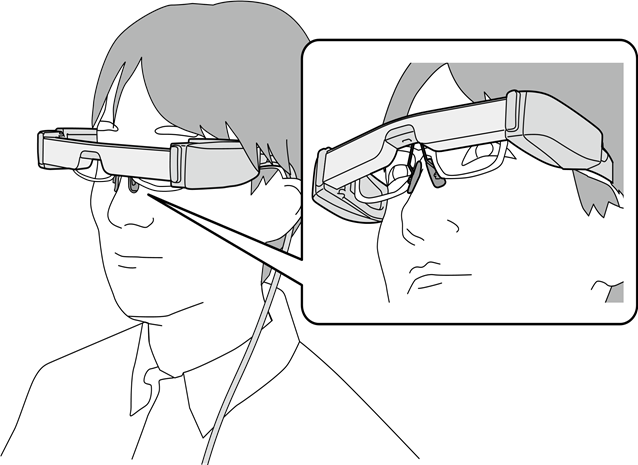

You can wear the headset even if you wear glasses.
The nose pad for glasses is worn on the nose from over the glasses.
When replacing the nose pad, be sure to purchase the option for the BT-40.

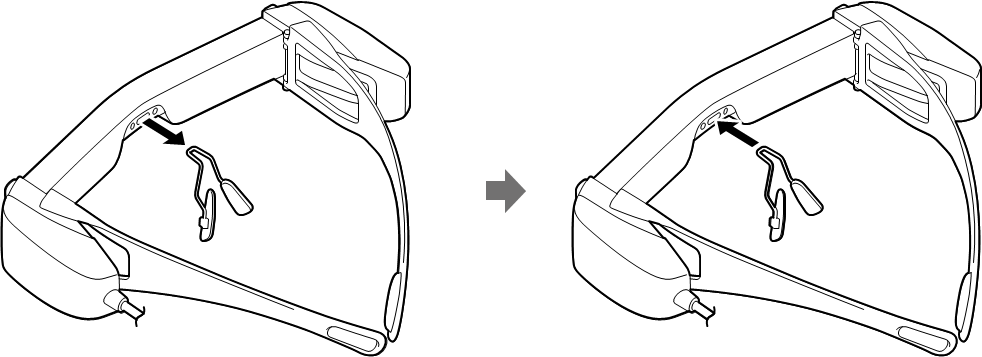

Pull the nose pad straight towards you to remove and replace them.

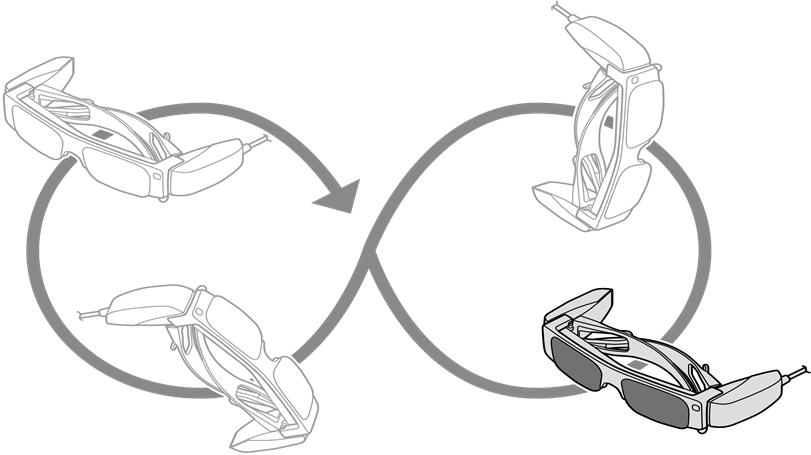

If the accuracy of the sensor is low in apps that use the headset's geomagnetic sensor, wave the headset in a figure 8 shape while a smart device or Intelligent Controller is connected to calibrate the sensor.
The following Website provides information on app development and firmware updates for this product.
https://tech.moverio.epson.com/en/
<For customers who have purchased the BT-40S>
For specifications of the supplied Intelligent Controller BO-IC400, see the "BO-IC400 User's Guide".
Model number | BT-40 (H969A) |
Display format | Si-OLED |
Panel size | 0.453" wide panel (16:9) |
Resolution | 1920 x 1080 |
Angle of view | Approximately 34 degrees (diagonally) |
Virtual screen size | 60" support (virtual viewing distance 2.5 m [8.2 feet]) |
Color reproduction | 24 bit color (approximately 16,770,000 colors) |
Connectors | USB Type-C, 4 pin mini jack (earphones with microphone complying with the CTIA standard)*1 |
Exterior dimensions (W x D x H) | 194 × 164 × 41 mm (7.6 × 6.5 × 1.6 inches) (without the shade) |
Mass | Approx. 165 g (5.8 ounces) |
Mass without the shade, cables, and so on | Approx. 95 g (3.4 ounces) |
Earphone output | Max. voltage 150 mVrms or less Voltage with broadband characteristics 75 mVrms or more |
Sensors | Geomagnetic sensor/accelerometer sensor/gyroscopic sensor/ambient light sensor |
Operating temperature | 5 to 35°C (41 to 95°F), humidity 20 to 80% (no condensation) |
Storage temperature | -10 to 60°C (14 to 140°F), humidity 10 to 90% (no condensation) |
Water resistance | IPX2 (except for USB port) |
Reliability Life span | 20,000 hours (based on our evaluation conditions*2, such as when the brightness of the screen drops below 50% of its initial level, indicating the point at which the product enters the wear out failure period. Screen burn-in does not indicate a malfunction.) |
Reliability Mean-Time Between Failure (MTBF) | 180,000 hours (Failure means a random failure during the random failure period.) |
*1 Restrictions in operation may occur, such as buttons not operating, even when using a compliant plug.
*2 The screen brightness was set to the default value of 12/20, and the evaluation movie with an average gradation of 98/255 was displayed continuously in an environment of 25°C. If the screen brightness (brightness setting and display gradation) is brighter than the evaluation conditions, the life span will be reduced.
Video Input
USB Type-C | Video interface | DisplayPort Alternate Mode (DP Alt Mode) |
Resolution (frame rate) | 1080 p (60 Hz) | |
HDCP | Supported |
Data Communication
USB Type-C | USB 2.0 | |
Supported operating systems | Windows | Windows 10 or later |
Android | Android 8 or later |
Power
USB Type-C | USB Power Delivery | |
Electricity consumption | Rated power consumption | 4.5 W |
Rated voltage/Rated current | 5.0 V/0.9 A |
Notes on Water Resistance
This product is IPX2-compliant with daily water resistance performance based on the IEC60529 standard. However, this does not include the USB Type-C connector. (This is not based on an evaluation by a third-party evaluator) <Water resistance level compliant with IPX2>
If the product is subjected to a dripping water test at a rate of 3 mm/minute for up to 10 minutes while the product is at an angle of 15 degrees, water does not enter the product and it can be operated normally.
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
