Installation Guide

Unpacking the interface

Open the cardboard box and take out the content. Check the interface module for any

visible transport damage and missing items. The following items should be included:

This installation guide

The interface module

The online CD-ROM (Ethernet only)

If you find any transport damage or if any accessories are missing, please contact your

dealer.

Make sure that the printer has been switched off and the power cord has been

removed from the printer.

Before you touch the interface module, be sure to touch a non-coated metal

surface (e.g. a radiator).

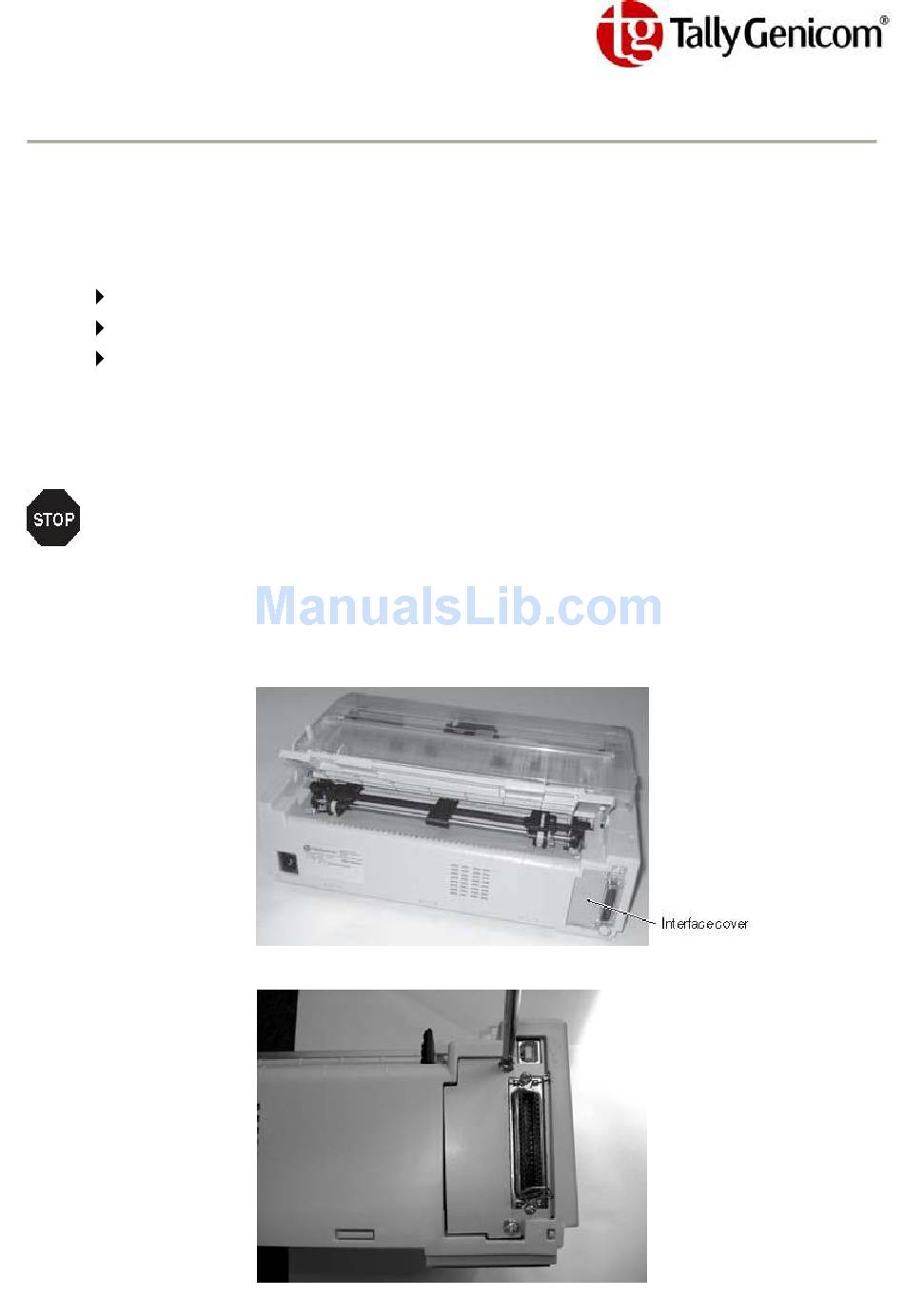

The interface connection for the optional interface is located at the rear of the printer,

on the left side (seen from the printers front). It is proteced by a cover.

1 Use a screwdriver to remove the two screws of the interface cover.

2440/2540 Ethernet/RS232

Table of Contents

Do you have a question about the 2440 and is the answer not in the manual?

Page 1 If you find any transport damage or if any accessories are missing, please contact your dealer. Installation of the interface Make sure that the printer has been switched off and the power cord has been removed from the printer. Before you touch the interface module, be sure to touch a non-coated metal surface (e.g.
Page 2 Slide the interface module into the guides and push it carefully into the printer until the connector of the interface module is properly seated into the socket. 4 Fasten the interface module with the two screws to the printer. The left example shows the RS232C interface, the right example the Ethernet interface.
Page 3 Signal Name For more information on interface specifications, refer to the User Guide on the Online CD-ROM delivered with the printer. Ethernet interface The Ethernet interface affords the printer to connect to local area networks. Its attributes are: Hardware Supported...
Page 4 IP address The IP address, subnet mask and gateway address can be set in the menu of the printer via the control panel. Printer LEDs The LEDs of the Ethernet signal different modes. Yellow only: The LED will blink once every second until an IP address is assigned.
