Mini DisplayPort to DVI Dual-Link Converter | USB Powered

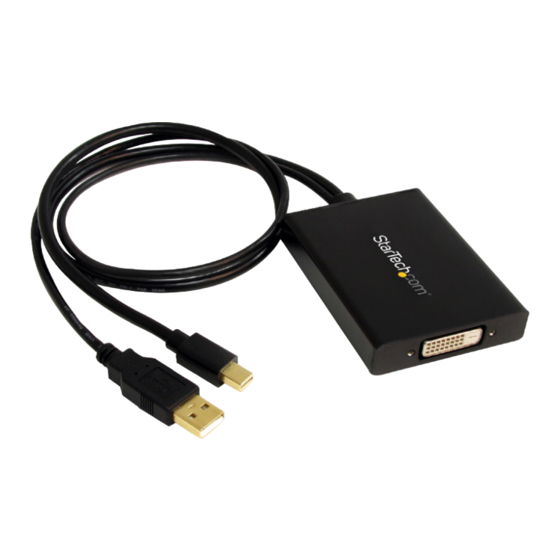

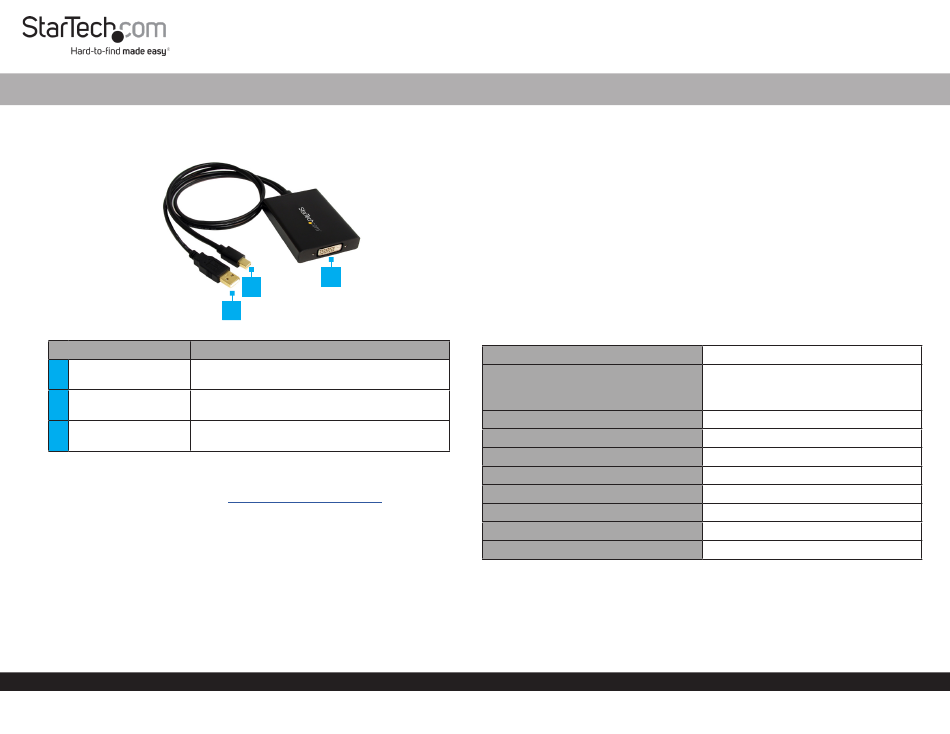

Product Diagram (MDP2DVID)
Component
• Used to connect the Adapter to the Host
1
USB-A Connector
Computer.
• Used to connect the Adapter to the Host
Mini DisplayPort
2
Computer's Video Card.
Connector
• Used to connect the Adatper to a Video
3
DVI-D Port
Display Device.
Requirements
For the latest requirements, please visit www.startech.com/MDP2DVID.
• Mini DisplayPort enabled video source (i.e. computer, laptop, etc)
• DVI-D enabled display device (i.e. monitor, projector, HDTV, etc)
• Available USB port on video source device
Installation
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3
2
1
Function
1. Make sure the video display device (i.e. monitor, projector, HDTV, etc) is turned off,
before connecting to the adapter.
2. Connect a standard male/male DVI-D cable from the MDP2DVID adapter to the
video display device. If using a screen resolution larger than 1920x1200, a dual-link
DVI cable is required.
3. Turn on the video display device.
4. Connect the Mini DisplayPort and USB connectors on the MDP2DVID adapter to
video source device (i.e. computer, laptop, etc). The computer can be on or off, as it
should be able to automatically detect and configure for the MDP2DVID.
5. Once the external display is detected and configured, the video output should be
visible on the display device. Some adjustments may be necessary from the video
source device's output settings for optimal viewing.
Specifications
Video Signal
Connectors
Maximum Video Resolution
HDCP Support
Integrated Cable Length
Operating Temperature
Storage Temperature
Humidity
Dimensions (LxWxH)
Weight
Quick-Start Guide
• DisplayPort 1.1
• Mini DisplayPort male x 1
• USB-A male x 1
• 25-pin Dual-Link DVI-D female x 1
• 2560x1600
• Yes
• 6 in
• 0°C ~ 70°C (32°F ~ 158°F)
• -10°C ~ 80°C (14°F ~ 176°F)
• 10% ~ 85 % RH
• 208.0mm x 160.0mm x 12.0mm
• 119 g
Manual Revision: March 28, 2019 1:31 PM
