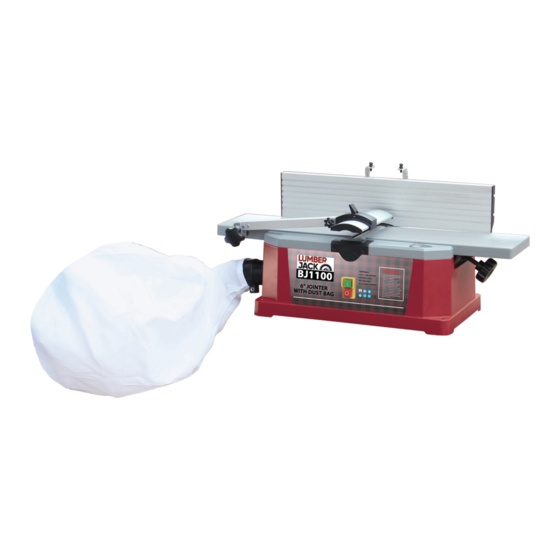

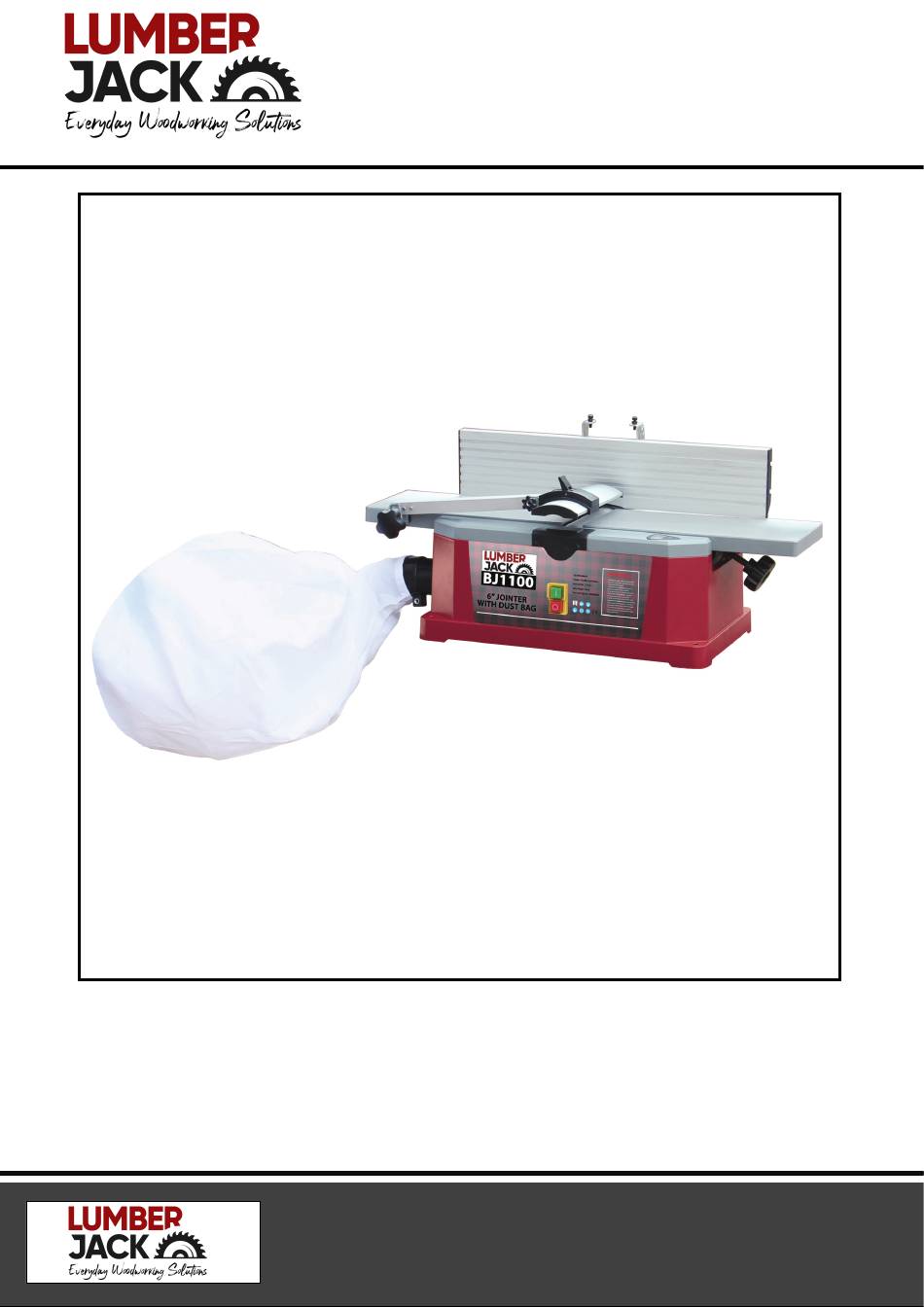

- Page 1 SAFETY AND OPERATING MANUAL 6" Bench Top Jointer BJ1100 ORIGINAL INSTRUCTIONS BJ1100...
- Page 2 PRODUCT SPECIFICATIONS Jointer / Planer Motor Power 1100W Max Cutting Width 153mm ( 6in ) Max Cutting Depth ( 1/8in ) Cutterhead Rotation Speed 10000 RPM Number of Blades 2 Blades Table Size 725 X 160mm ( 28-1/2 X 6-1/4 in ) Fence Size 530X110mm ( 21 X 4-1/4 in ) Dust Collection Port...
- Page 3 9. Dress properly. Do not wear loose clothing or jewelery, they can be caught in moving parts. Wear protective hair covering to contain long hair. Use safety glasses and hearing protection. Also use face or dust mask if the cutting operation is dusty. Disconnect tools.
- Page 4 CARTON CONTENTS UNPACKING AND CHECKING CONTENTS Carefully unpack the machine and all its parts, and compare against the illustration following. WARNING: To avoid injury from unexpected starting, do not plug the power cord into a power source receptacle during unpacking and assembly.
- Page 5 ASSEMBLY THE FENCE Align the T-slot on the fence to the nut Fence on fence support assembly, slide the fence onto the nut until the arc groove aligns Fence support center. Tighten the four flat head screws to fix the fence. Flat head screw Arc groove Remove the two socket pan head...
- Page 6 CHECK AND ADJUST THE FENCE ANGLE Before adjusting the fence, make sure the power is turn off. Using a combination square, check the 0º angle. If necessary adjust the 0º stop and set angle pointer at 0º. 0º stop Combination square Angle pointer Using the combination square, check the 45º...
- Page 7 INSTALL THE DUST CHUTE AND FILTER BAG Slide dust chute onto end of chip port. Tighten the pan head screw. Open the zipper on the bottom of the bag, place the spring inside of the filter bag arm. Slide the arm with the spring over the dust chute.
- Page 8 OPERATION INSTRUCTIONS Jointing is a surfacing operation in which a small amount of wood is removed from the edges and faces of boards to get smooth, straight and even surfaces such that the two edges that run across the planning blocks would fit together perfectly, forming a seamless joint. Planing refers to the sizing of lumber to a desired thickness while creating a level surface parallel to the opposite size of the board.
- Page 9 ADJUSTING BLADE HEIGHT CAUTION: Make sure the machine is unplugged before proceeding with checking blades. The blades have been adjusted at the factory to assure proper operation and should require no adjustment. However, shipping and handling may have caused misalignment. For accurate cutting, the blades must be as high as the out feed table when positioned at the highest point.
- Page 10 Feed with the grain whenever possible, if the nature of the work piece is such that it must be fed against the grain take very light cuts and feed slowly. When using long work pieces use extra supports at both end of the planer.
- Page 11 USING DUST COLLECTION HOSE A standard dust collection hose can be attached to the chip port underneath the out-feed table. The Jointer will perform properly at all depths of cuts up to 1/8 ″when used with a dust collecting system. To attach a dust collecting system: •...
- Page 12 BRUSH INSPECTION AND REPLACEMENT Turn planer off and disconnect from power source. Brush life depends on the amount of load the motor has taken. Regularly inspect brushes after 50 hours of use. To inspect or replace brushes, remove the bottom cover and disassemble the motor, loosen brush cap and remove it from the motor, replace bushes if springs are worn or carbon is worn down to 10mm in length or less.
- Page 13 PARTS LIST Description QTY. Description QTY. Fence sliding handle Support plate Flat washer Flat washer Sliding case Lock washer Hex head bolt Socket head screw Hex nut Elevation screw Fence tilting handle Hand wheel Flat washer Flat washer Carriage bolt Pan head screw Fence angle pointer Set screw...
- Page 14 Description QTY. Description QTY. Set screw Connecting bracket Drive belt Pointer house Fan belt Spring Cover Push bar Flat head screw Serrated washer Flat washer Lock washer Lock washer Flat washer Pan head screw Shaft Power cord Arm support Strain relief Flat washer Motor Arm locking knob...
- Page 15 EXPLODED VIEW...
- Page 16 TOOLSA VE LTD Unit C, Manders Ind. Est., Old Heat h Road, Wolverhampton, WV1 2RP. Declare that the product: Designation: 6" Bench Top Jointer Model: BJ1100 Standards & technical specifications referred to: Authorized Technical File Holder: Bill Evans 20/09/2023 The Director...
