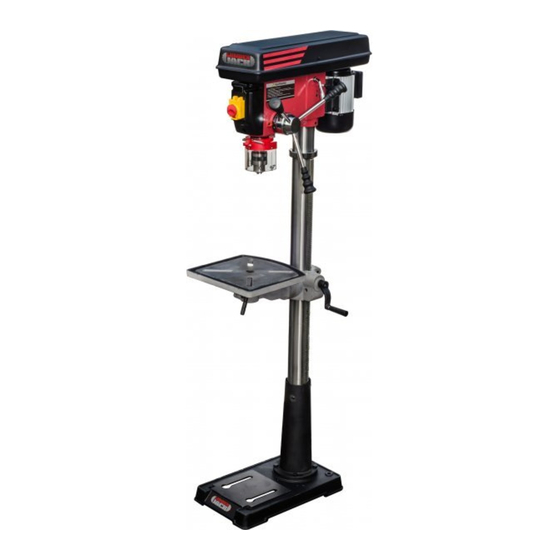

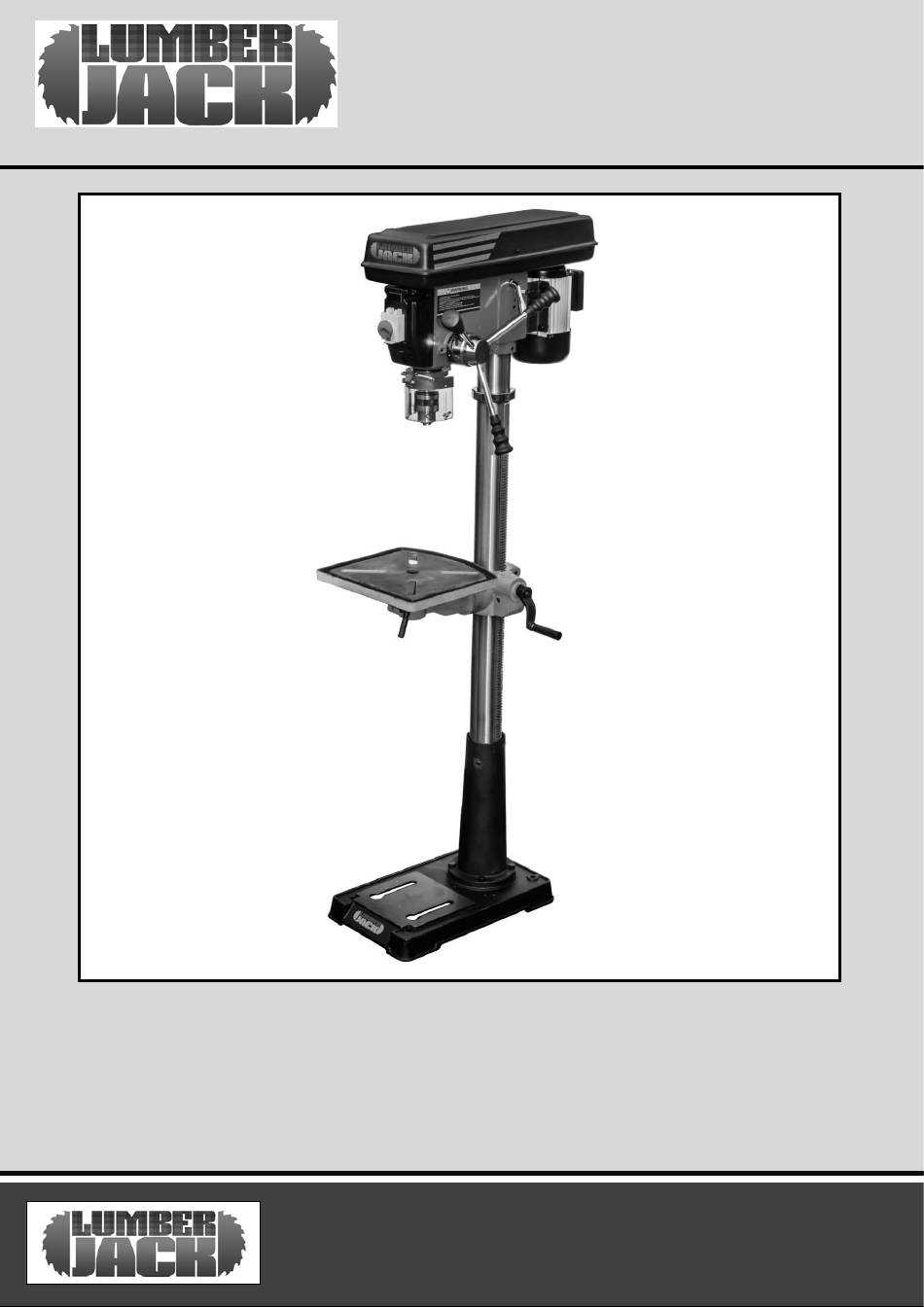

- Page 1 SAFETY AND OPERATING MANUAL 20mm Floor Standing Drill Press DP20-1630F ORIGINAL INSTRUCTIONS DP20-1630F...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Lumberjack! Dear customer, Congratulations on your purchase. Before using the product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet attached to a rotating part of the power tool may conditions. Water entering a power tool will result in personal injury. increase the risk of electric shock. DP20-1630F... - Page 4 Use power tools only with specifically operate the power tool. Power tools are designated battery packs. Use of any other dangerous in the hands of untrained users. battery packs may create a risk of injury or fire. DP20-1630F...
- Page 5 8.2 Do not wear gloves, ties or loose clothing. 8.3 while drilling make sure the piece is secured with a vice; never hold the workpiece by hand! Never keep your fingers near where they could touch the drill in case the piece moves suddenly. DP20-1630F...
- Page 6 9.4. The smaller the gauge number of the wire the greater the capacity of the cord. 9.5. When using a cable reel, always unwind the cable completely. DP20-1630F...
-
Page 7: Symbols & Cable Rating Chart
Caution! Wear a dust mask. Amperes 7.5M 0 – 2.0 2.1 – 3.4 3.5 - 5.0 5.1 – 7.1 7.1 – 12.0 12.1 – 20.0 DP20-1630F... -
Page 8: Machine Details And Product Features
Key-drift x 1 Table Size – 305X305mm Base Size – 480X290mm The design of the model may be different Over all Height – 1630mm depending on manufacturing changes. Nett Weight - 60Kgs Gross Weight – 64Kgs DP20-1630F AIR6V AIR6V AIR6V AIR6V... - Page 9 2. Remove the protective oil that is applied to the table and column. Any ordinary grease and spot remover will do. 3. Apply a coat of paste wax to the table and column to prevent rust. Wipe all parts thoroughly with clean dry cloth. DP20-1630F...
-
Page 10: Assembly
4. Install a bolt in each hole through the column support (C) and the base and tighten with the ajustable wrench. 5.Loosen set screw (A) in column collar (B) with 3mm hex. Key (C) and remove collar and rack (D) from the column. DP20-1630F... - Page 11 (D) as shown in Option #2. Loosen the set screw in the crank and reposition it as close to the table support as possible. Tighten set screw in the crank handle. DP20-1630F...
- Page 12 1. Lift the guard (A) from the right side and keep it opened. 2. Release the belt tension lock knobs (B) located on the both side of the drill press head. Release tension to the belt tension handle (C) clockwise. Tighten the belt tension lock knobs (B). DP20-1630F...
- Page 13 6. Close the belt guard. drilling. Turn the chuck key clockwise to tighten, 7. If the belt slips while drilling, readjust the belt counter clockwise to loosen. tension. DP20-1630F...
-
Page 14: Adjustments
2. Place workpiece on table. Adjust table until the tip of the drill is just a little above the top of the workpiece. 3. Turn the depth scale (C) clockwise until the depth scale indicator (D) points to the desired drilling depth on the scale. DP20-1630F... - Page 15 Make an indentation in the workpiece where you want the to drill a hole using a centre punch or a sharp nail. Before turning the switch ON, bring the drill bit down to the workpiece, lining it up with the hole location. DP20-1630F...
- Page 16 If the workpiece or the back-up material are not not long enough to reach the column, clamp them to the table. Failure to do this could result in personal injury. DP20-1630F...
-
Page 17: Operation, Maintenance And Service
Simply press the Red button to stop the machine Store out of reach of children in a stable cool temperature dry place and avoid too high or too low temperatures. DP20-1630F... - Page 18 1. Using household detergent tapered inside surface of clean the tapered surface of spindle. It falls off when trying to chuck or on the spindles the chuck and the spindle to install it. tapered surface remove the dirt, grease and oil. DP20-1630F...
-
Page 19: Lumberjack Guarantee
If a return is requested by the Authorised Dealer or 1.2.3 If asked to do so by Lumberjack or its Lumberjack, you will be provided with a Returns Authorised dealer, you return the product at Material Authorisation number which must be your own cost to Lumberjack’s or supplying... - Page 20 Lumberjack. If you include a contact number with this it will speed your claim 2.4 Please note that it is essential that the letter of claim reaches Lumberjack on the last day of this Guarantee at the latest. Late claims will not be considered.
-
Page 21: Declaration Of Conformity
Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the Bench Top Drill Press (DP20-1630F) Is in compliance with the regulations included in the Directives:2006/95/EC EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by Ente Certificazione Macchine srl,Via Cà Bella 243 - Location Castello di Serravalle - 40053 Valsamoggia (Bo) ITALY (No.:2T160318.TTD0W34) -
Page 22: Parts List
Set screw (special) head Special hex. nut Tooth washer Special hex. nut Pan hd. screw 29-1 Spring & cap assembly Switch box Wire tie Pan hd. screw Cord clamp Switch plate Adjusting lever Switch Hex. bolt Ball bearing DP20-1630F AIR6V AIR6V AIR6V... - Page 23 Base Quill Set screw Drift key Hex. bolt Round table Colum Table arm w/scale Rack Table lock handle Colum support Elevation worm gear Starting capacitor Helical gear Chuck guard Bracket lock handle Tapping screw Gear pin DP20-1630F AIR6V AIR6V AIR6V...
-
Page 24: Parts Diagram
Parts Diagram DP20-1630F...
