Summary of Contents for Lumberjack BM16

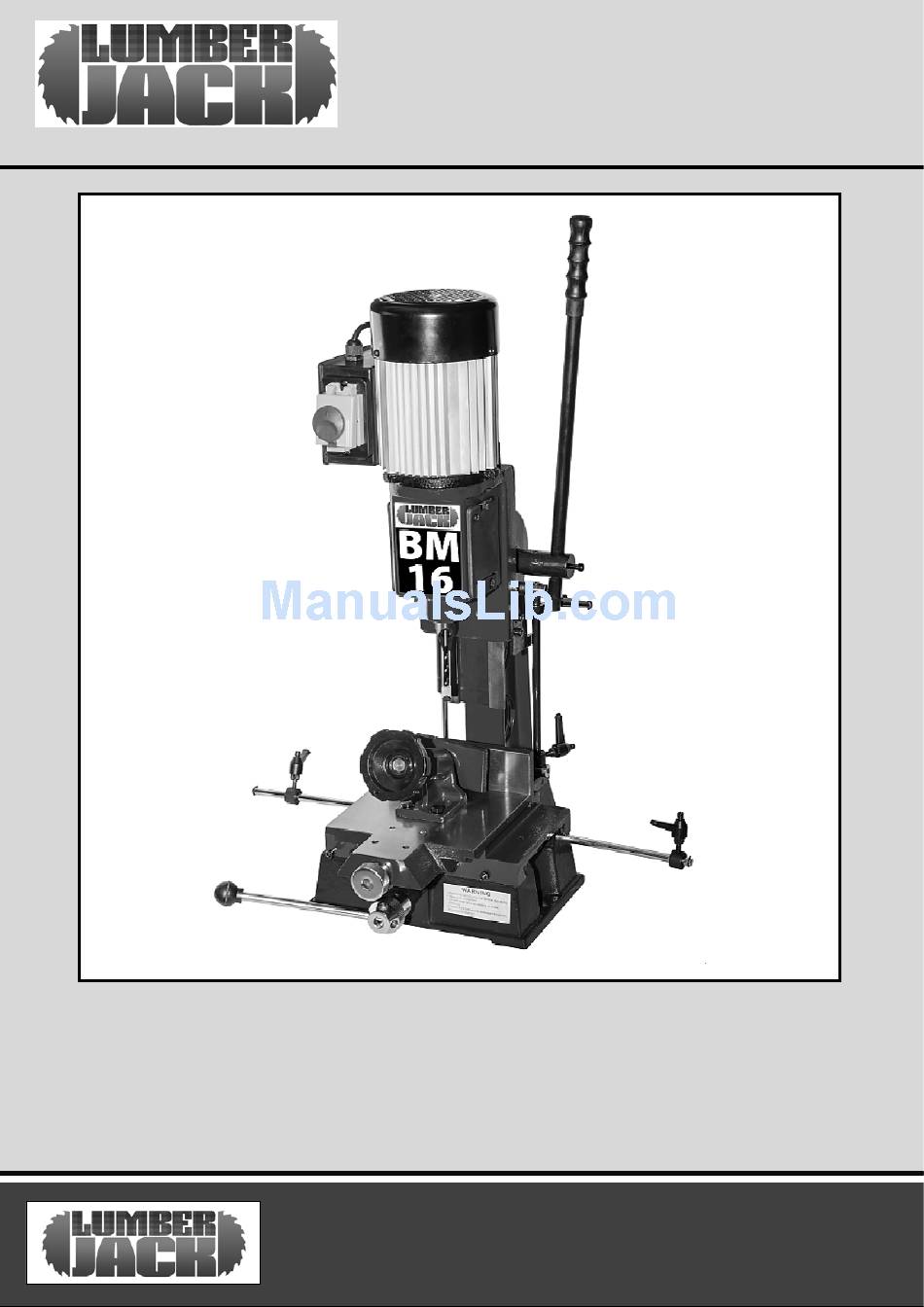

- Page 1 SAFETY AND OPERATING MANUAL Bench Morticer with Sliding Table BM16 ORIGINAL INSTRUCTIONS BM16...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Lumberjack! Dear customer, Congratulations on your purchase. Before using the product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet attached to a rotating part of the power tool may conditions. Water entering a power tool will result in personal injury. increase the risk of electric shock. BM16... - Page 4 Use power tools only with specifically operate the power tool. Power tools are designated battery packs. Use of any other dangerous in the hands of untrained users. battery packs may create a risk of injury or fire. BM16...
- Page 5 Replace missing, damaged, familiar with the operation of this machine. or failed parts before resuming operation. c) FOLLOW ALL WIRING CODES and recommended electrical connections. BM16...
- Page 6 The smaller the gauge number of the wire the greater the capacity of the cord. e) When using a cable reel, always unwind the cable completely. BM16...
- Page 7 Caution! Wear a dust mask. Amperes 7.5M 0 – 2.0 2.1 – 3.4 3.5 - 5.0 5.1 – 7.1 7.1 – 12.0 12.1 – 20.0 BM16...
-
Page 8: Machine Details And Product Features
Gross Weight - 41kg Nett Weight - 39kg Package Contents: Mortising Machine 3/8” Chisel & Auger Can be used with 1/4” & 1/2” Chisel & Auger (Not supplied) and also 5/8”(with 1/2” bit shank) Product Features BM16 AIR6V AIR6V AIR6V AIR6V... -
Page 9: Assembly
Push the chisel up as far as possible into the – head. Then lower the chisel approximately 0.8mm to 1.6mm, depending on the type of wood being worked. Tighten the screw to hold chisel in place. BM16... -
Page 10: Assembly Instructions
- Loosen screw and push chisel up against the bushing, then tighten screw. This should provide the proper distance between the points of the chisel and the bit. Installing extension rod - Insert extension rod in hole, show in Figure. BM16... -
Page 11: Depth Stop
(B), sliding fence to the desired - please use the handle (A) , position and tightening lever (B). Loosen the screw before rotate the handle (A) can move around. - Rotate the handle (B) can move front or back. BM16... - Page 12 (Pilot size will differ depending on the size of your chisel). Two or three turns of the cutter in a carpenter's brace chuck should be enough to sharpen the chisel, as shown in Figure. BM16...
-
Page 13: Lumberjack Guarantee
If a return is requested by the Authorised Dealer or 1.2.3 If asked to do so by Lumberjack or its Lumberjack, you will be provided with a Returns Authorised dealer, you return the product at Material Authorisation number which must be your own cost to Lumberjack’s or supplying... - Page 14 Lumberjack. If you include a contact number with this it will speed your claim 2.4 Please note that it is essential that the letter of claim reaches Lumberjack on the last day of this Guarantee at the latest. Late claims will not be considered.
-
Page 15: Declaration Of Conformity
Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the Bench Morticer (BM16) Is in compliance with the regulations included in the Directives:2006/95/EC EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by TÜV Rheinland LGA Rheinland LGA Products GmbH –... -
Page 16: Parts List
Clamp plate Gear casing Screw Handle Screw Washer Setting collar Screw Bolt Screw Chisel bushing Rack Chisel Sliding plate Screw Washer Screw Drift Drift Base Screw Screw Gas spring Knob Screw Gear Washer Gear shaft Gear BM16 AIR6V AIR6V AIR6V... - Page 17 Parts List Description Description Bolt Screw Screw Screw Drift Power cord Screw Screw Washer Angle block Chuck Closing ring Switch Screw Column Drift Rack Shaft BM16 AIR6V AIR6V AIR6V...
-
Page 18: Parts Diagram
Parts Diagram BM16...
