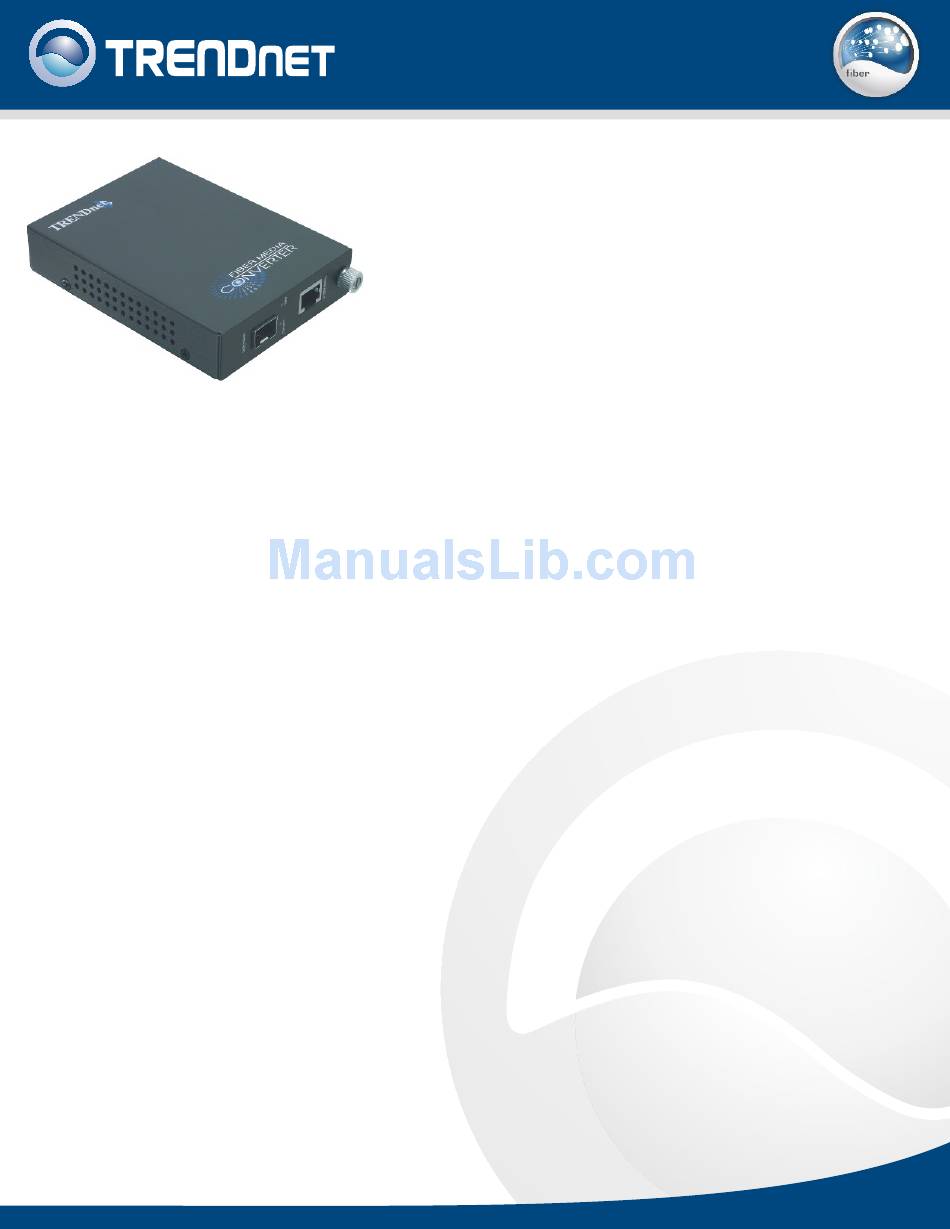

TRENDnet TFC-1000MGB Specifications

FEATURES
MANAGEMENT
FEATURES

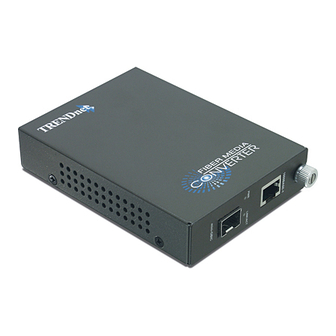

1000Mbps TX to 1000Base-FX Fiber Converter
TFC-1000MGB
TRENDnet's TFC-1000 series Fiber Media Converter transforms
1000Base-T (Copper Gigabit) media to 1000Base-SX/LX (Mini-
GBIC) media and vice versa. The 1000Base-T port supports full-
duplex Gigabit connection at wire speed with RJ45 connector. The
Mini-GBIC connection supports shortwave (SX) or longwave (LX)
laser optic with multi-mode or single-mode Mini-GBIC module. This
converter will give your Copper Gigabit connection the ability to
interface with fiber connection over a great distance. With the
optional 16-slot EIA-19" rack-mount chassis, the TFC series
converters are the perfect solutions for various fiber media
conversions for your network.
• Compliant with IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX Gigabit Ethernet Standards
• Provides One 1000Base-T Port, one 1000Base-SX/LX Mini-GBIC Slot
• Support Full-Duplex and Auto-Negotiation Mode for Fiber Port
• Provide Dip Switch to settings: Fiber (Auto/Manual), LLR (Enable/Disable)
• Optional 19" Fiber Module Chassis (TFC-1600) holds up to 16 Media Converters
• Hot Pluggable
• 5-Year Warranty
• Support LLCF (Link Loss Carry Forward, Link Pass Through)
• Support LLR (Link Loss Return) for FX Port
• Monitor the Status of Duplex/Link with TFC-1600 and TFC-1600MM
• Set Duplex force, LLCF on/off, LLR on/off for FX, ports on/off with TFC-1600 and TFC-1600MM
• Provides Link Down Source Port Information
TFC-1000MGB
rev:08.22.2006
