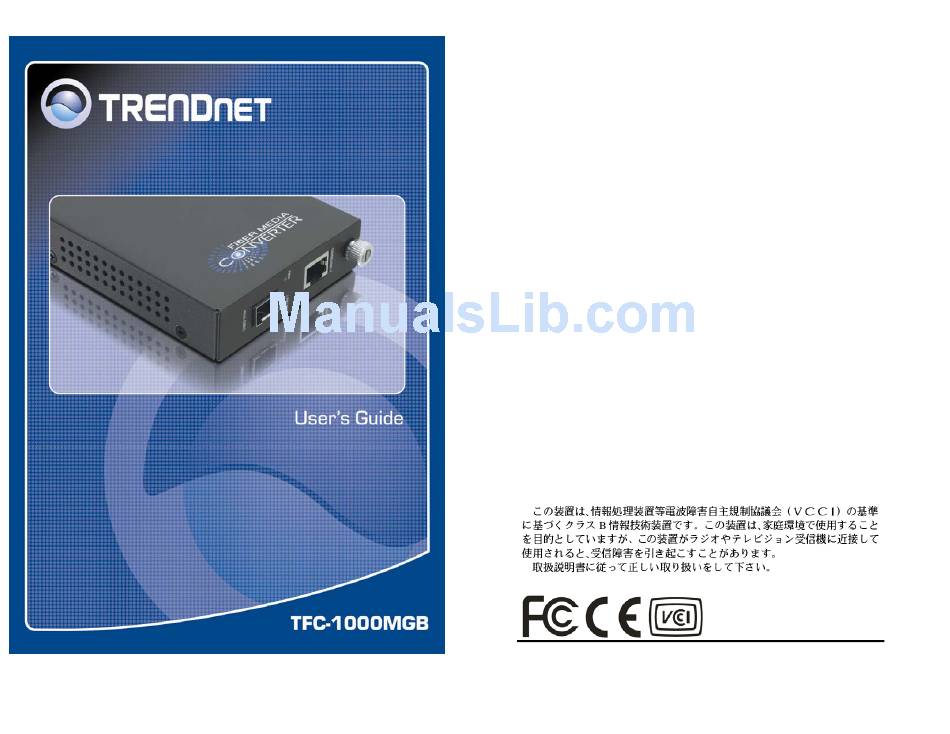

FCC Class B Certification
This equipment has been tested and found to comply
with the regulations for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated in
a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with this user's guide,
may
cause
harmful
interference
to
radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference,
in which case the user will be required to correct the
interference at his own expense.
CE Mark Warning
This is a Class B product. In a domestic environment,
this product may cause radio interference, in which case
the user may be required to take adequate measures.
VCCI Class B Compliance (Japan)
This is a product of VCCI Class B Compliance
2
Advertisement
Table of Contents
Related Manuals for TRENDnet TFC-1000MGB
Summary of Contents for TRENDnet TFC-1000MGB
- Page 1 FCC Class B Certification This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 2: Product Features

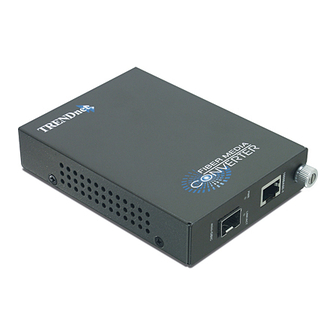

Ethernet Media Converter, The Converter introduced here provides one channel media conversion between 1000BASE-T and 1000BASE-SX/LX through mini-GBIC module. About Media Converter Media Converter is a network technology specified by IEEE 802.3ab 1000BASE-T and IEEE 802.3z 1000BASE-SX/LX standards. Product Features One-channel media conversion between... -
Page 3: Installation
Installation This chapter gives step-by-step installation instructions for the Converter. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements: The ambient temperature should be... -
Page 4: Monitoring The Converter Through Management Module
Monitoring the Converter through Management Module There is a management module that can control this media converter through the chassis system, this media converter can be controlled through Web Browser, SNMP and terminal emulation program. -
Page 5: Link Pass Through Function
There is a switch to enable or disable the function of the media converter. The table below shows how LLR function is working: Media Converter Me dia... -
Page 6: Specifications
Switch 1 : On -> Forced Mode Off -> Auto Negotiation mode Switch 2 : On -> LLR enable Off -> LLR disable Switch There is a two pin DIP switch on the module which defines as switch 1 and switch 2: Switch 1: Fiber mode switch When the switch was turned to “On”, it means that the fiber was turned to forced mode, and... -
Page 7: Limited Warranty
Limited Warranty TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase. TFC-1000MGB – 5 Years Warranty If a product does not operate as warranted above during the...
