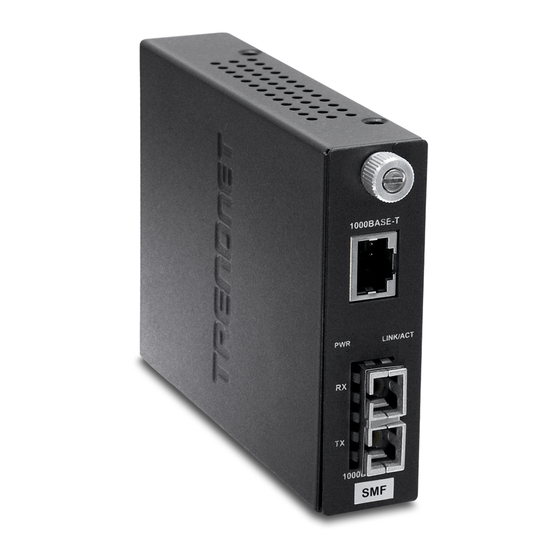

- Page 1 Quick Installation Guide 1000Base-SX/LX Fiber Converters...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ...................... 1. Before You Start ................. Hardware Installation ................. Spefications ....................Ordering Information................... Troubleshooting ..................Version 02.02.2009... -
Page 3: English
1. Before You Start Package Contents Fiber Converter Quick Installation Guide AC Power Supply (7.5 DC, 1.5A) System Requirements An environment that is free from strong electromagnetic field generators (such as motors), vibration, dust and direct exposure to sunlight TFC-1600 chassis (optional) or sturdy, level surface that can support the weight of the Fiber Converter 10/100/1000Mbps Gigabit Switch Multi-mode or Single-mode Fiber cables... -
Page 4: Hardware Installation
2. Hardware Installation Installing two stand alone Fiber Converters 1. Connect the fiber cable to the fiber converters. This cable must be multi-mode for the TFC-1000MSC. This cable must be single-mode for the TFC-1000S20/S50/S70/S10D3/ S10D5. 2. Connect an RJ-45 Ethernet cable from the Ethernet port on the fiber converters to an Ethernet port on your switch (e.g TEG-S160TX or... - Page 5 Your installation is now complete. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register register your product Online at: Thank you for choosing TRENDnet English...
-
Page 6: Spefications
Specifications IEEE802.3ab 1000BASE-TX Applicable Standards: IEEE802.3z 1000BASE-SX/LX 1 TX port, 1 FX port Fixed Ports: Forwarding rate: 1488000pps for 1000Mbps PWR, LNK/ACT LED Indicators: Switch 1: On(Forced Mode); Off(Auto-Negotiation) DIP Switches: Switch 2: On(LLR enabled); Off(LLR disabled) 1000BASE-T Cat. 5e or Cat. 6 EIA/TIA-568 100-ohm screened twisted-pair (STP) 1000BASE-SX 62.5/125µm multi-mode fiber optic cable... -
Page 7: Ordering Information
Ordering Information Media Converters RJ-45 Port Fiber Port Model Number Speed Speed Max. Max. Cable(/125 µm ) Wavelength Cable/Connector (Mbps) (Mbps) Distance /Connector Distance 220M Cat. 5E, 6 62.5/125µm TFC-1000MSC 1000 EIA/TIA-568 100M 1000 1300nm µm or 62.5 µm 550M 100-ohm STP 50/125µm Cat. -
Page 8: Troubleshooting
Wait 15 seconds, then plug the switches and the fiber converters back What is the maximum distance that is supported by the fiber converter? Please reference section 4 for distance information. If you still encounter problems or have any questions regarding the Fiber Converters please contact TRENDnet's Technical Support Department. - Page 9 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
- Page 10 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 11 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 12 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2009. All Rights Reserved. TRENDnet.
