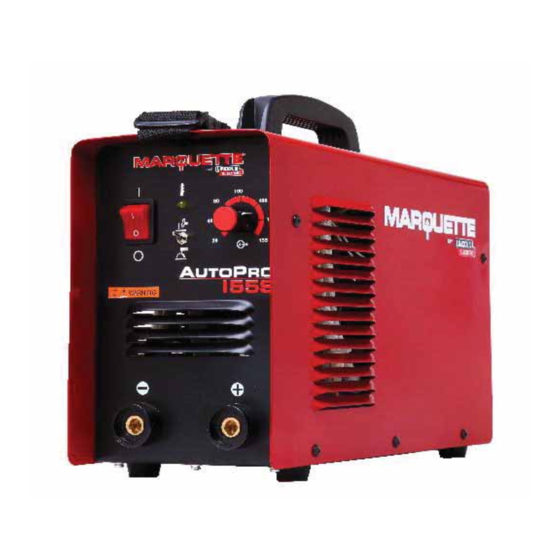

Lincoln Electric 11968 Operator's Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

IM10142

AUTOPRO

155S

™

January 2013

11968

For use with machines having Code Numbers:

Safety Depends on You

Marquette

arc welding and cut-

ting equipment is designed and

built with safety in mind. However,

your overall safety can be

increased by proper installation ...

and thoughtful operation on your

part. DO NOT INSTALL, OPER-

ATE OR REPAIR THIS EQUIP-

MENT WITHOUT READING

THIS MANUAL AND THE

SAFETY PRECAUTIONS CON-

TAINED THROUGHOUT. And,

most importantly, think before you

act and be careful.

OPERATORʼS MANUAL

2345 Murphy Blvd. Gainesville, GA 30504 TEL: 866-236-0044

Table of Contents

Need help?

Do you have a question about the 11968 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lincoln Electric 11968

Page 1 IM10142 AUTOPRO 155S ™ January 2013 11968 For use with machines having Code Numbers: Safety Depends on You Marquette arc welding and cut- ® ting equipment is designed and built with safety in mind. However, your overall safety can be increased by proper installation ...
Page 2 351040, Miami, Florida 33135 or CSA Standard W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199. BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE PERFORMED ONLY BY QUALIFIED INDIVIDUALS.
Page 3 SAFETY ARC RAYS can burn. ELECTRIC SHOCK can 4.a. Use a shield with the proper filter and cover kill. plates to protect your eyes from sparks and 3.a. The electrode and work (or ground) circuits the rays of the arc when welding or observing are electrically “hot”...
Page 4 SAFETY WELDING and CUTTING CYLINDER may explode SPARKS can if damaged. cause fire or explosion. 7.a. Use only compressed gas cylinders 6.a. Remove fire hazards from the welding area. containing the correct shielding gas for the If this is not possible, cover them to prevent process used and properly operating the welding sparks from starting a fire.
Page 5 SAFETY PRÉCAUTIONS DE SÛRETÉ 6. Eloigner les matériaux inflammables ou les recouvrir afin de prévenir tout risque dʼincendie dû aux étincelles. Pour votre propre protection lire et observer toutes les instructions et les précautions de sûreté specifiques qui parraissent dans ce 7.
Page 6 2004/108/EC. It was manufactured in conformity with a national standard that implements a harmonized standard: EN 60974-10 Electromagnetic Compatibility (EMC) Product Standard for Arc Welding Equipment. It is for use with other Lincoln Electric equipment. It is designed for industrial and professional use. Introduction All electrical equipment generates small amounts of electromagnetic emission.
Page 7 SAFETY Electromagnetic Compatibility (EMC) The size of the surrounding area to be considered will depend on the structure of the building and other activities that are taking place. The surrounding area may extend beyond the boundaries of the premises. Methods of Reducing Emissions Public Supply System Welding equipment should be connected to the public supply system according to the manufacturer’s recom- mendations.
Page 8 Thank You for selecting one of our QUALITY products. We want you to take pride in operating this product ••• as much pride as we have in bringing this product to you! CUSTOMER ASSISTANCE POLICY The business of our company is manufacturing and selling high quality welding equipment. Our challenge is to meet the needs of our customers and to exceed their expectations.
Page 9: Table Of Contents
viii TABLE OF CONTENTS viii Page Installation........................Section A Technical Specifications .......................A-1 Safety Precautions ....................Select Suitable Location .......................A-2 Stacking..........................A-2 Tilting ............................A-2 Input Connections ........................A-2 Ground Connection ......................A-2 Input Power Connection .......................A-2 230V Input ..........................A-3 Output Connections......................A-3 Stick Welding........................A-3 TIG Welding..........................A-3 ________________________________________________________________________________ Operation.........................Section B Safety Instructions ........................B-1...
Page 10: Installation
INSTALLATION TECHNICAL SPECIFICATION AUTOPRO™ 155S INPUT - SINGLE PHASE ONLY Input Voltages 60 Hz. Rated Input Current 230Vac ± 15% 30 Amps @ Rated Output RATED OUTPUT Output Amps Output Volts Input Circuit Duty Cycle 150A(TIG) 16.0 Vdc 140A (Stick) 25.6 Vdc 230 Vac OUTPUT...
Page 11: Technical Specifications
INSTALLATION Read entire installation section before starting TILTING installation. Place the machine directly on a secure, level surface. Do not place or operate this machine on a surface SAFETY PRECAUTIONS with an incline greater than 15° from horizontal. The machine may topple over if this procedure is not fol- WARNING lowed.
Page 12: 230V Input
INSTALLATION 230V INPUT FIGURE A.1 The AUTOPRO™ 155S is provided with a 230V cable, 6.0ft.(1.8m) in length, with a 50 Amp (NEMA 6-50P) plug molded onto the cord. The rated output of the AUTOPRO™ 155S is available Electrode when connected to a 30A branch circuit. When con- Holder nected to a branch circuit with lower ampacity, lower welding current and duty cycle must be used.
Page 13: Operation
OPERATION WELDING CAPABILITY Read and understand this entire section before operating your machine. The AUTOPRO™ 155S is rated at 150 amps at 30% SAFETY INSTRUCTIONS duty cycle on a ten minute basis. It is capable of high- er duty cycles at lower output currents. If the duty WARNING cycle is exceeded, a thermal protector will shut off the output until the machine cools.
Page 14 OPERATION CONTROLS AND OPERATIONAL FEATURES 4. Thermal LED: This indicator will turn on when the machine is overheated and the output has been disabled. This normally occurs when the duty cycle FRONT CONTROL PANEL of the machine has been exceeded. Leave the (See Figure B.1) machine on to allow the internal components to 1.
Page 15: Stick-Welding Circuit
OPERATION STICK-WELDING CIRCUIT This figure closely resembles what is actually seen during welding. The “arc streamʼʼ is seen in the middle (See Figure B.3) of the figure. This is the electric arc created by the electric current flowing through the space between the FIGURE B.3 end of the electrode and the work.
Page 16: Tig Welding
OPERATION 8. Turn the machine off and remove the stub by open- 4. Immediately after striking the arc try to maintain a ing the jaws of the electrode holder and insert a distance from the workpiece that is equivalent to new electrode.
Page 17: Making A Tig Weld
OPERATION Making a TIG Weld: 1. Connect the work cable to the positive “+” output terminal. 2. Connect the TIG torch to the negative “-“ output ter- minal. 3. Connect the gas line from the TIG torch adapter to the gas regulator connected to the gas bottle. 4.
Page 18: Accessories
PTA-17V TIG Torch - 150 Amp air-cooled compact are available for welding stainless steel, mild steel, and durable Tig Torch with integral gas valve for gas aluminum and copper alloys. See Lincoln Electric pub- control at the torch. The following 1-piece cable torches lication C9.10.
Page 19: Maintenance
MAINTENANCE SAFETY PRECAUTIONS WARNING WARNING Do not open this machine and do not introduce anything into its openings. Power supply must be ELECTRIC SHOCK can kill. disconnected from the machine before each main- • Have an electrician install and tenance and service. After each repair, perform service this equipment.
Page 20: Troubleshooting
TROUBLESHOOTING HOW TO USE TROUBLESHOOTING GUIDE WARNING Service and Repair should only be performed by Factory Trained Personnel. Unauthorized repairs performed on this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For your safety and to avoid Electrical Shock, please observe all safety notes and precautions detailed throughout this manual.
Page 21 TROUBLESHOOTING Observe all Safety Guidelines detailed throughout this manual PROBLEMS POSSIBLE RECOMMENDED (SYMPTOMS) CAUSE COURSE OF ACTION WELDING PROBLEMS Excessive spatter 1. Improper welding polarity. 1. Make sure the electrode holder is plugged into the positive “+” out- put terminal. 2.
Page 22 TROUBLESHOOTING Observe all Safety Guidelines detailed throughout this manual PROBLEMS POSSIBLE RECOMMENDED (SYMPTOMS) CAUSE COURSE OF ACTION ELECTRICAL FAILURES Machine fails to come on 1. No Input Voltage. (Power LED off) 2. Faulty supply plug or cable. 3. Supply fuse blown or breaker tripped.
Page 23 DIAGRAMS AUTOPRO™ 155S...
Page 24 NOTES AUTOPRO™ 155S...
Page 25 NOTES AUTOPRO™ 155S...
Page 26 Do not touch electrically live parts or Keep flammable materials away. Wear eye, ear and body protection. WARNING electrode with skin or wet clothing. Insulate yourself from work and ground. Spanish No toque las partes o los electrodos Mantenga el material combustible Protéjase los ojos, los oídos y el AVISO DE bajo carga con la piel o ropa moja-...
Page 27 Keep your head out of fumes. Turn power off before servicing. Do not operate with panel open or WARNING Use ventilation or exhaust to guards off. remove fumes from breathing zone. Spanish Los humos fuera de la zona de res- Desconectar el cable de ali- No operar con panel abierto o AVISO DE...
