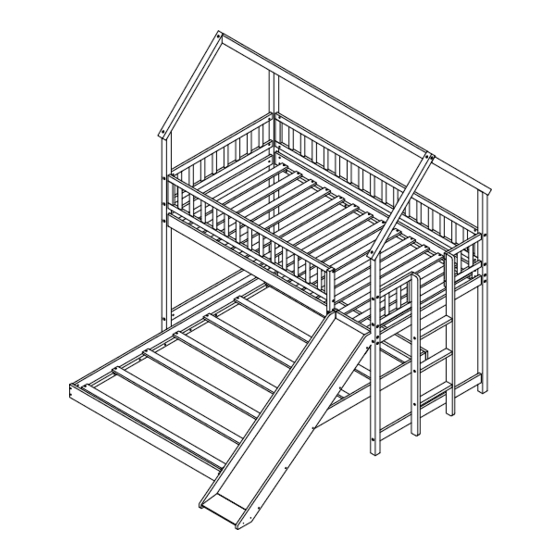

- Page 1 ASSEMBLY INSTRUCTIONS HOUSE BED WITH SLIDE WF302943/WF302944...
- Page 2 SAFETY WARNINGS AND GENERAL NOTES : Follow the information on the warnings on the bunk bed end structure and on the carton. Do not remove the warning label from the bed. Always use the recommended size mattress on mattress support, or both, to help prevent the likelihood of entrapment or falls.
-
Page 3: Safety Warning
SAFETY WARNING 1. At the beginning : Tighten all hardware. Chesk metal parts for rust. If found, sand and repaint using a non-lead-based paint meeting the requirements of 16 CFR 1303. Chesk all wood members for deterioration and splinters. Sand down splinters and replace deteriorating wood members. -
Page 4: Detail View
Detail View... -
Page 5: Part List
Part List Hardware List WF302943 Leg (Right Front) - 1pc Leg (Left Front/Right Back) - 1pc Leg (Left Back) - 1pc Upper side rail (front) - 1pc Horizontal bar HB - 2pcs Horizontal bar FB - 2pcs Upper side rail (back) - 1pc... - Page 6 Hardware List WF302943 8*30mm Wood dowel (4pcs) Hex-Head bolts (16pcs) Hex-Head bolts (26pcs) 60mm 40mm Hex-Head bolts (6pcs) Hex-Head bolts (10pcs) Hex-Head bolts (2pcs) 1/4"*15 (9.5mm) 65mm Wood screws (46pcs) Hex-Head bolts (6pcs) Horizontal-Hole bolts(48pcs) 50mm 3"*3mm 14mm Hex-Head bolts (14pcs)
- Page 7 STEP 1: 8PCS 8PCS Note:Part 7 will face up with the "x" mark on it, otherwise it cannot be tightened STEP 2: 2PCS...
- Page 8 STEP 3: 4PCS 4PCS Note:Part 7 will face up with the "x" mark on it, otherwise it cannot be tightened STEP 4: 2PCS...
- Page 9 Remark: Upper horizontal STEP 5: paste stickers WARNING: DO NOT HANG ON THIS BAR! 14PCS 14PCS STEP 6: 2PCS 2PCS 2PCS 4PCS...
- Page 10 STEP 7: 4PCS 4PCS STEP 8: 6PCS 6PCS...
- Page 11 STEP 9: 8PCS STEP 10: 14PCS 4PCS 14PCS 14PCS 2PCS...
- Page 12 STEP 11: 2PCS...
- Page 13 STEP 12: 28PCS 3.1 " 3.3 " 2.4 " 79mm 84.5mm 61mm Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before screwing , STEP 13: 4PCS...
- Page 14 STEP 14: 14PCS (9.2") (9.2") (2.8") 234mm 234mm 70.5mm Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before screwing ,...
- Page 15 STEP 15:...
