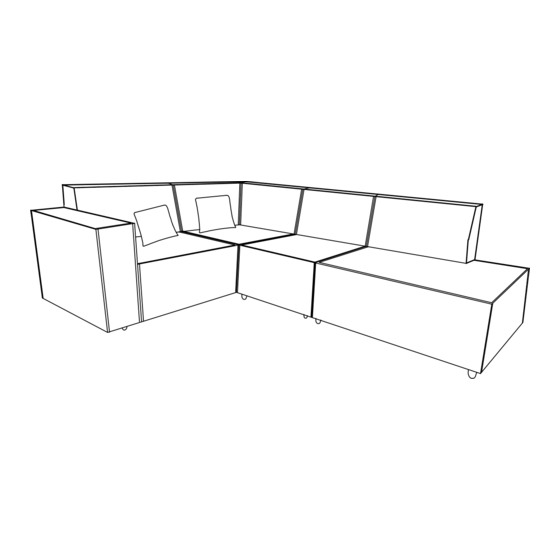

ASSEMBLY INSTRUCTION
WF310379/WF310380/WF310381/WF310382
1.This sofa is packed in 4 boxes. Please assemble it After both boxes are received.
2.As the cushions are all vacuum compressed,there will be some wrinkles.
Please give your cushions up to 72 hours to reach its original size and the wrinkles will
basically disappear.
3.Please do not open the compressed packages until your sofa frame is completely assembled.
Return & Warranty policy:
--We strive to offer the highest quality products,and we also try our best to satisfy each and every
customer that orders from us with replacement parts or service as needed.
--If the item is damaged or defective, please take photos as evidence for replacements and refunds.
--Please do not return to store,contact the seller if yon have any troubles with this product.
Friendly Reminder:
Advertisement
Related Manuals for BED BATH & Beyond WF310379
Summary of Contents for BED BATH & Beyond WF310379

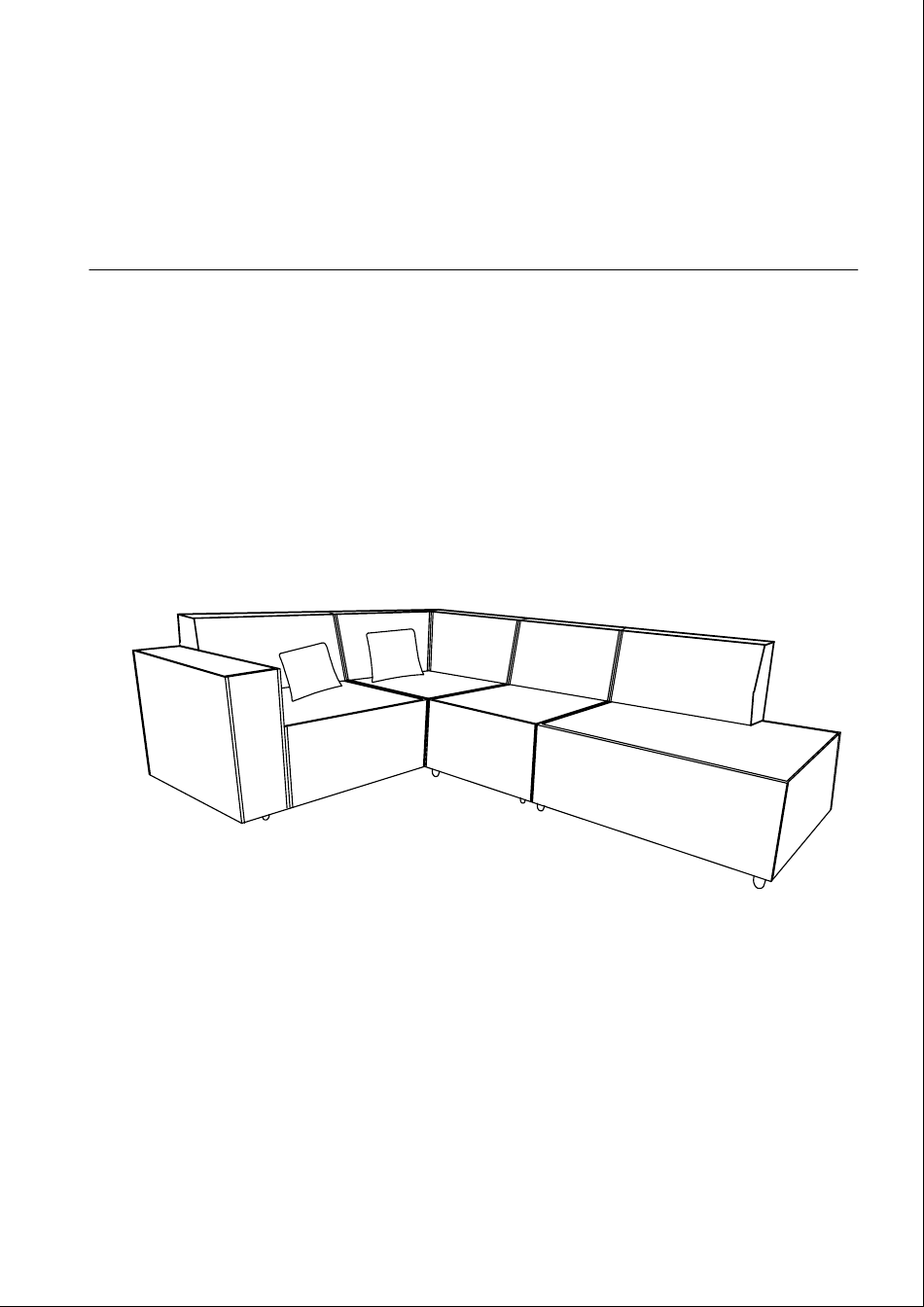

- Page 1 ASSEMBLY INSTRUCTION WF310379/WF310380/WF310381/WF310382 Friendly Reminder: 1.This sofa is packed in 4 boxes. Please assemble it After both boxes are received. 2.As the cushions are all vacuum compressed,there will be some wrinkles. Please give your cushions up to 72 hours to reach its original size and the wrinkles will basically disappear.
-
Page 2: Assembly Instruction
U-shaped connection part 6PCS 16PCS Plastic Washer 16PCS Screws 6PCS M8*20MM Double-headed Screws 20PCS M8*80MM ∅ Metal Washer M8* 20MM 20PCS 20PCS Wrench Open-end Wrench ∅ Metal Washer M8* 30MM 6PCS PARTS LIST WF310379 DESCRIPTION SKETCH Single Seat Armrest Corner Armrest... - Page 3 ASSEMBLY INSTRUCTION PARTS LIST WF310380 DESCRIPTION SKETCH Single Seat Backrest Corner Frame Throw Pillow PARTS LIST WF310381 DESCRIPTION SKETCH Middle Single Seat Backrest Corner Backrest Single Seat Frame Middle Single Seat Frame Throw Pillow PARTS LIST WF310382 DESCRIPTION SKETCH Chaise Backrest Chaise Frame...
- Page 4 DIAGRAM 1...
- Page 5 6PCS DIAGRAM 2 Assemble the U-shaped connection parts (Hardware 1) insert to the single seat 6PCS frame(Part G), the middle single seat frame(Part H) and the corner frame (Part I)by M8*20MM washer (Hardware 10) and screws (Hardware 4), wrench(Hardware 8). 6PCS ∅...
- Page 6 4PCS DIAGRAM 4 M8*80MM seat armrest(Part A), Tighten the double-headed screws(Hardware 5) into the single 4PCS then insert the other end of the double-headed screws(Hardware 5) into the single seat ∅ 20MM , assemble it by washer(Hardware 6) and nuts(Hardware 7) using the frame (Part G) open-end wrench(Hardware 9).
- Page 7 3PCS DIAGRAM 6 M8*80MM Tighten the double-headed screws(Hardware 5) into the corner backrest(Part E), then 3PCS insert the other end of the double-headed screws(Hardware 5) into the corner frame ∅ (Part I), assemble it by washer(Hardware 6) and nuts(Hardware 7) using the open-end 20MM wrench(Hardware 9).
- Page 8 3PCS DIAGRAM 8 M8*80MM Tighten the double-headed screws(Hardware 5) into the chaise backrest(Part D), then 3PCS insert the other end of the double-headed screws(Hardware 5) into the chaise frame ∅ 20MM (Part J), assemble it by washer(Hardware 6) and nuts(Hardware 7) using the open-end wrench(Hardware 9).
- Page 9 DIAGRAM 10 Please connect all the parts with U-shaped connection parts one by one from Right to Left as the photo. And the middle single sofa can be moved freely according to your requirements.
- Page 10 DIAGRAM 11 TIPS ： 1. Please do not open the compressed packages until your sofa frame is completely assembled. 2. Compressed back cushions and pillows need to be fully fulfilled within 72 hours for your perfect use. 3. Please keep children away from plastic bags or any small pieces of stuff.
