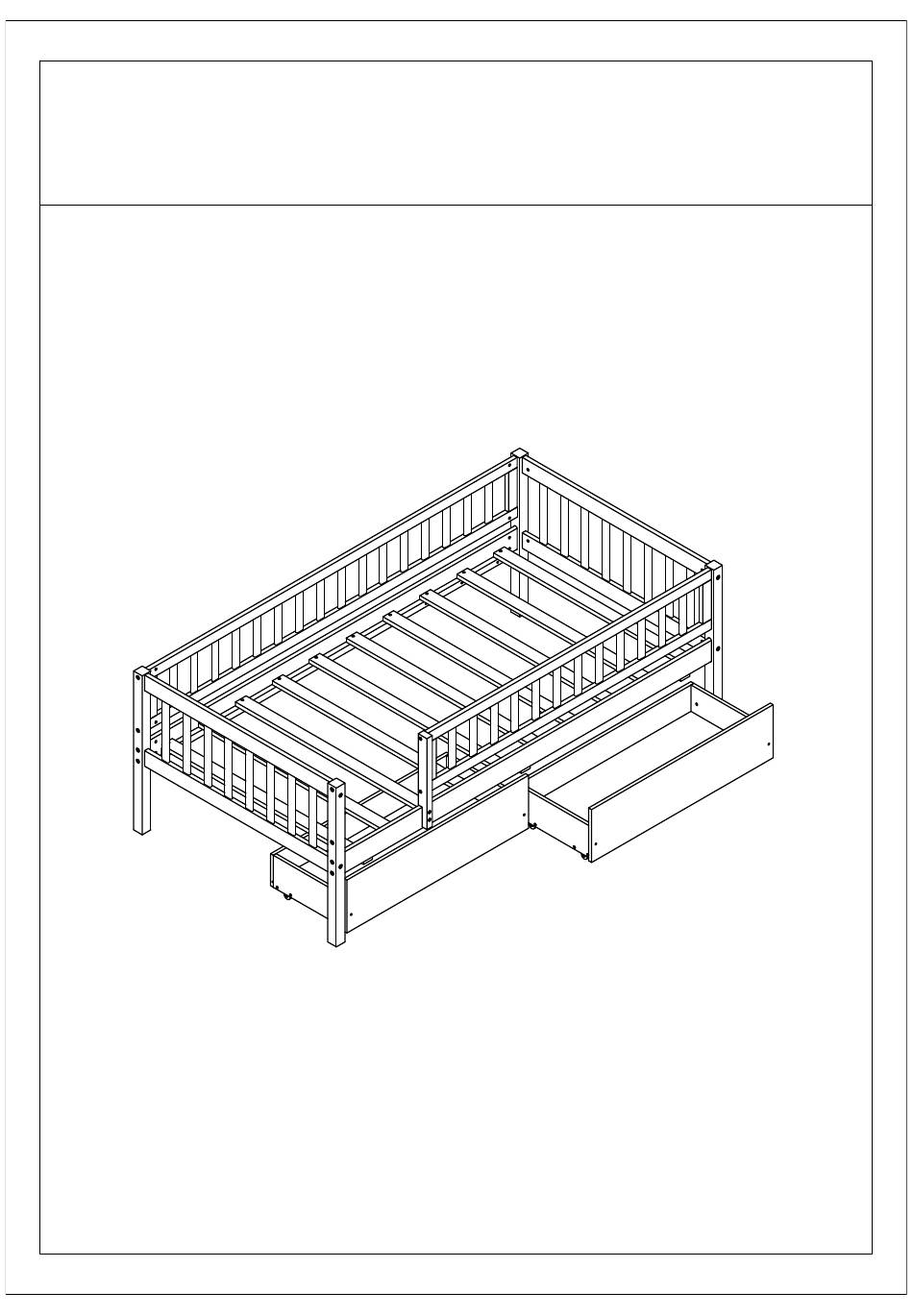

- Page 1 ASSEMBLY INSTRUCTIONS TWIN BED WITH 2 DRAWERS WF301864...
-
Page 2: Detail View
Detail View... -
Page 3: Part List
Part List Leg (Left Front/Right Back) - 2pcs Leg (Left Back/Right Front) - 2pcs Frame HB/FB - 2pcs Side rail (Front) - 1pc Side rail (Back) - 1pc Long guard rail (Back) - 1pc Short guard rail (Front) - 1pc Support guard rail(Left) - 1pc Slats - 10pcs Front drawer panel - 2pcs... -
Page 4: Hardware List
Hardware List 100mm 60mm Hex-Head bolts (14pcs) Hex-Head bolts (10pcs) Hex-Head bolts (8pcs) 35mm 1/4"*15 (9.5mm) Hex-Head bolts (2pcs) Wood screws (42pcs) Horizontal-Hole bolts(32pcs) (1/4")4.5*58mm 100*54*20 mm 70*35*19 mm Drawer stopper (3pcs) Allen key (1pc) Wheels (8pcs) 8*30mm Wood dowel (16pcs) Wood dowel (8pcs) ASSEMBLY TOOLS REQUIRED ( NOT INCLUDED ) - Page 5 STEP 1: 8PCS 8PCS 2pcs Note:Part 5 will face up with the "x" mark on it, otherwise it cannot be tightened STEP 2: 6PCS 3PCS Drawer stopper (9) with lower side rail front (D) by using screw (6).
- Page 6 STEP 3: 12PCS 12PCS STEP 4: 2PCS 2PCS 2PCS 4PCS...
- Page 7 STEP 5: 20PCS 5.4" 2.7" 138mm 69mm Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before screwing , STEP 6: 4PCS...
- Page 8 STEP 7: 4PCS 4PCS 8PCS STEP 8: 16PCS 8PCS 8PCS...
- Page 9 STEP 9: Push Trundle and Drawer under the bottom of Bunkbed.
