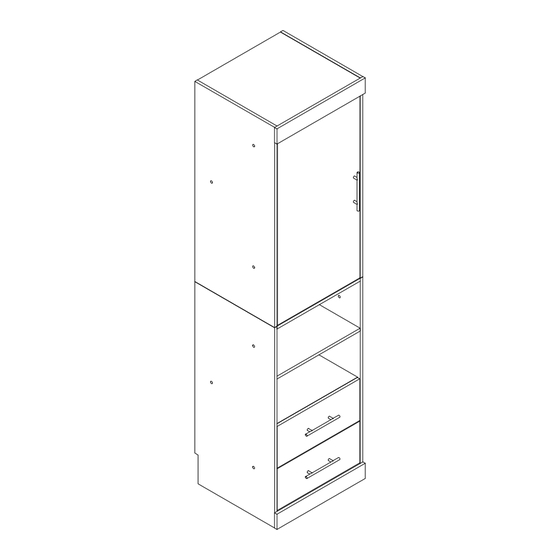

Wardrobe Assembly Instructions - Please keep for future reference WF311144AAK Dimensions Width - 21.1inch Depth - 19.7inch Height - 83inch Important – Please read these instructions fully before starting assembly ZG-059#Issue 1 - 07/28/23...
Page 2
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed on or put weight on the product, the likelihood of the following pages.
Page 3
Using Camlocks Step 1 Step 2 DO NOT OVER TIGHTEN. Connect the male Push the male camlock NE PAS SERRER EXCESSIVEMENT. camlock as diected in into the entry hole. the assembly instructions using a scewdriver . Step 4 Step 3 Insert the femle Turn the female camlock camlock as shown in the...
Page 5
Part List : WF311144AAK 1 PC 1 PC 1 PC 1 PC 1 PC 2 PCS 2 PCS 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 2 PCS...
Page 6
Hardware list : WF311144AAK Please check you have all the panels listed below Note: The quantitie below are the correcet amount to complete the assembly. In some cases more fittings may be supplied than are required. Male Camlock x 68...
Page 7
Assembly Instructions Step 1 A x 12 K x 4 C x 6 N x 2 Step 2 C x 8...
Page 8
Assembly Instructions Step 3 A x 8 Step 4 B x 2...
Page 9
Assembly Instructions Step 5 B x 4 Step 6...
Page 10
Assembly Instructions Step 7 B x 6 Step 8 B x 4...
Page 11
Assembly Instructions Step 9 A x 36 C x 2 Step 10 J x 2 J1 installed on No.8 and 9(Step11) J2 installed on the bottom of the drawer.(Step 33)
Page 12
Assembly Instructions Step 11 P x 8 Step 12 A x 2 C x 14...
Page 13
Assembly Instructions Step 13 D x 2 E x 1 Step 14 B x 2...
Page 14
Assembly Instructions Step 15 B x 10 Step 16 C x 8...
Page 15
Assembly Instructions Step 17 B x 2 Step 18 B x 2...
Page 16
Assembly Instructions Step 19 B x 2 Step 20...
Page 17
Assembly Instructions Step 21 B x 16 Step 22 B x 4...
Page 18
Assembly Instructions Step 23 A x 2 Step 24 B x 2...
Page 19
Assembly Instructions Step 25 B x 4 Step 26 G x 16 L x 28...
