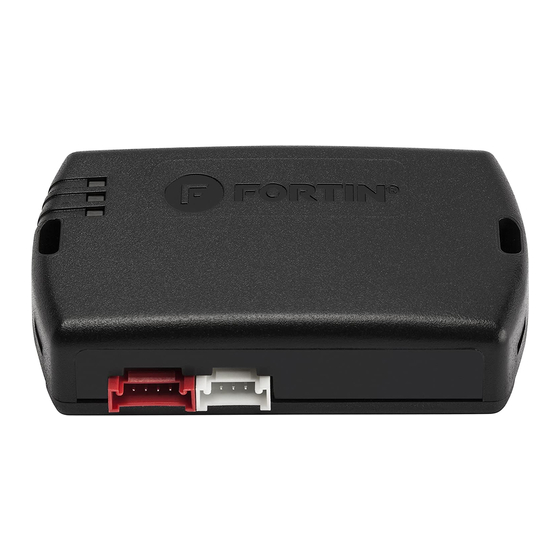

Fortin EVO-CAN Quick Start Manual
Hide thumbs Also See for EVO-CAN:

Advertisement

Quick Links

1 / 4
Page
LS460, LS600h
LEXUS
LS460
LS600h
At parking light switch
At Steering Column
Au commutateur des
lumières de stationnement
à la colonne de direction
(-) Parking Light Blue
Input
Entrée
Output
Sortie
INSTALLATION WITH DATA-LINK
INSTALLATION AVEC DATA-LINK
Remote
Starter/Alarm with
the Fortin Data-link
protocol.
Démarreur à
distance/alarme
avec le protocole
Data-link Fortin
4 Pin
Rev. A - 20101110
Rev. 20110606

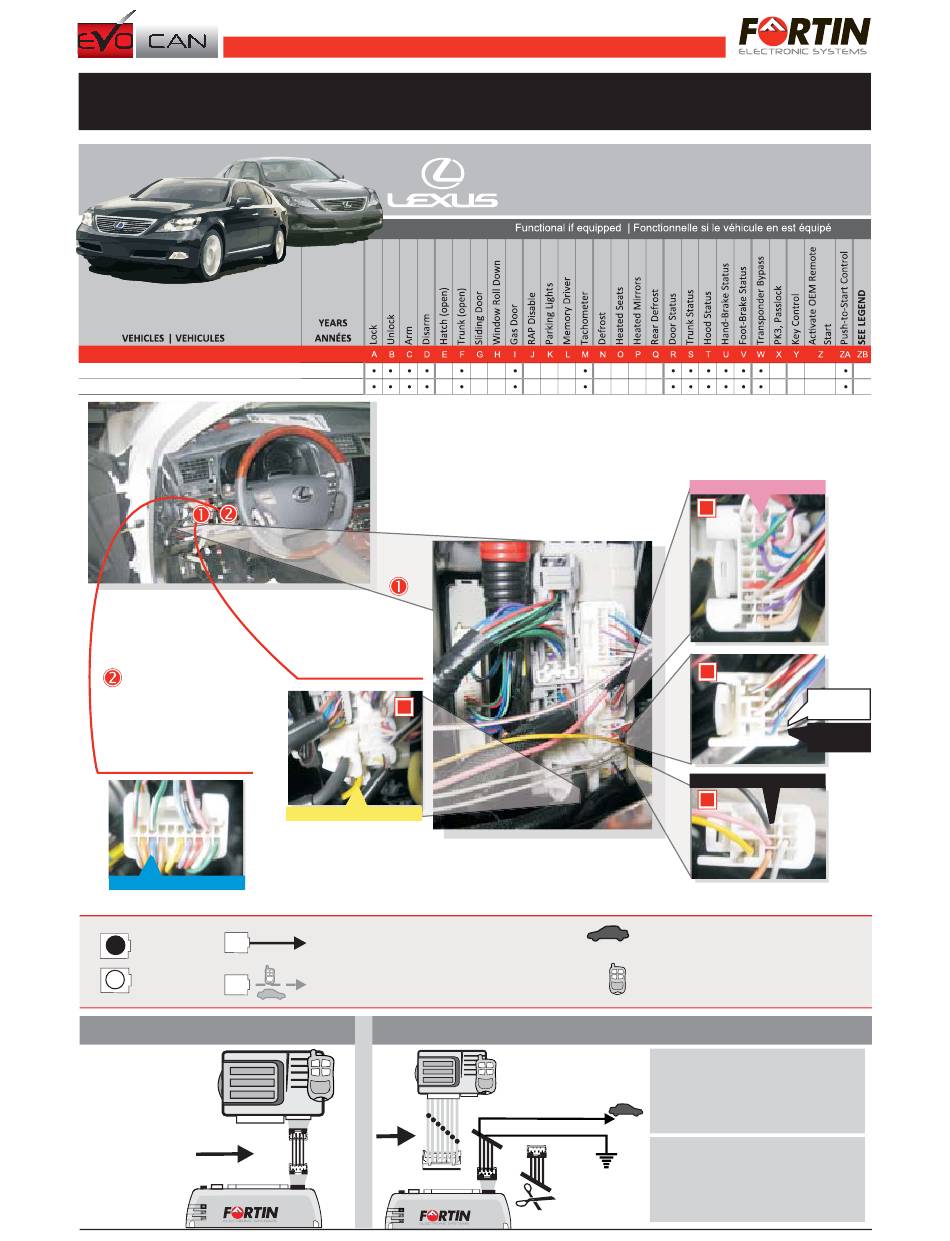

ADDENDUM - SUGGESTED WIRING CONFIGURATION
2009-2011
2008-2011
At left side of the
Steering Column
Côté Gauche de
la colonne de
Direction
D
(+) 12V Yellow
Connection always required
Branchement toujours requis
Connection not required with Data-link
Branchement non requis avec Data-Link
INSTALLATION WITHOUT DATA-LINK
INSTALLATION SANS DATA-LINK
20 Pin Conn.
Guide #3075
SCHÉMA DE BRANCHEMENT SUGGÉRÉ
Hood Status: If equipped with OEM hood pin
Connect to vehicle
Branchement au véhicule
Connect to Remote-Starter/Alarm
Branchement au démarreur à
distance/Alarme
Remote
1
Starter/Alarm
Démarreur à
2
distance/alarme
3
Red | Rouge +12V
Black | Noir Ground
1
2
4 Pin
3
(+) Ignition Pink
A
B
CAN Low
White
CAN High
Black
(+) STSW Black
C
Cut off one plug of the 4 Pin
Data-Link connector
Connect the Red wire to +12V
Connect the Black wire to
Ground
Coupez l'extrémité du connecteur
4 pins Data-Link
Connectez le fil rouge au 12V
Connectez le fil noir à la masse
du véhicule.
