Push start for kia optima and kia optima hybrid (5 pages)
Summary of Contents for Fortin EVO ALL
Page 1

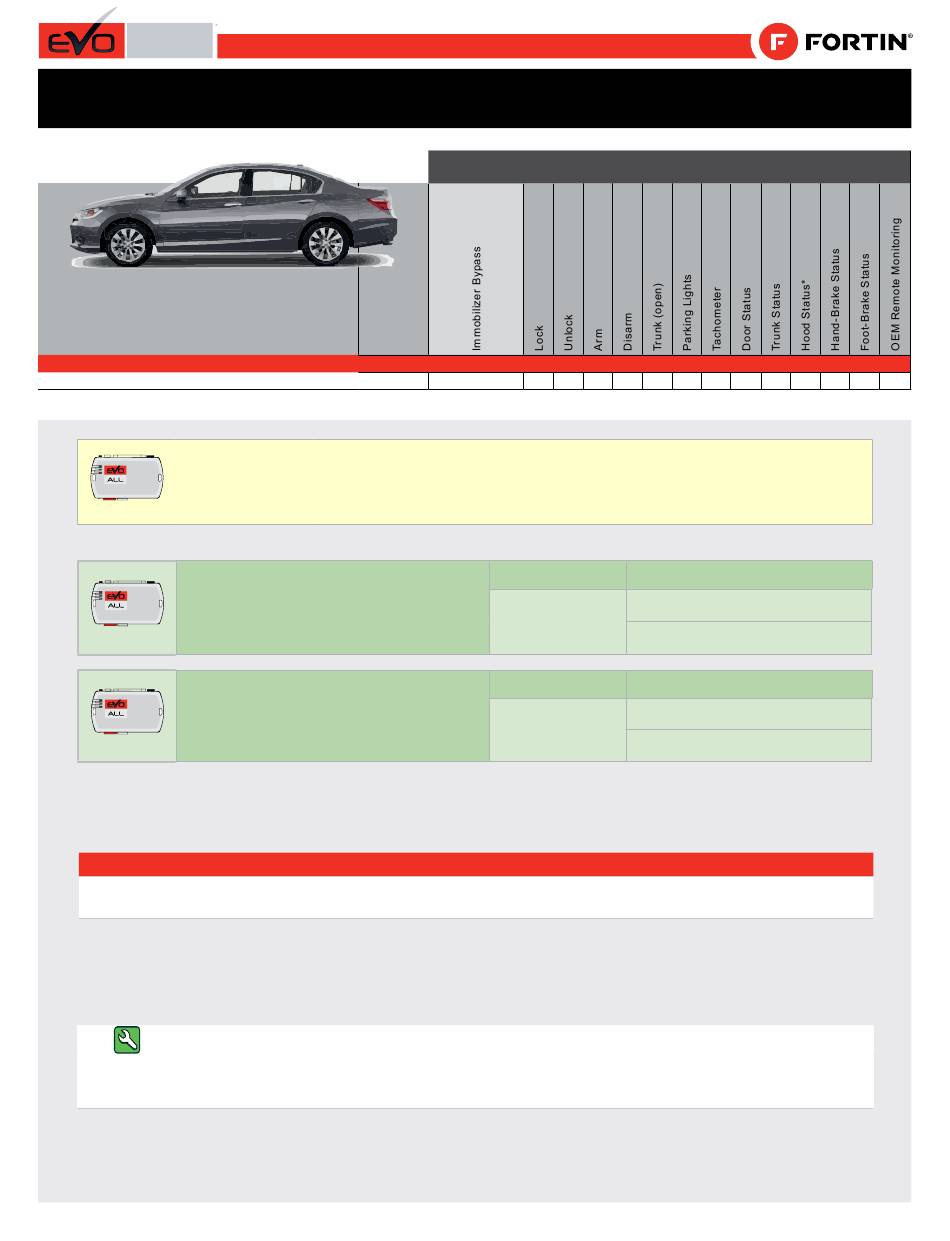

1 / 6 REV.: 20160613 Guide # 58511 Page REGULAR INSTALLATION ADDENDUM - SUGGESTED WIRING CONFIGURATION INSTALLATION RÉGULIÈRE ADDENDA - SCHÉMA DE BRANCHEMENT SUGGÉRÉ Vehicle functions supported in this diagram (functional if equipped) | Fonctions du véhicule supportées dans ce diagramme (fonctionnelles si équipé) VEHICLE YEARS VEHICULES...
Page 2
This guide may change without notice. See www.fortin.ca for latest version. 2 / 6 Page Ce guide peut faire l’objet de changement sans préavis. Voir www.fortin.ca pour la récente version. DESCRIPTION | DESCRIPTION Clutch switch Commutateur d'ignition (+)CLUTCH SWITCH Ignition key barrel...
Page 3
This guide may change without notice. See www.fortin.ca for latest version. 3 / 6 Page Ce guide peut faire l’objet de changement sans préavis. Voir www.fortin.ca pour la récente version. AUTOMATIC TRANSMISSION WIRING CONNECTION | SCHÉMA DE BRANCHEMENT TRANSMISSION AUTOMATIQUE IN RS9...
Page 4
This guide may change without notice. See www.fortin.ca for latest version. 4 / 6 Page Ce guide peut faire l’objet de changement sans préavis. Voir www.fortin.ca pour la récente version. MANUAL TRANSMISSION WIRING CONNECTION | SCHÉMA DE BRANCHEMENT TRANSMISSION MANUELLE RS8 OUT...
Page 5
This guide may change without notice. See www.fortin.ca for latest version. programming button: enfoncé le bouton de 5 / 6 Page Ce guide peut faire l’objet de changement sans préavis. Voir www.fortin.ca pour la récente version. Insert the 4-Pin (Data-Link) programmation: HOLD PROGRAMMING PROCEDURE | PROCÉDURE DE PROGRAMMATION connector.
Page 6
The installation in every case is the sole responsibility of the installer performing the work and FORTIN ELECTRONIC SYSTEMS assumes no liability or responsibility whatsoever resulting from any type of installation, whether performed properly, improperly or any other way.
