Summary of Contents for Srne BP Series
- Page 1 BP Series Battery Protector User Manual BATTERY Subject to change without notice Manual version: V1.01 Code: 106634...
- Page 2 Dear users: Contents Thank you for choosing our products! 1. Product Introduction 1.1 Product overview 1.2 Product features 1.3 Appearance and interfaces 2. Technical Parameters Safety Instructions 3. Product Operation and Display 3.1 [A] Protector Mode 1. The applicable voltage of some controller models exceeds the safety voltage of human 3.2 [U] System voltage body.
- Page 3 1. Product Introduction 2. Technical Parameters 1.1 Product overview Product model BP4860N25 BP4885N25 BP48100N25 [Battery charge protector] is a device for real-time monitoring and protecting battery charging Battery voltage 12V/24V/36V/48V voltage, which can prevent the battery from over-charge. Static power [Battery discharge protector] is device for monitoring and protecting battery discharge voltage, ≤50mA consumption...
- Page 4 3. Parameter Setting 3.4. Remote switch Connect: charging or discharging 3.1 [A] Protector Mode Disconnect: stop charging and discharging 3.5 Restore to factory settings Display Setting range Meaning C (default) Charge protector Hold down the button for at least 20 seconds until the 7-segment display shows "8.", then release the button to restore to factory settings.
- Page 5 6.2. Historical data 5. Communication 6.2 历史数据 1). Default baud rate 9,600bps, check bit: none, data bit: 8bit, stop bit: 1bit 2). Output specification of communication power supply: (12V±3V)/100mA Definition VCC communication power ① supply output ② Protector receiver (RX) ③...

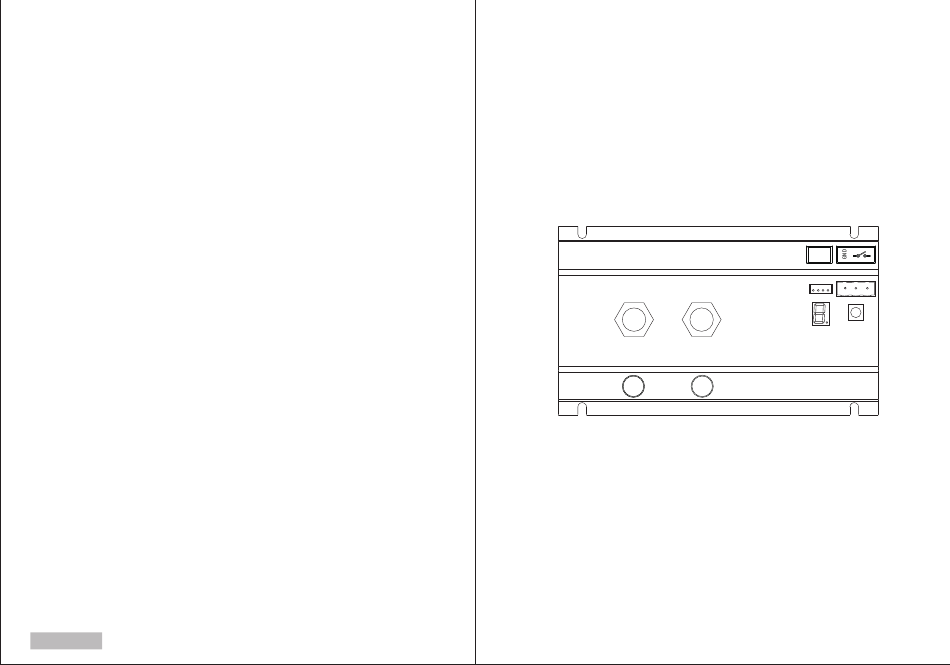

- Page 6 6.4. Equipment information 6.4. Equipment information [Restore to factory defaults] -- Restore to the factory default setting [Disconnect Device] -- Disconnect the APP with the protector [Search Device] -- Search for the protector in the device list via Bluetooth 7. Product Dimensions Product name: BP4885N25 Product name: BP4860N25 Product dimensions: 166*96,5*60mm...
