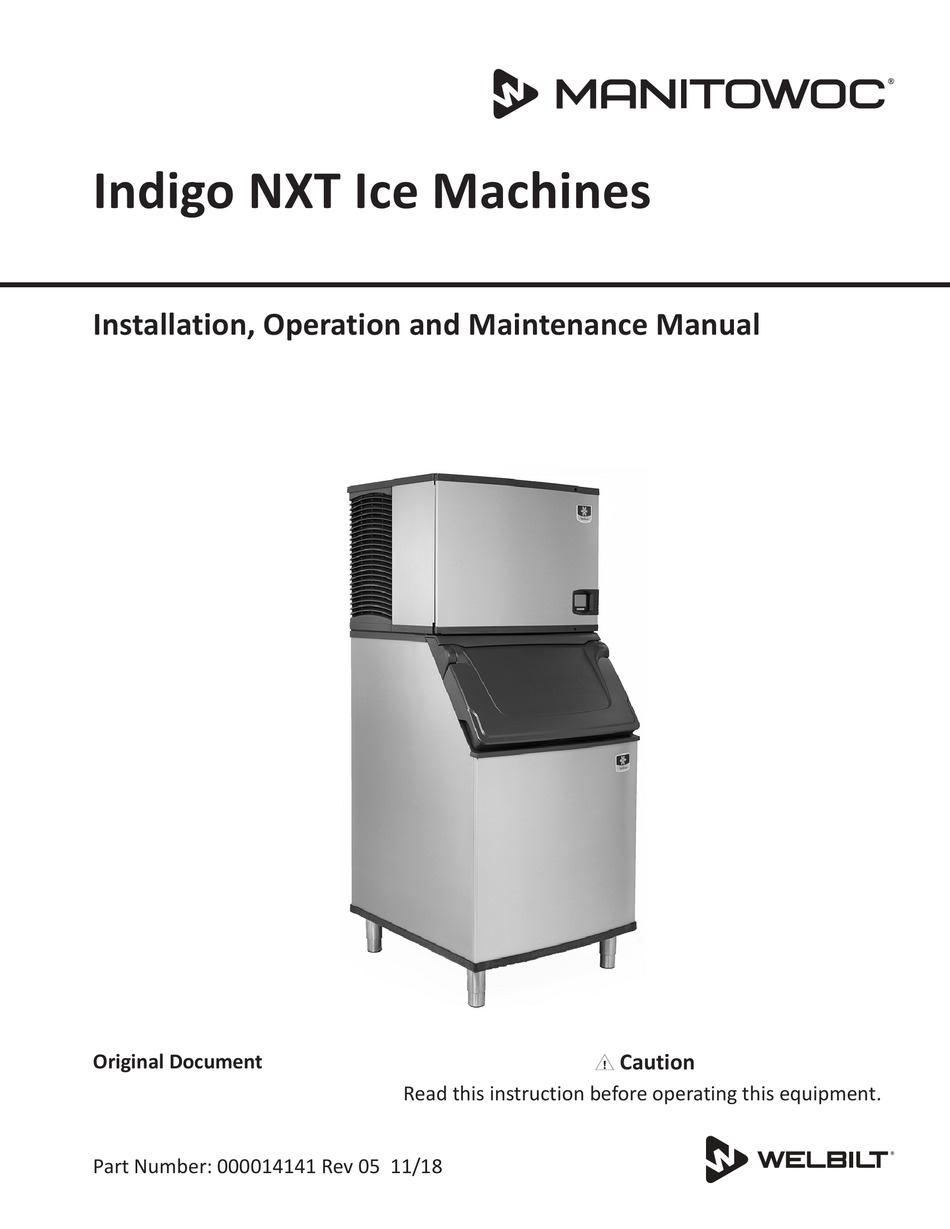

- Page 1 Indigo NXT Ice Machines Installation, Operation and Maintenance Manual Caution Original Document Read this instruction before operating this equipment. Part Number: 000014141 Rev 05 11/18...
- Page 3 Safety Notices Definitions Safety Notices DANGER Indicates a hazardous situation that, if not Read these precautions to prevent avoided, will result in death or serious personal injury: injury. This applies to the most extreme • Read this manual thoroughly before situations.
- Page 4 Warning Follow these precautions to prevent personal injury during installation of this equipment: • Installation must comply with all • Legs or casters must be installed and applicable equipment fire and health the legs/casters must be screwed in codes with the authority having completely.
- Page 5 DANGER Follow these flammable refrigeration system requirements during installation, use or repair of this equipment. • Refer to nameplate - Ice machine models • All lockout and tag out procedures may contain up to 150 grams of R290 must be followed when working on this (propane) refrigerant.
- Page 6 Warning Warning Follow these electrical requirements Follow these precautions to prevent during installation of this equipment. personal injury while operating or maintaining this equipment: • All field wiring must conform to all applicable codes of the authority • Read this manual thoroughly before having jurisdiction.
- Page 7 DANGER Follow these precautions to prevent personal injury during use and maintenance of this equipment: • It is the responsibility of the equipment • Units with two power cords must be owner to perform a Personal Protective plugged into individual branch circuits. Equipment Hazard Assessment to ensure During movement, cleaning or repair it is adequate protection during maintenance...
- Page 8 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 9: Table Of Contents
Table of Contents Safety Notices Safety Notices ................3 Section 1 General Information Model Numbers ..............11 Accessories ................11 How To Read A Model Number ..........12 Section 2 Installation Installation ................13 Location Requirements ............13 Installation Requirements ............13 Ice Machine Heat of Rejection .......... - Page 10 Table of Contents (continued) Section 3 Operation Touch Screen Features ............. 35 Home Screen Icon Descriptions ..........36 Setup Wizard ................37 Menu Screen Navigation ............38 Ice Making Sequence of Operation .......... 39 Control Board Timers ............... 39 Minimum/Maximum Slab Weight ..........41 Ice Thickness Check ..............
-
Page 11: General Information
Section 1 General Information Model Numbers Self- Self- Contained Remote Air- This manual covers the following models: Contained Water- Cooled Air-Cooled Self- Cooled Self- Contained Remote Air- Contained IDT1900A IDT1900W IDT1900N Water- Cooled Air-Cooled IYT1900A IYT1900W IYT1900N Cooled IRT1900A ---- IRT1900N IDF0300A IDF0300W... -
Page 12: How To Read A Model Number
General Information Section 1 Top Air Discharge Kit LuminIce® II The top air discharge kit can be used on The LuminIce® growth inhibitor recirculates select ice machine models. This kit directs the air in the ice machine foodzone over warm exhaust air upward rather than out a UV bulb. -
Page 13: Installation
Section 2 Installation Installation Installation Requirements • The ice machine and bin must be level. Location Requirements • Vent the ice machine and bin drains The location selected for the ice machine separately. head section must meet the following • Bin drain termination must have an air criteria. -
Page 14: Ice Machine Heat Of Rejection
Installation Section 2 Ice Machine Heat of Rejection Minimum/Maximum Temperatures Minimum Air Maximum Air Ice Machine Heat of Rejection Model Temperature Temperature Series Peak All Ice Conditioning 35°F 110°F Machine IF0300 4600 5450 Head 2°C 43°C IT0420 3800 6000 Sections IT0450 3800 6000... - Page 15 Section 2 Installation Clearance Requirements Self- Self- Self- Water-Cooled IF0300 Contained Contained IT1200 Contained or Remote Air-Cooled Water-Cooled Air-Cooled Condenser Top/Sides 16" (40 cm) 8" (20 cm) 8" (20 cm)* 8" (20 cm)* Back 5" (13 cm) 5" (13 cm) Sides 12"...
-
Page 16: Air Baffle
Installation Section 2 Bin Installation Requirements Condensing Unit Clearance Requirements Top/ • The installation area must be capable of Model Back Front Sides supporting the combined weight of the CVDF0600 equipment and product. CVDF0900 • All ice machines installed on a bin CVDT1200 0"... -
Page 17: Bin Installation
Section 2 Installation Bin Installation Dispenser Installation NOTE: When using casters, the units must Observe following recommendations unless be tethered or secured to comply with all required by the dispenser manufacturer. applicable codes. Swivel casters must be • An adapter is not required for ice mounted on the front and rigid casters machines that match the dispenser size. -
Page 18: Electrical Requirements
Installation Section 2 Electrical Requirements Minimum Circuit Ampacity The minimum circuit ampacity is used to All electrical work, including wire routing help select the wire size of the electrical and grounding, must conform to local, state supply. (Minimum circuit ampacity is not and national electrical codes. -
Page 19: Maximum Breaker Size & Minimum Circuit Amperage Chart
Section 2 Installation Maximum Breaker Size & Minimum Circuit Amperage Chart NOTE: Due to continuous product improvements, this information is for reference only. Please refer to the ice machine data plate to verify electrical data. Data plate information overrides information listed on this page. Air-Cooled Water-Cooled Remote Condenser... - Page 20 Installation Section 2 Air-Cooled Water-Cooled Remote Condenser Maximum Maximum Maximum Voltage/ Minimum Minimum Minimum Fuse/ Fuse/ Fuse/ Machine Phase/Cycle Circuit Circuit Circuit Circuit Circuit Circuit Amps Amps Amps Breaker Breaker Breaker 208-230/ - - - - - - 1/60 IT0750 230/1/50 - - - - - -...
- Page 21 Section 2 Installation QuietQube Head Sections Voltage/Phase/ Maximum Fuse/ Minimum Circuit Ice Machine Total Amps Cycle Circuit Breaker Amps 115/1/60 15 amp - - - Ice Beverage Models 230/1/50 15 amp - - - All on IB 115/1/60 15 amp - - - QuietQube 230/1/50...
-
Page 22: Water Supply And Drain Line Sizing/Connections
Installation Section 2 Water Supply and Drain Line Sizing/Connections Tubing Size up Water Ice Machine Location Water Pressure to Ice Machine Temperature Fitting Fitting 20 psi (140 kPa) 3/8" (10 mm) Ice Making 40°F (4.4°C) Min. Min. 3/8" Female Pipe minimum inside Water Inlet 90°F (32°C) Max. -
Page 23: Water Supply And Drain Connections
Section 2 Installation Water Supply and Drain Connections Item Description Electrical Entrance Vent Tube - Minimum Height 18" (46 cm) Potable Water Inlet - 3/8" FPT Potable Water Drain - 1/2" FPT Condenser Water Outlet - 1/2" FPT Water-cooled Models Only Install Separate Drain When Used Condenser Water Inlet See “Condenser Water Inlet”... -
Page 24: Cooling Tower Applications (Water-Cooled Models)
Installation Section 2 Cooling Tower Applications Drain Connections (Water-Cooled Models) Follow these guidelines when installing drain lines to prevent drain water from A water cooling tower installation does not flowing back into the ice machine and require modification of the ice machine. storage bin: •... -
Page 25: Remote Condenser And Condensing Unit Refrigeration System Installation
Section 2 Installation Remote Condenser and Condensing Unit Refrigeration System Installation Each ice machine head section ships from the factory with a refrigerant charge appropriate for the entire system operation. The serial tag on the ice machine indicates the refrigerant charge. Additional Refrigerant QuietQube®... -
Page 26: Calculating Installation Distances
Installation Section 2 Remote Condenser Models CALCULATIG ISTALLATIO DISTACES Additional Amount Line Set Length of Refrigerant The maximum tubing length is 100 feet (30 to Be Added to meters). Remote ameplate Charge Machine Condenser Line Set Rise/Drop for 50' to 100' (15 to 30 Meter) The maximum rise is 35 feet (10.7 meters). -
Page 27: Remote Condenser Models
Section 2 Installation Add together the calculated rise, REMOTE CODESER MODELS calculated drop, and horizontal Step 1 Secure the Condenser. distance to get the total calculated Through-holes are provided to secure distance. If this total exceeds 150 feet the condenser to a curb, rack or wooden (45 meters), move the condenser/ timber. -
Page 28: Quietqube Models
Installation Section 2 When lengthening or shortening lines, QUIETQUBE MODELS follow good refrigeration practices, purge Step 1 Secure the Condensing Unit. with nitrogen and insulate all tubing. Do Through-holes are provided to secure the not change the tube sizes. Evacuate the condensing unit to a curb, rack or wooden lines and place about 5 oz (145 grams) of timber. - Page 29 Section 2 Installation ALTERATE COECTIOS VALVES MUST AT CODESIG UIT REMAI CLOSED AD SCHRADER VALVES BE PROTECTED FROM HEAT WHE BRAZIG (WRAP WITH WET RAG) Step 3 Pressure Test and Evacuate Line Set and CVD Condensing Unit. • Shutoff valves for the line set must remain closed until pressure testing and evacuation are complete.
- Page 30 Installation Section 2 Step 4 Open Valves for the Line Set and Receiver. You will not hear refrigerant flow when the valves are opened. Refrigerant will not flow until the ice machine is started and the USE ALLE WRECH solenoid valve opens. TO OPE (TUR COUTERCLOCKWISE) •...
- Page 31 Section 2 Installation Step 5 Leak-Check the Refrigeration The following insulation requirements System. prevent condensation at 90° F (32°C) ambient temperature and 90% relative A. Connect power to the ice machine humidity. If higher humidity is expected, head section - Do not connect increase insulation thickness: power to the CVD condensing unit.
-
Page 32: Starting The Ice Machine
Installation Section 2 Starting the Ice Machine Warranty Starting the ice machine and completing For warranty information visit: the Operational Checks are the www.manitowocice.com/Service/Warranty responsibilities of the owner/operator. • Warranty Coverage Information Adjustments and maintenance procedures • Warranty Registration outlined in this manual are not covered by •... -
Page 33: Remote Ice Machine Usage With Non-Manitowoc Multi-Circuit Condensers
Section 2 Installation Remote Ice Machine Usage with on- Design & Burst Pressure Manitowoc Multi-Circuit Condensers Design Pressure 600 psig - 4137 kPa Burst Pressure 2500 psig - 17237 kPa Warranty Head Pressure Control Valve The sixty (60) month compressor warranty, including thirty six (36) month labor Do not use a fan cycling control to try to replacement warranty, shall not apply when... - Page 34 Installation Section 2 Heat of Rejection Model Peak Average IT0500N 6900 6100 IF0600N 13900 9000 IF0900N 16000 13000 IT1200N 24500 20700 IT1500N 27000 23000 IT1900N 30500 26100 Refrigerant Charge The ice machine model/serial tag lists the refrigerant amount. Remote condensers and line sets contain a vapor charge only.
-
Page 35: Operation
Section 3 Operation Lock/Unlock Screen Power Button Cleaning Button Screen Locked or 11/18/2018 10:42 AM Unlocked Alert Icon LuminIce MAKING ICE Notification Icon Service Locater Menu Icon Information Touch Screen Features Touchscreen Home screen allows viewing of ice machine The Indigo® NXT control panel offers a status, alerts and messages. -
Page 36: Home Screen Icon Descriptions
Operation Section 3 HOME SCREEN ICON DESCRIPTIONS Icon Description Home Screen Center portion of the screen displays the current condition of the ice machine - Making ice, bin full, program mode or machine off Alert Alert icon with number of messages. Pressing this icon will display the alert log which will allow viewing and resetting of alerts Message Notification icon with quantity of messages. -
Page 37: Setup Wizard
Section 3 Operation Setup Wizard Setup Description Program ice machine run Screens will automatically advance after a Ice Program times or press right arrow to selection is made or press the right arrow skip this setup. to advance one screen, press left arrow Set clean or sanitize to go back one screen. -
Page 38: Menu Screen Navigation
Operation Section 3 Menu Screen Navigation Select SETTINGS Icon from the Home Screen to access Main Menu screen. Energy Service Settings Reset Defaults Ice Program Data Language Require Setup Wizard Water Usage Alert Log Reminders Backup Current Settings Statistics Manual Harvest Time &... -
Page 39: Ice Making Sequence Of Operation
Section 3 Operation Ice Making Sequence of Operation Control Board Timers The power button must be depressed and The control board has the following non- the water curtain/ice dampers must be adjustable timers: in place on the evaporator before the ice •... - Page 40 Operation Section 3 Safe Operation Mode Water Thaw Cycle Allows the ice machine to operate up to When the damper/curtain does not open 72 hours if the ice thickness probe and/or during the 7 minute harvest cycle the water level probe sensors fail. following water thaw cycle occurs: •...
-
Page 41: Minimum/Maximum Slab Weight
Section 3 Operation Minimum/Maximum Slab Weight Ice Thickness Check Adjust ice thickness to meet chart After a harvest cycle, inspect the ice cubes specifications. in the ice storage bin. The ice thickness probe is factory-set to maintain the ice Minimum Maximum bridge thickness at 1/8"... -
Page 42: Reverse Osmosis Or Deionized Water Usage
Operation Section 3 Reverse Osmosis or Deionized Water Usage When using water with low total dissolved solid content (low TDS) the water level probe sensitivity can be increased by moving the jumper over one pin. The Electronic Control Board diagram shows the default position of the jumper covering the left and center pins. -
Page 43: Maintenance
Section 4 Maintenance Cleaning and Sanitizing Exterior Cleaning Clean the area around the ice machine as General often as necessary to maintain cleanliness You are responsible for maintaining and efficient operation. the ice machine in accordance with the Wipe surfaces with a damp cloth rinsed instructions in this manual. -
Page 44: Cleaning/Sanitizing Procedure
Maintenance Section 4 Cleaning/Sanitizing Procedure Step 2 Remove all ice from the bin/ dispenser. Caution Step 3 Press the Clean button and select Use only Manitowoc approved Ice “Turn off when complete”. Water will flow Machine Cleaner and Sanitizer for this through the water dump valve and down application (Manitowoc Cleaner part the drain. -
Page 45: Sanitizing Procedure
Section 4 Maintenance Step 4 Wait until the clean cycle is Step 8 While components are soaking, complete (approximately 24 minutes). Then use half of the cleaner/water solution disconnect power to the ice machine (and to clean all food zone surfaces of the ice dispenser when used). -
Page 46: Parts Removal For Cleaning/Sanitizing
Maintenance Section 4 Step 11 Use half of the sanitizer/water Step 14 Close and secure the front door. solution to sanitize all food zone surfaces The ice machine will automatically start ice of the ice machine and bin (or dispenser). making after the sanitize cycle is complete Use a spray bottle to liberally apply the (approximately 24 minutes). - Page 47 Section 4 Maintenance D. Remove the water level probe E. Remove the water distribution tube(s) • Pull the water level probe straight down NOTE: Thumbscrews for the distribution to disengage. tube are retained to prevent loss. Loosen thumbscrews, but do not pull thumbscrews •...
-
Page 48: Preventative Maintenance Cleaning Procedure
Maintenance Section 4 Preventative Maintenance Cleaning Step 3 Press the Clean button and select “Make ice when complete”. Water will flow Procedure through the water dump valve and down This procedure cleans all components in the drain. Wait approximately 1 minute the water flow path, and is used to clean until the water trough refills and the display the ice machine between the bi-yearly... -
Page 49: Cleaning The Air Filter And Condenser
Section 4 Maintenance Cleaning the Air Filter and Condenser Removal from Service/Winterization The washable filter on self-contained ice All Models machines is designed to catch dust, dirt, lint Clean and sanitize the ice machine. and grease. Clean the filter once a month Turn off the water supply, disconnect with mild soap and water. - Page 50 Maintenance Section 4 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 000014141 Rev 05 11/18...
-
Page 51: Troubleshooting
Section 5 Troubleshooting Before Calling for Service Checklist If a problem arises during operation of your ice machine, follow the checklist below before calling service. Routine adjustments and maintenance procedures are not covered by the warranty. Problem Possible Cause To Correct Ice machine does not No electrical power to the ice Replace the fuse/reset the... - Page 52 Troubleshooting Section 5 Problem Possible Cause To Correct Ice machine does not cycle The six-minute freeze time Wait for the freeze lock-in to into harvest mode. lock-in has not expired yet. expire. Ice thickness probe is dirty. Clean and sanitize the ice machine.
-
Page 53: Service Faults
Section 5 Troubleshooting Problem Possible Cause To Correct Low ice capacity. Water inlet valve filter screen Remove the water inlet valve is dirty. and clean the filter screen. Incoming water supply is shut Open the water service valve. off. Water inlet valve stuck open Press the power button and or leaking. - Page 54 Troubleshooting Section 5 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 000014141 Rev 05 11/18...
- Page 56 844-724-2273 WWW.MANITOWOCICE.COM WWW.WELBILT.COM Welbilt provides the world’s top chefs, and premier chain operators or growing independents with industry leading equipment and solutions. Our cutting- edge designs and lean manufacturing tactics are powered by deep knowledge, operator insights, and culinary expertise.
