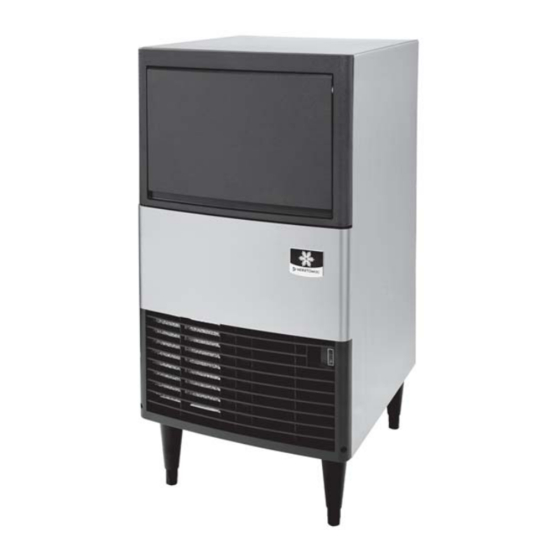

Summary of Contents for Welbilt Manitowoc U65

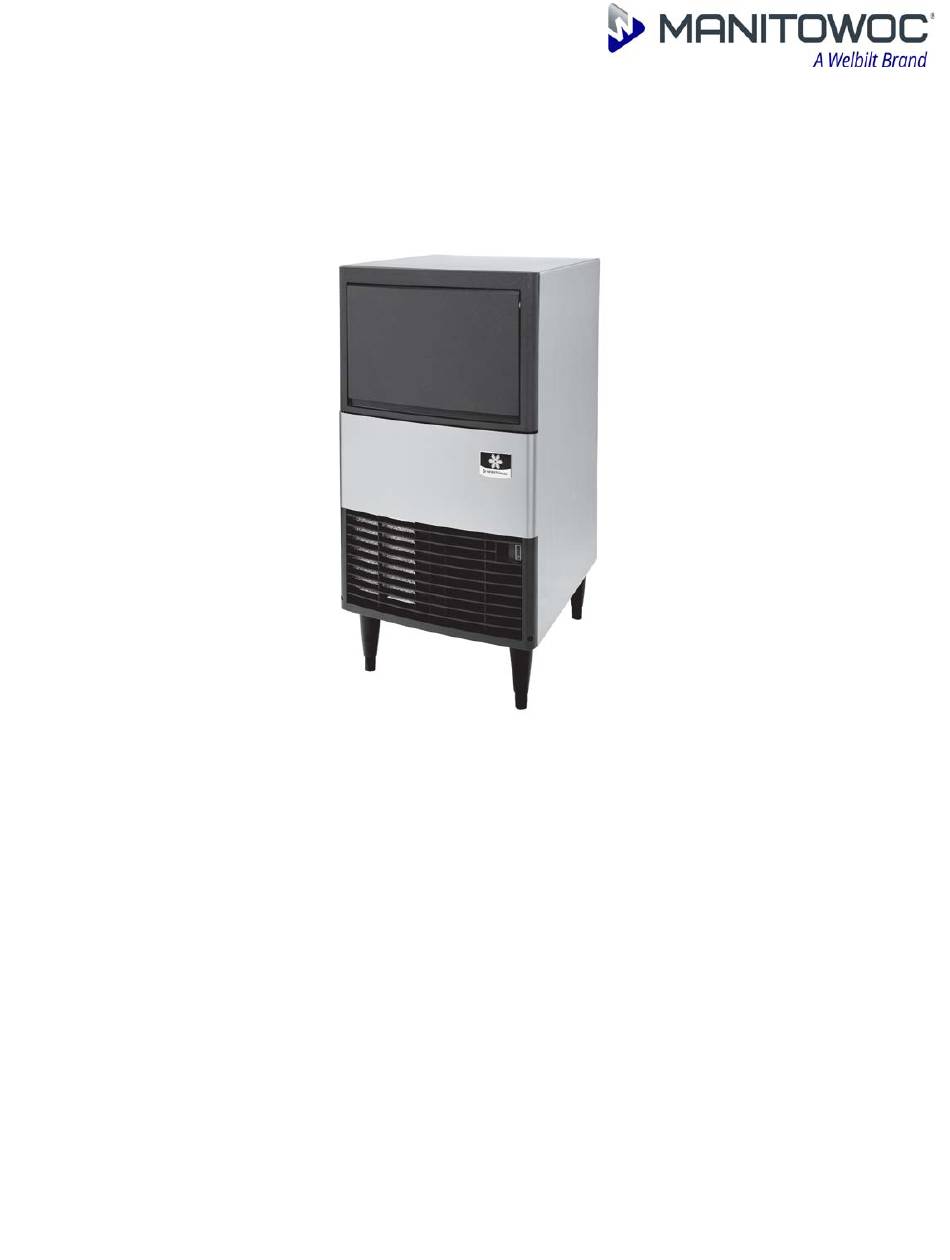

- Page 1 UnderCounter Model Installation, Use & Care Manual This manual is updated as new information and models are released. Visit our website for the latest manual. www.manitowocice.com America’s #1 Selling Ice Machine Part Number 040006019 07/18...
- Page 3 Safety Notices Notice Indicates information considered important, but not Safety Notices hazard-related (e.g. messages relationg to property Read these precautions to prevent personal injury: damage). • Read this manual thoroughly before operating, NOTE: Indicates useful, extra information about the installing or performing maintenance on the procedure you are performing.
- Page 4 DANGER DANGER Do not operate equipment that has been misused, Follow these precautions to prevent personal injury abused, neglected, damaged, or altered/modified from during use and maintenance of this equipment: that of original manufactured specifications. This • It is the responsibility of the equipment owner to appliance is not intended for use by persons (including perform a Protective Equipment Hazard Assessment children) with reduced physical, sensory or mental...
-
Page 5: Table Of Contents
Table of Contents Section 1 General Information Model/Serial Number Location ..............Owner Warranty Registration Card ............Section 2 Installation Instructions General ......................... Dimensions ......................Location of Ice Machine ................Ice Machine Heat of Rejection ..............Leveling the Ice Machine ................Electrical Service ..................... - Page 6 Table of Contents (continued) Section 4 Maintenance Interior Cleaning and Sanitizing ..............GENERAL ……………………………………………………………………… CLEANING AND SANITIZING PROCEDURE ……………………………… Exterior Cleaning ................Ice Machine Inspection ..............Cleaning The Condenser ..............Removal from Service/Winterization ............Section 5 Before Calling for Service Checklist ......................
-
Page 7: General Information
The model and serial number are listed on the OWNER in the space provided below. These numbers are WARRANTY REGISTRATION CARD. They are also required when requesting information from your Welbilt listed on the MODEL/SERIAL NUMBER DECAL affixed distributor, service representative, or the factory. -
Page 8: Owner Warranty Registration Card
NOTE: If the dealer you purchased the ice machine from of original installation. is not authorized to perform warranty service, contact your Welbilt distributor or Welbilt Inc. for the name of the nearest authorized service representative. SERVICE CALLS Normal maintenance, adjustments and cleaning as outlined in this manual are not covered by the warranty. - Page 9 (2) replace the Product with one that is new or IN NO EVENT SHALL Welbilt or any of its affiliates BE at least as functionally equivalent as the original, or (3) LIABLE TO THE CONSUMER OR ANY OTHER person refund the purchase price for the Product.
- Page 10 General Information Section 1 THIS PAGE INTENTIONALLY LEFT BLANK Part Number 040006019 07/18...
-
Page 11: Installation Instructions
Section 2 Installation Instructions General These instructions are provided to assist the qualified installer. Dimensions 50.00cm 79.00cm 57.00cm Part Number 040006019 07/18... -
Page 12: Location Of Ice Machine
Installation Instructions Section 2 Location of Ice Machine Ice machines, like other refrigeration equipment, reject heat through the condenser. It is helpful to know the The location selected for the ice machine must meet the amount of heat rejected by the ice machine when sizing following criteria. -
Page 13: Electrical Service
Section 2 Installation Instructions Electrical Service Warning Warning All wiring must conform to local, state and national Never use an extension cord. If an outlet is not codes. within reach of the ice machine’s power cord, have a proper amperage outlet wired closer to the ice machine. -
Page 14: Electrical Cord Strain Relief
Installation Instructions Section 2 ELECTRICAL CORD STRAIN RELIEF TERMINAL BLOCK WIRE CONNECTION To prevent strain at the electrical connection inside the Warning ice machine, an electrical cord strain relief device must Always disconnect power to the ice machine before be installed on the rear panel of the ice machine. working on electrical circuitry. -
Page 15: Water Service/Drains
Insulate water lines to prevent condensation. • Important Important If you are installing a Welbilt Tri-Liminator water The water inlet line is connected to the water filter system, refer to the Installation Instructions valve. This valve is located just behind the front supplied with the filter system for ice making water panel of the ice machine. - Page 16 Installation Instructions Section 2 OVERFLOW TUBE DRAIN HOLE ICE MAKING/BIN WATER DRAIN TUBING 1.59 cm (5/8”) MINIMUM INSIDE DIAMETER ICE MAKING WATER INLET TUBING 0.95 cm (3/8”) MINIMUM INSIDE DIAMETER Typical Water Supply and Drain Line Sizing and Connections Part Number 040006019 07/18...
-
Page 17: Operation
Section 3 Operation Sequence of Operation Control Board Relays Ice Making Sequence Length of of Operation Hot Gas Valve Water Pump Compressor “ON” Time Water Fill Valve Fan Motor Start-Up* 2.9 Minutes 1.Water Purge (175 Seconds) 2.Refrigeration 5 Seconds System Start-Up 3.Freeze Cycle Automatically deter- mined... -
Page 18: Ice Thickness Adjustment
200 - 270g 2. During the third harvest cycle open the bin door and (7 - 9-oz) contact the Welbilt Service Department for catch the entire slab of ice. further assistance. - Page 19 Warning ! Caution Disconnect electric power to the ice machine at the Use only Welbilt approved Ice Machine Cleaner electric switch box before proceeding. (part number 94-0546-3) and Sanitizer (part number 94-0565-3). It is a violation of Federal law to use these solutions in a manner inconsistent with step 6 Remove parts for cleaning.
- Page 20 Maintenance Section 4 • Disconnect the water pump discharge hose • Evaporator plastic parts – including top, from the distribution tube and water pump. bottom and sides C. Remove the Water Pump • Bin bottom, sides and top • Disconnect the water pump power cord. Rinse all areas thoroughly with clean water.
- Page 21 Section 4 Maintenance Exterior Cleaning step 18 Mix a solution of sanitizer and warm water. Clean the area around the ice machine as often as Solution Type Water Mixed With necessary to maintain cleanliness and efficient 120 ml (4 oz) san- Sanitizer 23L.
- Page 22 Maintenance Section 4 Cleaning The Condenser 4. Use a commercial condenser coil cleaner. Follow the directions and cautions supplied with the Warning cleaner. Disconnect electric power to the ice machine at the 5. Straighten any bent condenser fins with a fin comb. electric service switch...
- Page 23 Section 5 Before Calling for Service Checklist If a problem arises during operation of your ice machine, follow the checklist below before calling for service. Problem Possible Cause To Correct Replace the fuse/reset the breaker/turn on No electrical power to the ice machine the main switch Ice machine does not operate Toggle switch set improperly...
- Page 24 Before Calling for Service Section 5 Problem Possible Cause To Correct Be sure the overflow tube is fully seated to Water level is low prevent water leakage Remove the water inlet valve and clean Water inlet valve filter screen is dirty the filter screen Water filtration is poor Replace the filter...
- Page 26 © 2010 Welbilt Continuing product improvements may necessitate change of specifications without notice. Part Number 040006019 07/18 MANITOWOC ICE 2110 South 26th Street, Manitowoc, WI 54220 Ph: 844-724-2273 Visit us online at: WWW.MANITOWOCICE.COM...
