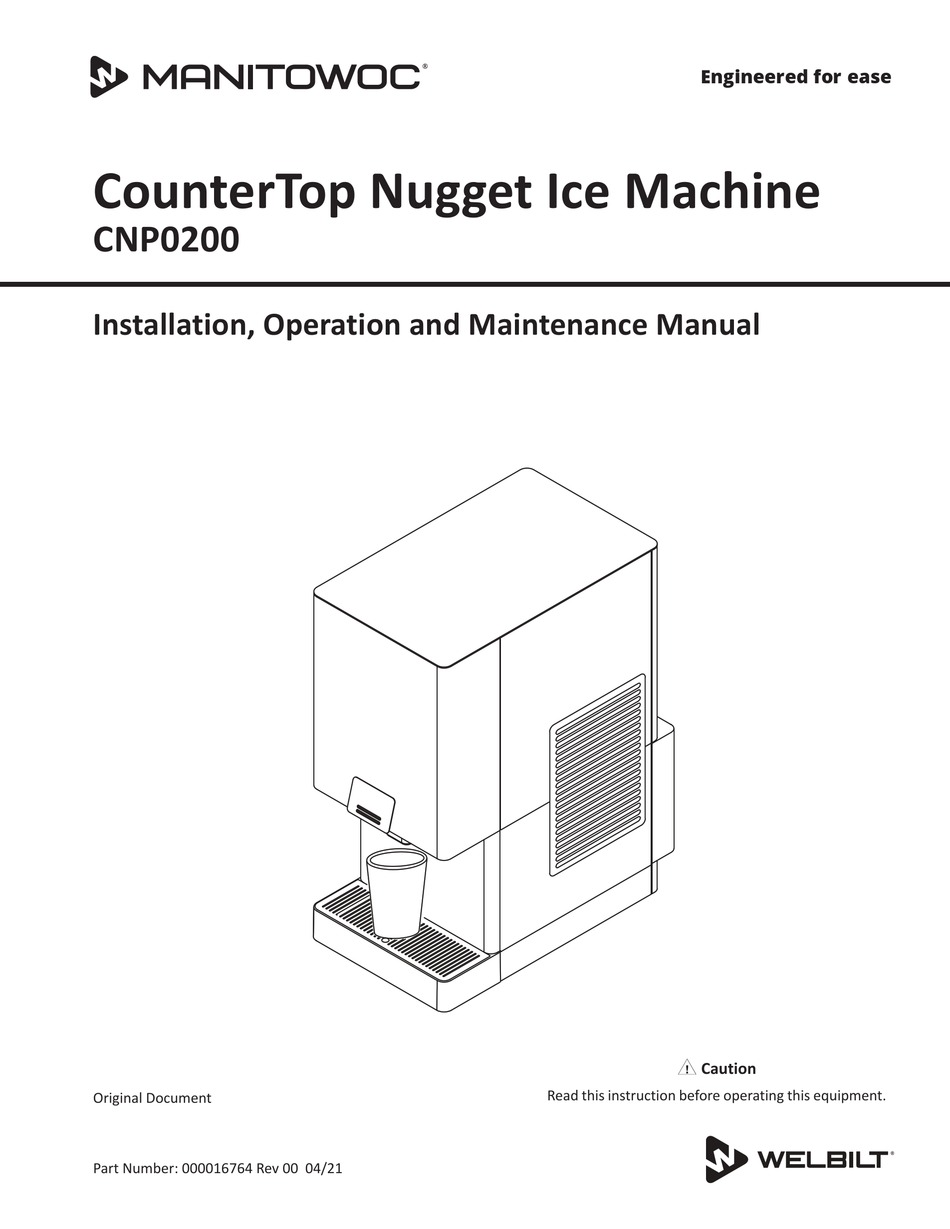

- Page 1 Engineered for ease CounterTop Nugget Ice Machine CNP0200 Installation, Operation and Maintenance Manual Caution Read this instruction before operating this equipment. Original Document Part Number: 000016764 Rev 00 04/21...
- Page 3 Safety Notices Definitions Safety Notices DANGER Indicates a hazardous situation that, if not avoided, will Read these precautions to prevent personal injury: result in death or serious injury. This applies to the most • Read this manual thoroughly before operating, extreme situations.
- Page 4 Warning DANGER Follow these precautions to prevent personal injury during Do not operate equipment that has been misused, abused, installation of this equipment: neglected, damaged, or altered/modified from that of • All field wiring must conform to all applicable codes of original manufactured specifications.
- Page 5 DANGER Follow these flammable refrigeration system requirements during installation, use or repair of this equipment. • Refer to nameplate - Ice machine models may contain • All lockout and tag out procedures must be followed up to 150 grams of R290 (propane) refrigerant. R290 when working on this equipment.
- Page 6 DANGER Follow these precautions to prevent personal injury during use and maintenance of this equipment: • It is the responsibility of the equipment owner to perform • Units with two power cords must be plugged into a Personal Protective Equipment Hazard Assessment individual branch circuits.
-
Page 7: Table Of Contents
Table of Contents Safety Notices Safety Notices ........................3 Section 1 Installation Location of Ice Machine ..................... 9 Ice Machine Clearance Requirements ................9 Sealing to Countertop or Stand ..................9 Electrical Service ....................... 9 Voltage ..........................9 Fuse/Circuit Breaker ......................9 Electrical Specifications ..................... - Page 8 Table of Contents (continued) THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 000016764 Rev 00 04/21...
-
Page 9: Installation
Section 1 Installation Ice Machine Clearance Requirements These instructions are provided to assist the qualified installer. Check your local phone directory for the name Sides Back of the nearest Manitowoc distributor, or call Manitowoc 50 mm 50 mm 200 mm Foodservice for information regarding start-up services. -
Page 10: Water Supply And Drain Requirements
Installation Section 1 Water Supply and Drain Requirements Before Starting the Ice Machine Caution INSTALLATION CHECKLIST √ Checklist Item Plumbing must conform to local and national codes. Is the ice machine level? Have all of the internal packing been removed? •... -
Page 11: Operation And Maintenance
Section 2 Operation and Maintenance Operation Operational Checks NOTE: The water reservoir must be 2/3 full of water before GENERAL starting the ice machine. Normally, a newly installed ice machine does not require any adjustment. INITIAL START-UP To ensure proper operation, always follow the Operational The ice machine does not have an on/off switch. -
Page 12: Interior Cleaning And Sanitizing
Operation and Maintenance Section 2 Interior Cleaning and Sanitizing Descaling/Sanitizing Procedure Step 1 Maintenance procedures covered in this manual are not Dispense all ice from the bin. covered by the warranty. Step 2 Disconnect power to the ice machine. Warning Step 3 Remove top, back and side panels. - Page 13 Section 2 Operation and Maintenance Step 10 Disassemble parts for hand cleaning/sanitizing. Remove bin cover fasteners and bin cover Disconnect ice chute wire Remove ice deflector fasteners Remove ice chute top cover and fasteners Remove ice wiper and loosen Ice chute fastener Remove deflectors and dispenser wheel Remove ice chute Remove drain pan...
-
Page 14: Air-Cooled Condenser Cleaning
Operation and Maintenance Section 2 Air-Cooled Condenser Cleaning Step 11 Hand descale and sanitize all parts using a sponge or soft bristle brush. Warning • Make 2 liters of 25% descaler solution by mixing .5 liters Disconnect electric power to the ice machine and the of white vinegar and 1.5 liters water. - Page 16 MANITOWOC ICE 2110 SOUTH 26TH STREET, MANITOWOC, WI 54220 800-545-5720 WWW.MANITOWOCICE.COM ©2021 Welbilt Inc. except where explicitly stated otherwise. All rights reserved. Part Number: 000016764 Rev 00 04/21...
