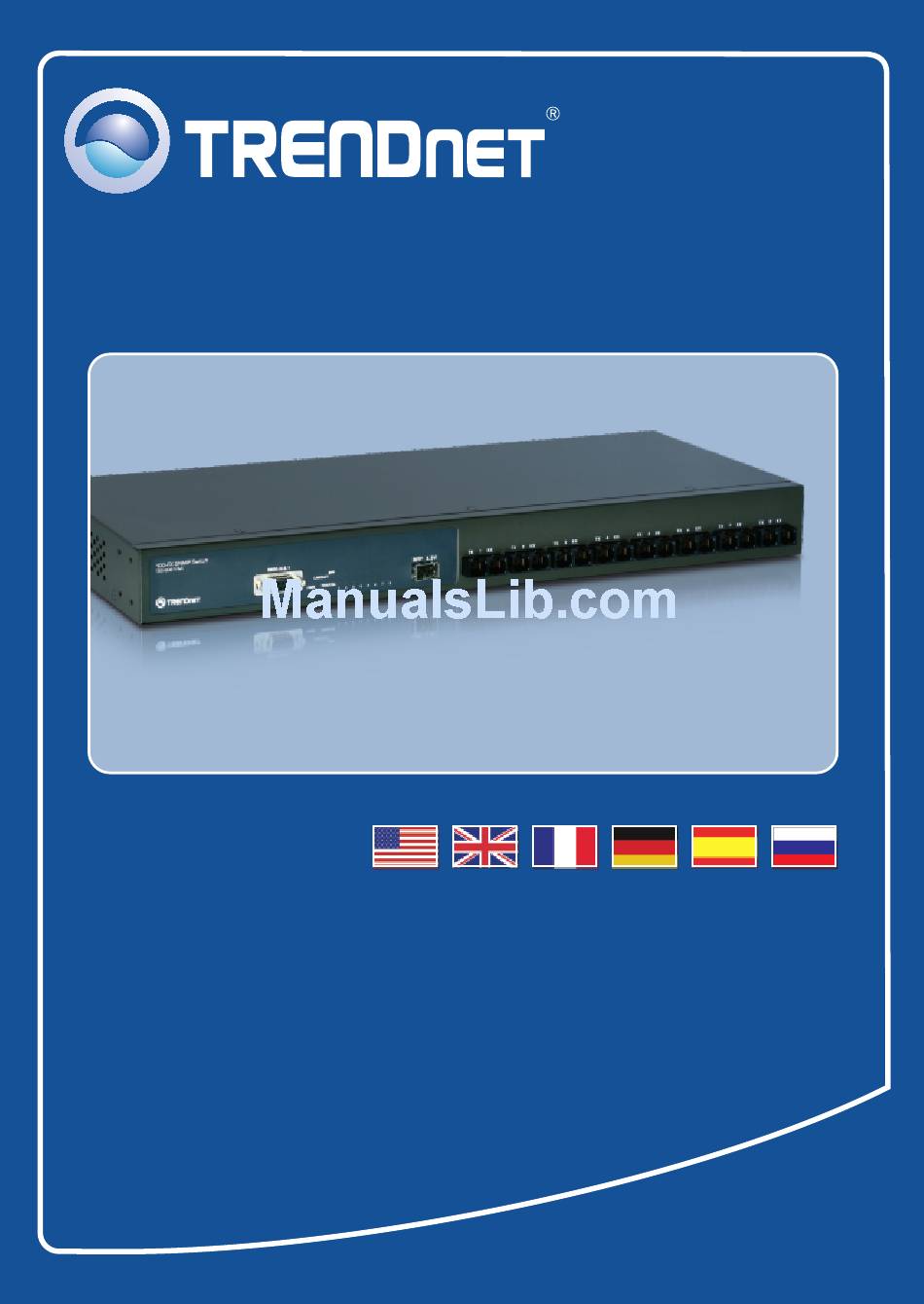

- Page 1 Quick Installation Guide TEG-S081FMi...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start 2. Hardware Installation ... 3. Configure the Switch ... Troubleshooting ... Version 12.19.2007... -
Page 3: English
Multimode or Single-mode Fiber cables with LC-type connectors for Mini-GBIC modules (optional) Mini-GBIC module (e.g. TEG-MGBSX, TEG-MGBS10, TEG-MGBS40, TEG-MGBS80, TEG-MGBS10D3_D5, TEG-MGBS40D3_D5) for Mini-GBIC slots Application 8-Port 100base-FX SNMP Layer 2 Managed Switch RS-232 Console Connection (RS-232) 16-Port 10/100/1000Mbps Gigabit Web Smart Switch with Mini-GBIC Slots... -
Page 4: Hardware Installation
2. Hardware Installation Note: After hardware installation is complete, use the Web-based Smart Utility to configure the TEG-S081FMi. To access the Web-based Smart Utility, open your web browser, and enter the default IP Address http://192.168.16.1 and default password "admin". Make sure your computer and the TEG-S081FMi are configured to the same network segment. - Page 5 2. Slide a TRENDnet mini-GBIC module into the mini-GBIC slot (optional). 3. Connect a Fiber cable to one of the ports on the switch and to a fiber connection on your network. Note: 1. TRENDnet mini-GBIC modules have LC-type fiber connectors.
-
Page 6: Configure The Switch
3. Configure the Switch Browser Configuration Note: Before the Switch can be configured, a Static IP address must be assigned on your computer's network adapter in the subnet of 192.168.16.x. Since the Switch's default IP address is 192.168.16.1, make sure no other network devices are assigned an IP address of 192.168.16.1. - Page 7 Hyper Terminal 1. Connect the RS-232 cable from a serial port on your Windows PC to the console port on your computer. 2. Go to Start > Programs > Accessories > Communications > HperTerminal 3. Enter a name, choose an icon and then click OK.
- Page 8 Flow control: None 6. Press Enter. 7. Type in the user name and password and then press Enter. By default, the user name and password is root. 8. Press Tab to navigate to Switch Static Configuration and then press Enter. English...
-
Page 9: Administration Configuration
Save and then press Enter. Then press any key to return to the previous screen. Register Your Product To ensure the highest level of customer service and support, please take a moment to register your product Online at: Thank you for choosing TRENDnet www.trendnet.com/register English... -
Page 10: Troubleshooting
Fiber connection must be Gigabit. Fourth, power down the switch. Wait 15 seconds, then plug the switch back in. I changed the IP address of the switch, but I forgot it. How do I reset my TEG-S081FMi? Follow the instructions below: 1) Connect the RS-232 cable from a serial port on your Windows PC to the console port on your computer. - Page 11 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
-
Page 12: Customer Support
Telephone: +(31) (0) 20 504 05 35 English/Espanol - 24/7 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2008. All Rights Reserved. TRENDnet.
