Summary of Contents for TRENDnet TEG-S5

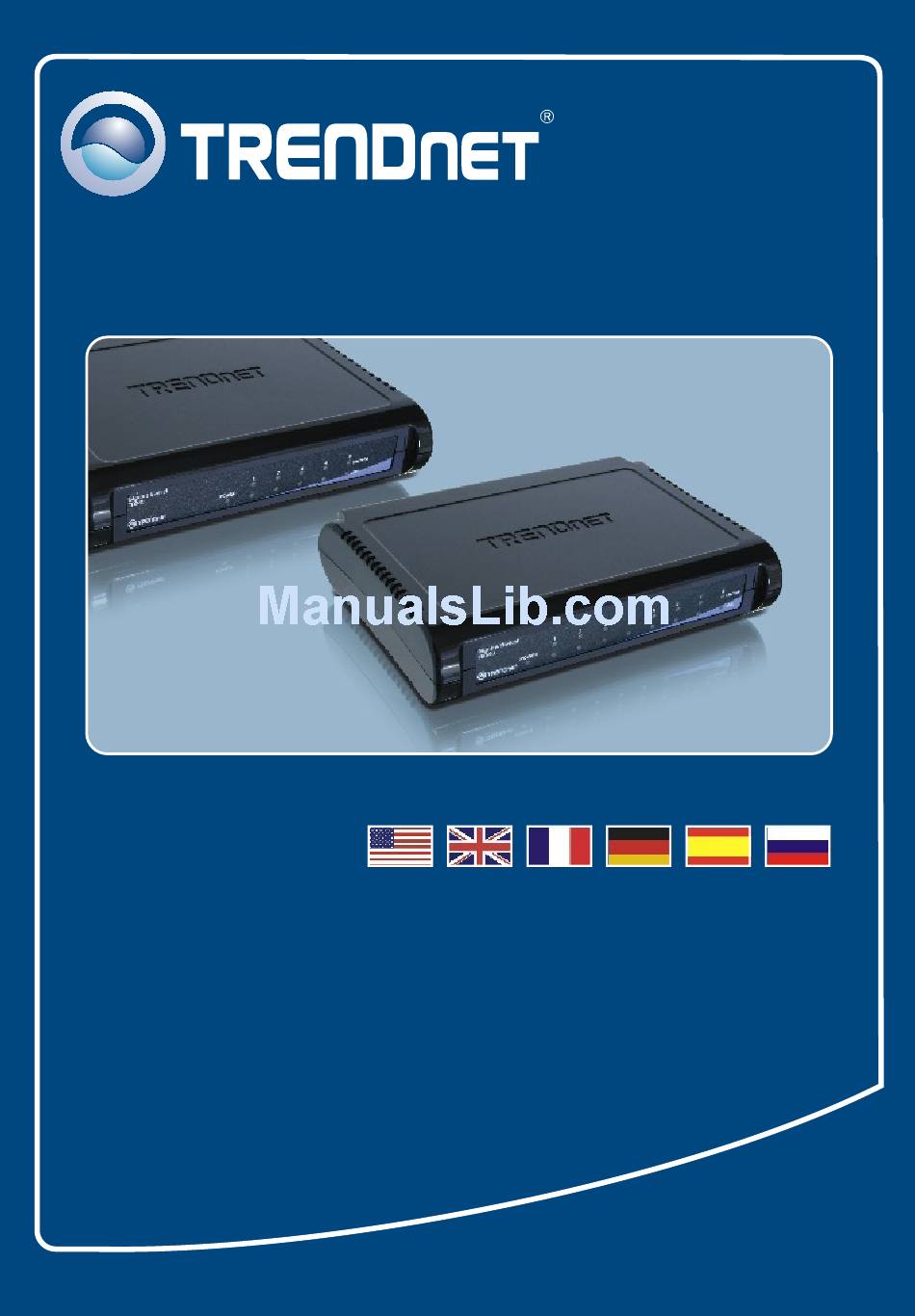

- Page 1 Quick Installation Guide TEG-S5 TEG-S8...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start 2. Hardware Installation ... Technical Specifications ... Troubleshooting ... Version 01.24.2007... -
Page 3: Installation Requirements
Workstation with Gigabit PCI Adapter (TEG-PCITXR) Laptop with Gigabit CardBus PC Card (TEG-PCBUSR) Gigabit 10/100Mbps Package Contents TEG-S5/TEG-S8 Quick Installation Guide AC Power Adapter (TEG-S5 or TEG-S8) Server with Gigabit PCI Adapter (TEG-PCITXR) 10/100Mbps Multi-Port Print Server Printers (TE100-P21) English... -
Page 4: Hardware Installation
2. Hardware Installation 1. Connect the AC Power Adapter to the TEG-S5/TEG-S8 and then to a power outlet. 2. Connect a CAT-5e or CAT-6 RJ-45 network cable from the computer to an available Ethernet port on the TEG-S5/TEG-S8. Your installation is now complete. -
Page 5: Technical Specifications
2000Mbps (full-duplex) Star Ethernet: UTP/STP CAT-3, 4, 5 Fast Ethernet: UTP/STP CAT-5, 5E , 6 Gigabit : UTP/STP CAT-5e, CAT-6 (Recommended) TEG-S5: 5 x 10/100Mbps Auto-negotiation, Auto-MDIX ports TEG-S8: 8 x 10/100Mbps Auto-negotiation, Auto-MDIX ports Per Port: LINK/ACT Per Unit: PWR... - Page 6 Operating: 10% ~ 90% 150 x 105 x 33 225g CE, FCC Performance Store-and-Forward 10Mbps Ethernet: 14,880pps (packet per second) 100Mbps Fast Ethernet: 148,800pps 1000Mbps Gigabit Ethernet: 1,488,000pps Automatic update TEG-S5: 10Gbps Forwarding Capacity TEG-S8: 16Gbps Forwarding Capacity 4K entries per device...
-
Page 7: Troubleshooting
After connecting the Switch to a power outlet, the LEDs do not turn Check the connection of the external power adapter to the TEG-S5/TEG-S8 and the power outlet. Also check that the power outlet is receiving power. When I connect a computer to the Switch port, the PWR and LINK/ACT LED turns on, but the 100/1000Mbps LED remains off or the light is yellow. - Page 8 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
- Page 9 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 10 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
-
Page 11: Product Warranty Registration
English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
