OPERATION AND INSTRUCTION MANUAL

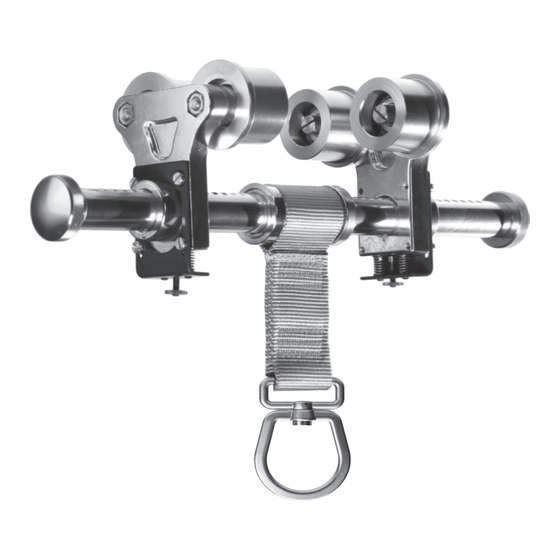

Beam Trolley Model: ST10HT
WARNING:
ALL PERSONS USING THIS EQUIPMENT MUST
READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO
SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD
BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL INDIVIDUALS WHO USE THIS PRODUCT MUST
BE PROPERLY INSTRUCTED ON HOW TO USE THE DEVICE. AVOID
CONTACT WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL,
ELECTRICAL, ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
V2.9-A
Advertisement
Table of Contents
Related Manuals for FrontLine ST10HT
Summary of Contents for FrontLine ST10HT
- Page 1 OPERATION AND INSTRUCTION MANUAL Beam Trolley Model: ST10HT WARNING: ALL PERSONS USING THIS EQUIPMENT MUST READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS EQUIPMENT.
- Page 2 PURPOSE The ST10HT is an anchorage connector designed to function as an interface between the anchorage and a fall protection, work positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage connector”...
- Page 3 (Rollers) (Rollers) (Adjustable Directions) Max 10” or 255mm Min 3” or 76mm (Notches) (Notches) (Toggle Plate) (Toggle Plate) (Secondary Safety Lock) (Secondary Safety Lock) (5,000-lbf Swivel) Component Materials: Aluminum: Cross Bar, Rollers Polyester: Webbing Zinc Plated Steel: Swivel Stainless Steel: Spring, Hardware Performance: Static tensile strength: 5000-lbf (22kN) minimum...
- Page 4 LOADING CONDITIONS DIAGRAM ACCEPTABLE LOADING 30° MAX 30° MAX Installation: 1. Locate a structural steel beam flange capable of withstanding a 5,000-lbf (22kN). static load or meeting OSHA 1926.502 requirements for a safety factor of two. Mounting location must be approved by an engineer or qualified person. 2.
- Page 5 4. Slide the adjustable rollers so that both sets of rollers are fully resting on the beam flange. 5. Release the toggle plate and pull back on the adjustable rollers to ensure the ratchet teeth are fully seated in the nearest ratchet notches. 6.
- Page 6 * DO NOT WORK * ABOVE ANCHOR POINT WORK SURFACE (ANCHOR POINT) WORK SURFACE *The user shall be equipped with a means of limiting the maximum dynamic forces exerted on the user during the arrest of a fall to a maximum of 8kN (1800-lbf ).
- Page 7 MAINTENANCE, CLEANING AND STORAGE Cleaning periodically will prolong the life and proper functionalityof the product. The frequency of cleaning should be determined by inspection and by severity of the environment. Clean with compressed air and/or a stiff brush using plain water or a mild soap and water solution. Do not use any corrosive chemicals that could damage the product.
- Page 8 LIMITED REMEDY: Upon notice in writing, Frontline Fall Protection will repair or replace all defective items at Frontline Fall Protection’s sole discretion. Frontline Fall Protection reserves the right to require that the defective item be returned to its plant for inspection before determining the appropriate course of action.
