4430FR_FTN _A
LK4430FR_FTN_A
Owners Manual

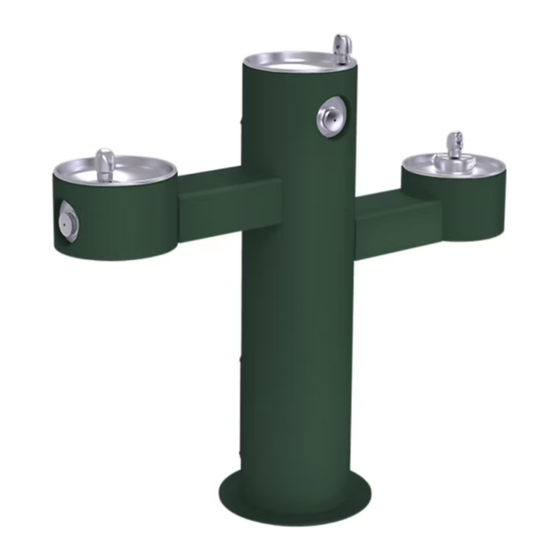

Model 4430FR Tri-Level Tubular Fountain
and Sanitary Freeze Resistant Triple Valve Control Assembly
INSTALLER
4430FR Fountains are among the easiest to install Fountains on the market today. To assure
you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS
BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE
WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After installation, save
these instructions for future reference.
PAGE 1
1000004245
(Rev. B - 01/18)
Advertisement
Related Manuals for Elkay 4430FR
Summary of Contents for Elkay 4430FR
- Page 1 Sanitary Freeze Resistant Triple Valve Control Assembly INSTALLER 4430FR Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES.
-
Page 2: Installation Instructions
4430FR_FTN _A LK4430FR_FTN_A INSTALLATION INSTRUCTIONS IMPORTANT ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON IMPORTANT! INSTALLER PLEASE NOTE. THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING. - Page 3 4430FR_FTN _A LK4430FR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4430FR FTN. WHEN USING THE SANITARYFR3 VALVE 4" PVC 1/4 BEND (SUPPLIED BY INSTALLER) 1-1/2" DRAIN TUBE (SUPPLIED BY INSTALLER) 4" PVC PIPE (SUPPLIED BY INSTALLER) CONCRETE SLAB CLEANOUT PLUG FOR ACCESS 4"...
- Page 4 4430FR_FTN _A LK4430FR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4430FR FTN. WHEN USING THE SANITARYFR3 VALVE O 14" ( 6 ) 1/2" ( 13mm ) DIA. HOLES 356mm EQUALLY SPACED ON A 1-1/2 DRAIN TUBE 12" ( 305mm ) BOLT CENTER SUPPLIED WITH FTN.
- Page 5 4430FR_FTN _A LK4430FR_FTN_A FOUNTAIN CONNECTIONS PLUMBING CONDUIT (BY INSTALLER) TO VALVE FIG. 3 INSTRUCTIONS FOR CONNECTING TUBES FROM VALVE TO FOUNTAIN(S) Step 1 - Insert the 1/8” O.D. tube(s) (Labeled A, B & J) into the connector(s) (provided with fountain). Insert the 1/8” O.D. tube(s) coming from the fountain(s) push button actuator(s) into the connector(s).
- Page 6 4430FR_FTN _A LK4430FR_FTN_A Stream Height Adjustment 5,13 SEE DETAIL B DETAIL B FIG. 4 1000004245 (Rev. B - 01/18) PAGE 6...
-
Page 7: Parts List
4430FR_FTN _A LK4430FR_FTN_A The Following Items are included with the SanitaryFR3 Valve PARTS LIST DESCRIPTION ITEM NO. PART NO. 110175443890 Hex Nut - 3/8-16 1000003964 Bracket - Regulator Mtg (Serv) 40045C Hex Nut - 1-5/16 1000003963 Triple Valve 50986C Regulator Holder 56082C Regulator Nut 56092C... - Page 8 4430FR_FTN _A LK4430FR_FTN_A 29, (4) 30, 30a, 30b 29, (4) 30, 30a, 30b 29 (4) 29 (4) Included with Sanitary Valve FIG. 7 1000004245 (Rev. B - 01/18) PAGE 8...
-
Page 9: Troubleshooting And Maintenance
66346C Kit - VR Torx Screws/Bit 97247C Blank Nameplate Insert (only) 28703C LK4430FR Nameplate Insert (only) 28703C-LK 4430FR Nameplate Insert (only) 28091C-HT Fitting - Double Male Connector 75565C Poly Tubing - 1/4" 56092C (Cut To Length) - To Bubbler Vandal-Resistant Poly Tubing - 1/8"...
