Owners Manual

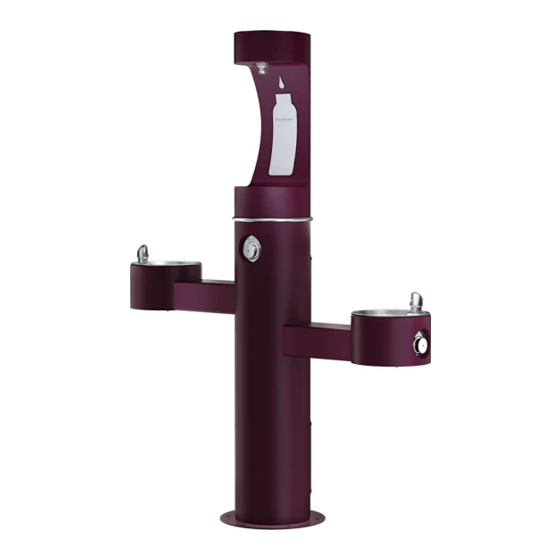

Models 4430BF1UFR*, 4430BF1LFR* and 4430BF1MFR*
Tri-Level Tubular Bottle Filler Fountain and
Sanitary Freeze Resistant Triple Valve Control Assembly
4430BF1UFR
MODEL (LK)4430BF1UFR
INSTALLER
4430BFFR Fountains are among the easiest to install Fountains on the market today. To assure
you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS
BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE
WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After installation, save these
instructions for future reference.
PAGE 1
1000004247
(Rev. C - 03/20)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Elkay 4430BF1UFR Series
Summary of Contents for Elkay 4430BF1UFR Series
- Page 1 4430BFFR_FTN _A LK4430BFFR_FTN_A Owners Manual Models 4430BF1UFR*, 4430BF1LFR* and 4430BF1MFR* Tri-Level Tubular Bottle Filler Fountain and Sanitary Freeze Resistant Triple Valve Control Assembly 4430BF1UFR MODEL (LK)4430BF1UFR INSTALLER 4430BFFR Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION.
-
Page 2: Installation Instructions
4430BFFR_FTN _A LK4430BFFR_FTN_A INSTALLATION INSTRUCTIONS IMPORTANT ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON IMPORTANT! INSTALLER PLEASE NOTE. THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING. - Page 3 4430BFFR_FTN _A LK4430BFFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE SANITARYFR3 VALVE 4" PVC 1/4 BEND (SUPPLIED BY INSTALLER) 1-1/2" DRAIN TUBE (SUPPLIED BY INSTALLER) 4" PVC PIPE (SUPPLIED BY INSTALLER) CONCRETE SLAB CLEANOUT PLUG FOR ACCESS 4" (SUPPLIED BY INSTALLER) 102mm MIN.
- Page 4 4430BFFR_FTN _A LK4430BFFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4430BF1UFR FTN. WHEN USING THE SANITARYFR3 VALVE 1-1/2 DRAIN TUBE 48" 1219mm SUPPLIED WITH FTN. AIR GAP ASSY. SUPPLIED WITH VALVE 14" 1/2" ( 13mm ) DIA. HOLES (6 PL) 356mm SPACED AS SHOWN ON A 12"...
- Page 5 4430BFFR_FTN _A LK4430BFFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4430BF1LFR FTN. WHEN USING THE SANITARYFR3 VALVE 48" 1219mm 1/2" ( 13mm ) DIA. HOLES (6 PL) 14" SPACED AS SHOWN ON A 356mm 12" ( 305mm ) BOLT CENTER 3" 76mm 10"...
- Page 6 4430BFFR_FTN _A LK4430BFFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4430BF1MFR FTN. WHEN USING THE SANITARYFR3 VALVE 48" 1219mm 1/2" ( 13mm ) DIA. HOLES (6 PL) 14" 356mm SPACED AS SHOWN ON A 12" ( 305mm ) BOLT CENTER 3" 76mm 10"...
- Page 7 4430BFFR_FTN _A LK4430BFFR_FTN_A FOUNTAIN CONNECTIONS PLUMBING CONDUIT (BY INSTALLER) TO VALVE FIG. 5 INSTRUCTIONS FOR CONNECTING TUBES FROM VALVE TO FOUNTAIN(S) Step 1 - Insert the 1/8” O.D. tube(s) (Labeled A, B & J) into the connector(s) (provided with fountain). Insert the 1/8” O.D. tube(s) coming from the fountain(s) push button actuator(s) into the connector(s).
- Page 8 4430BFFR_FTN _A LK4430BFFR_FTN_A Stream Height Adjustment 5,13 SEE DETAIL B DETAIL B FIG. 6 1000004247 (Rev. C - 03/20) PAGE 8...
-
Page 9: Parts List
4430BFFR_FTN _A LK4430BFFR_FTN_A The Following Items are included with the SanitaryFR3 Valve PARTS LIST PART NO. DESCRIPTION ITEM NO. 110175443890 Hex Nut - 3/8-16 1000003964 Bracket - Regulator Mtg (Serv) 40045C Hex Nut - 1-5/16 1000003963 Triple Valve 50986C Regulator Holder 56082C Regulator Nut 56092C... - Page 10 4430BFFR_FTN _A LK4430BFFR_FTN_A INSTALLATION INSTRUCTIONS IMPORTANT ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON IMPORTANT! INSTALLER PLEASE NOTE. THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING.
- Page 11 4430BFFR_FTN _A LK4430BFFR_FTN_A 20, 39 52 OR ARM ONLY 33 SEE NOTE 5 FIG. 9 PAGE 11 1000004247 (Rev. C - 03/20)
- Page 12 4430BFFR_FTN _A LK4430BFFR_FTN_A 29, 29a, 29b 29, 29a, 23, 24 23, 24 FIG. 10 Included with Sanitary Valve 1000004247 (Rev. C - 03/20) PAGE 12...
-
Page 13: Troubleshooting And Maintenance
Brown = BRN Red = RED PRINTED IN U.S.A. FOR PARTS CONTACT YOUR LOCAL DISTRIBUTOR OR CALL TECHNICAL SERVICES AT 1.800.834.4816 Halsey Taylor – halseytaylor.com 1333, BUTTERFIELD ROAD, DOWNERS GROVE, ILLINOIS 60515 Elkay – elkay.com PAGE 13 1000004247 (Rev. C - 03/20)
