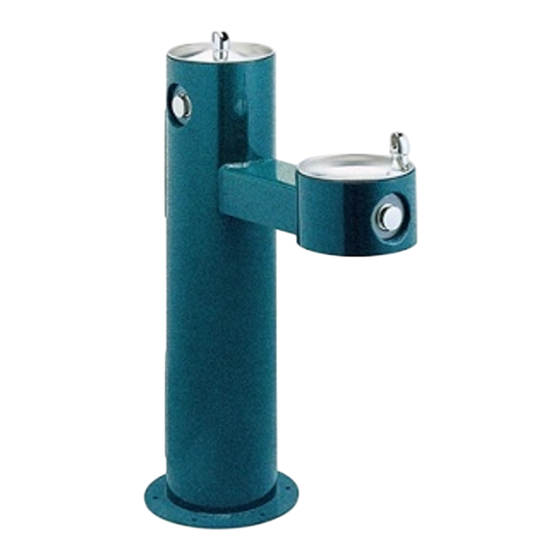

Elkay LK4420SFRK Owner's Manual

Freeze resistant tubular fountain
Hide thumbs

Advertisement

Quick Links

Download this manual
PLEASE READ THE FOLLOWING
• INSTALLATION INSTRUCTIONS FOR THE 4420FR FTN.
WITH 97482C DUAL VALVE CONTROL ASSEMBLY ARE
LOCATED ON PAGES 2 - 5.
• INSTALLATION INSTRUCTIONS FOR THE 4420FR FTN.
WITH SANITARYFR2 VALVE ARE LOCATED ON PAGES
6 - 12.
INSTALLER
4420FR Fountains are among the easiest to install Fountains on the market today. To assure
you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS
BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE
WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After installation, leave
these instructions with the Fountain for future reference.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A
COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING. THIS
GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN ELECTROLYSIS WHICH CAUSES A
METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE WATER. THIS CONDITION IS AVOIDABLE BY USING
THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS PROVIDED BY THE INSTALLER SHOULD BE MADE OF
PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN FROM THE BUILDING PLUMBING SYSTEM.
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
Owners Manual
4420 Freeze Resistant Tubular Fountain
STOP!
INFORMATION.
IMPORTANT
IMPORTANT
4420FR-FTN
PAGE 1
97734C (Rev. L - 6/11)

Advertisement

loading
Need help?

Need help?

Do you have a question about the LK4420SFRK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elkay LK4420SFRK

Summary of Contents for Elkay LK4420SFRK

  • Page 1 4420FR-FTN Owners Manual 4420 Freeze Resistant Tubular Fountain STOP! PLEASE READ THE FOLLOWING INFORMATION. • INSTALLATION INSTRUCTIONS FOR THE 4420FR FTN. WITH 97482C DUAL VALVE CONTROL ASSEMBLY ARE LOCATED ON PAGES 2 - 5. • INSTALLATION INSTRUCTIONS FOR THE 4420FR FTN. WITH SANITARYFR2 VALVE ARE LOCATED ON PAGES 6 - 12.
  • Page 2 4420FR-FTN Owners Manual 4420 Freeze Resistant Tubular Fountain with 97482C Dual Valve Control Assembly IMPORTANT! INSTALLER PLEASE NOTE Do not pull up on lines coming out of the PVC column. This raises the water valve above the frost line with disastrous results.
  • Page 3 4420FR-FTN SITE PREPARATION DETAIL FOR THE 4420FR FTN. WHEN USING 97482C DUAL VALVE CONTROL ASSY. LEGEND A = ACCESS PANEL ( 8" X 10" ) F = 1-1/4" DRAIN TUBE B = REMOVABLE BOTTOM COVER G = AIR CONTROL LINE C = 1"...

  • Page 4: Troubleshooting

    4420FR-FTN INSTALLATION INSTRUCTIONS FOR INSTALLING 97482C DUAL VALVE CONTROL ASSY. 1. Prepare trench for water supply and waste drain lines (if required by local codes). The hole should be deep enough to accommodate the PVC column and 5 cubic feet of porous fill (large broken rock). Additional porous fill may be required due to local ground conditions. (See Site Preparation Detail below). 2.
  • Page 5 4420FR-FTN The following items are included with the 4420FR Fountain PARTS LIST ITEM NO. PART NO. DESCRIPTION 100147140560 Drain Gasket 75589C Gasket 101449542550 Clamp - Hose 101570540560 Drain Gasket 15009C Nipple Assy. - Bubbler 15014C Retaining Nut 40045C Hex Nut 1-5/16" 40551C Tailpipe 1-1/4"...

  • Page 6: General Installation Tips

    4420FR-FTN Owners Manual 4420 Freeze Resistant Tubular Fountain with SanitaryFR2 Valve IMPORTANT! INSTALLER PLEASE NOTE Tubing must be cut to the right length. Do not coil any excess tubing or it will cause valve to malfunction. General Installation Tips 1. Prepare trench for water supply and waste drain lines. The hole should be deep enough to accommodate the PVC column. Additional porous fill and drain pipe may be required due to local ground conditions.
  • Page 7 4420FR-FTN SUGGESTED SITE PREPARATION DETAIL FOR THE 4420FR FTN. WHEN USING THE SANITARYFR2 VALVE FIG. 1 PAGE 7 97734C (Rev. L - 6/11)
  • Page 8 4420FR-FTN SUGGESTED SITE PREPARATION DETAIL FOR THE 4420FR FTN. WHEN USING THE SANITARYFR2 VALVE 1-1/2 DRAIN TUBE SUPPLIED WITH FTN. AIR GAP ASSY. SUPPLIED WITH VALVE 1-1/2 DRAIN TUBE SUPPLIED BY INSTALLER Detail A FIG. 2 LEGEND A = ACCESS PANEL ( 8" X 10" ) B = REMOVABLE BOTTOM COVER 97734C (Rev.
  • Page 9 4420FR-FTN FOUNTAIN CONNECTIONS PLUMBING CONDUIT (BY INSTALLER) TO VALVE FIG. 3 INSTRUCTIONS FOR CONNECTING TUBES FROM VALVE TO FOUNTAIN(S) Step 1 - Insert the 1/8” O.D. tube(s) (Labeled A & B) into the connector(s) (provided with fountain). Insert the 1/8” O.D.
  • Page 10 4420FR-FTN Stream Height Adjustment 5, 13 FIG. 5 FIG. 4 SEE DETAIL B DETAIL B FIG. 6 97734C (Rev. L - 6/11) PAGE 10...

  • Page 11: Parts List

    4420FR-FTN The Following Items are included with the SanitaryFR2 Valve PARTS LIST DESCRIPTION ITEM NO. PART NO. 110175443890 Hex Nut - 3/8-16 28424C Bracket - Regulator Holder 40045C Hex Nut - 1-5/16 45807C Dual Valve 50986C Regulator Holder 56082C Regulator Nut 56092C Poly Tubing - 1/4”...
  • Page 12 4420FR-FTN The Following Items are included with the 4420FR Fountain PARTS LIST ITEM NO. PART NO. DESCRIPTION 100147140560 Drain Gasket 100322740560 Washer 101570540560 Drain Gasket 15009C Nipple Assy. - Bubbler 15014C Retaining Nut 28467C Basin 40045C Hex Nut 1-5/16" 98118C Bubbler Assembly 45403C Push Button Actuator...
