4420DBBFFR_FTN _A
LK4420DBBFFR_FTN_A
Owners Manual
Models 4420BF1UDBFR* and 4420BF1LDBFR*

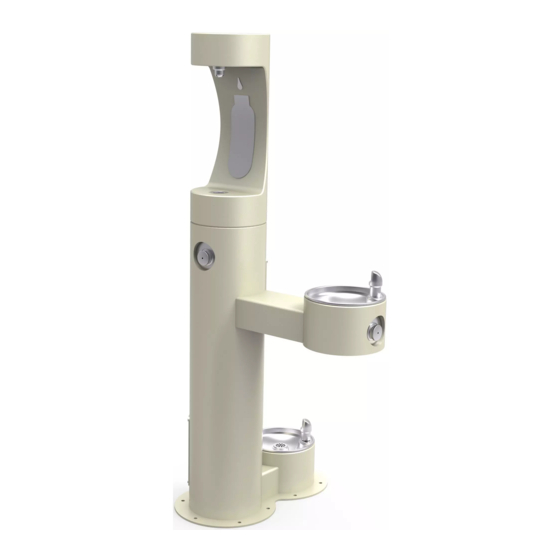

Bi-Level Tubular Bottle Filler Fountain with Pet Fountain
and Sanitary Freeze Resistant Triple Valve Control Assembly
MODEL (LK)4420BF1UDBFR
MODEL (LK)4420BF1LDBFR
INSTALLER
4420BFDBFR Fountains are among the easiest to install Fountains on the market today. To
assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS
BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE
WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After installation, save these
instructions for future reference.
PAGE 1
1000003949
(Rev. A - 06/17)
WWW.RESTROOMDIRECT.COM
704 • 937• 2673
129 Oakpark Dr., Unit A, Mooresville, NC 28115
Advertisement
Related Manuals for Elkay LK4420BF1UDBFRKBLK
Summary of Contents for Elkay LK4420BF1UDBFRKBLK
- Page 1 4420DBBFFR_FTN _A LK4420DBBFFR_FTN_A Owners Manual Models 4420BF1UDBFR* and 4420BF1LDBFR* Bi-Level Tubular Bottle Filler Fountain with Pet Fountain and Sanitary Freeze Resistant Triple Valve Control Assembly MODEL (LK)4420BF1UDBFR MODEL (LK)4420BF1LDBFR INSTALLER 4420BFDBFR Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION.
-
Page 2: Installation Instructions
4420DBBFFR_FTN _A LK4420DBBFFR_FTN_A INSTALLATION INSTRUCTIONS IMPORTANT ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON IMPORTANT! INSTALLER PLEASE NOTE. THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING. - Page 3 4420DBBFFR_FTN _A LK4420DBBFFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE SANITARYFR3 VALVE 4" PVC 1/4 BEND 1-1/2" DRAIN TUBE (SUPPLIED BY INSTALLER) (SUPPLIED BY INSTALLER) 4" PVC PIPE (SUPPLIED BY INSTALLER) CONCRETE SLAB CLEANOUT PLUG FOR ACCESS 4" (SUPPLIED BY INSTALLER) 102mm MIN.
- Page 4 4420DBBFFR_FTN _A LK4420DBBFFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4420DBBFF1UFR FTN. WHEN USING THE SANITARYFR3 VALVE 29" 737mm 1-1/2 DRAIN TUBE SUPPLIED WITH FTN. ( 4 ) 1/2" ( 13mm ) DIA. HOLES AIR GAP ASSY. SPACED AS SHOWN ON A SUPPLIED WITH VALVE 22"...
- Page 5 4420DBBFFR_FTN _A LK4420DBBFFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4420DBBFF1LFR FTN. WHEN USING THE SANITARYFR3 VALVE 29" 737mm ( 4 ) 1/2" ( 13mm ) DIA. HOLES SPACED AS SHOWN ON A 22" 12" ( 305mm ) BOLT CENTER (2 PL) 559mm O 14"...
- Page 6 4420DBBFFR_FTN _A LK4420DBBFFR_FTN_A FOUNTAIN CONNECTIONS PLUMBING CONDUIT (BY INSTALLER) TO VALVE FIG. 4 INSTRUCTIONS FOR CONNECTING TUBES FROM VALVE TO FOUNTAIN(S) Step 1 - Insert the 1/8” O.D. tube(s) (Labeled A, B & J) into the connector(s) (provided with fountain). Insert the 1/8” O.D. tube(s) coming from the fountain(s) push button actuator(s) into the connector(s).
- Page 7 4420DBBFFR_FTN _A LK4420DBBFFR_FTN_A Stream Height Adjustment 5,13 SEE DETAIL B DETAIL B FIG. 5 PAGE 7 1000003949 (Rev. A - 06/17) WWW.RESTROOMDIRECT.COM 704 • 937• 2673 129 Oakpark Dr., Unit A, Mooresville, NC 28115...
-
Page 8: Parts List
4420DBBFFR_FTN _A LK4420DBBFFR_FTN_A The Following Items are included with the SanitaryFR3 Valve PARTS LIST DESCRIPTION ITEM NO. PART NO. 110175443890 Hex Nut - 3/8-16 1000003964 Bracket - Regulator Mtg (Serv) 40045C Hex Nut - 1-5/16 1000003963 Triple Valve 50986C Regulator Holder 56082C Regulator Nut 56092C... - Page 9 4420DBBFFR_FTN _A LK4420DBBFFR_FTN_A 39, 20 ARM ONLY 44 Included with Sanitary Valve 30, 30a, 30b FIG. 7 24, 29 PAGE 9 1000003949 (Rev. A - 06/17) WWW.RESTROOMDIRECT.COM 704 • 937• 2673 129 Oakpark Dr., Unit A, Mooresville, NC 28115...
-
Page 10: Troubleshooting And Maintenance
NS = Not Shown PRINTED IN U.S.A. FOR PARTS CONTACT YOUR LOCAL DISTRIBUTOR OR CALL TECHNICAL SERVICES AT 1.800.834.4816 Halsey Taylor – halseytaylor.com Elkay – elkay.com 2222 CAMDEN COURT, OAK BROOK, ILLINOIS 60523 1000003949 (Rev. A - 06/17) PAGE 10 WWW.RESTROOMDIRECT.COM...
