Elkay 4400DBFR Owner's Manual

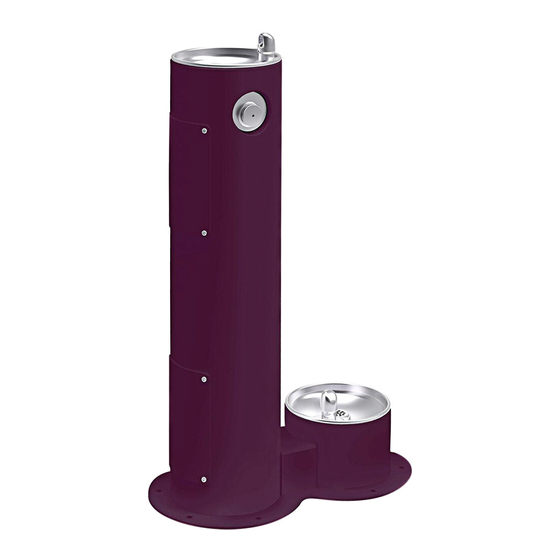

Tubular fountain with pet fountain and sanitary freeze resistant dual valve control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4400DBFR_FTN_A
LK4400DBFR_FTN_A
Owners Manual
4400DBFR Tubular Fountain with Pet Fountain and
Sanitary Freeze Resistant Dual Valve Control Assembly

INSTALLER

4400DBFR Fountains are among the easiest to install Fountains on the market today. To assure
you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS
BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE
WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After installation, save these
instructions for future reference.
PAGE 1
1000003955 (Rev. A - 06/17)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4400DBFR and is the answer not in the manual?

Questions and answers

Related Manuals for Elkay 4400DBFR

Summary of Contents for Elkay 4400DBFR

  • Page 1 Sanitary Freeze Resistant Dual Valve Control Assembly INSTALLER 4400DBFR Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES.
  • Page 2 4400DBFR_FTN_A LK4400DBFR_FTN_A INSTALLATION INSTRUCTIONS IMPORTANT ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON IMPORTANT! INSTALLER PLEASE NOTE. THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING.
  • Page 3 4400DBFR_FTN_A LK4400DBFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4420DBFR FTN. WHEN USING THE SANITARYFR2 VALVE 4" PVC 1/4 BEND 1-1/2" DRAIN TUBE (SUPPLIED BY INSTALLER) (SUPPLIED BY INSTALLER) 4" PVC PIPE (SUPPLIED BY INSTALLER) CONCRETE SLAB CLEANOUT PLUG FOR ACCESS 4"...
  • Page 4 4400DBFR_FTN_A LK4400DBFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4420DBFR FTN. WHEN USING THE SANITARYFR2 VALVE 1-1/2 DRAIN TUBE SUPPLIED WITH FTN. ( 6 ) 1/2" ( 13mm ) DIA. HOLES EQUALLY SPACED ON A 12" ( 305mm ) BOLT CENTER AIR GAP ASSY.
  • Page 5 4400DBFR_FTN_A LK4400DBFR_FTN_A FOUNTAIN CONNECTIONS PLUMBING CONDUIT (BY INSTALLER) TO VALVE FIG. 3 INSTRUCTIONS FOR CONNECTING TUBES FROM VALVE TO FOUNTAIN(S) Step 1 - Insert the 1/8” O.D. tube(s) (Labeled A & B) into the connector(s) (provided with fountain). Insert the 1/8” O.D.
  • Page 6 4400DBFR_FTN_A LK4400DBFR_FTN_A Stream Height Adjustment 5, 13 SEE DETAIL B DETAIL B FIG. 4 1000003955 (Rev. A - 06/17) PAGE 6...
  • Page 7 4400DBFR_FTN_A LK4400DBFR_FTN_A The Following Items are included with the SanitaryFR2 Valve PARTS LIST PART NO. ITEM NO. DESCRIPTION 110175443890 Hex Nut - 3/8-16 1000003964 Bracket - Regulator Holder 40045C Hex Nut - 1-5/16 45807C Dual Valve 50986C Regulator Holder 56082C Regulator Nut 56092C Poly Tubing - 1/4”...
  • Page 8 Brown = BRN Red = RED PRINTED IN U.S.A. FOR PARTS CONTACT YOUR LOCAL DISTRIBUTOR OR CALL TECHNICAL SERVICES AT 1.800.834.4816 Halsey Taylor – halseytaylor.com Elkay – elkay.com 2222 CAMDEN COURT, OAK BROOK, ILLINOIS 60523 1000003955 (Rev. A - 06/17) PAGE 8...
