Chapter 3. How to use
3.1 Computer Configuration
1.
Connect the cable according to Chapter 2, and then turn on the power.
2.

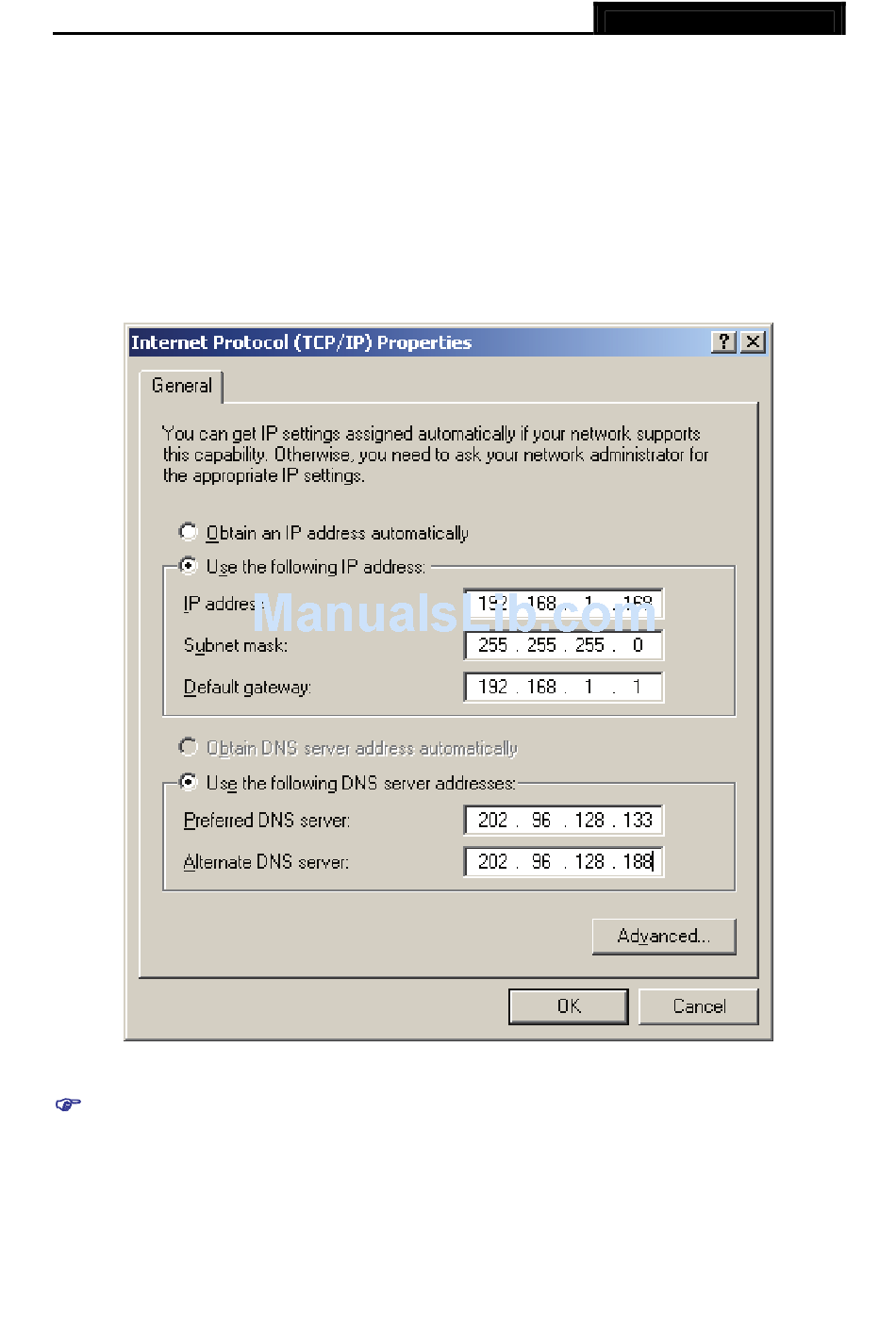

Change the IP address of your PC（Figure 3-1）: Open TCP/IP Properties of the LAN card in
your PC, enter the IP address as 192.168.1.* (* is any value between 2 to 254, Subnet mask
is 255.255.255.0, Gateway is 192.168.1.1, DNS address is the value provided by ISP).
Note:
1)
The users of Windows 98 can open TCP/IP Properties according to the following:
Right-press (Mouse) Network Neighbor -> Choose Properties -> Double-press TCP/IP. PCI
Fast Ethernet Adapter.
2)
The users of Windows 2000/NT/XP can do the following: Right-press Network Neighbor ->
TD-8610/8610B
Figure 3-1
6
External ADSL MODEM
