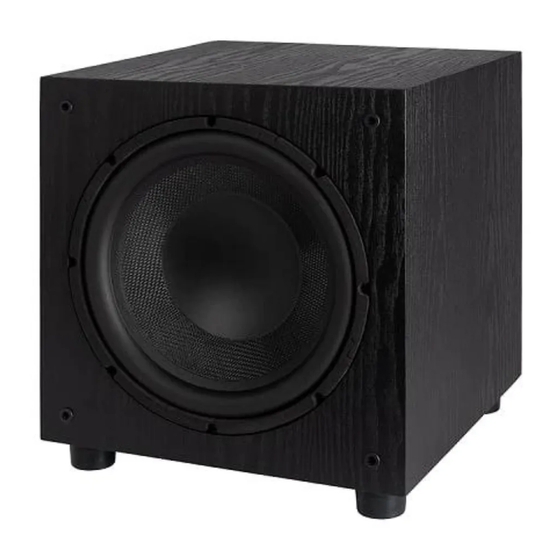

- Page 1 ELAC SUB1020 POWERED SUBWOOFER OPERATING INSTRUCTIONS SUB1020 Powered Subwoofer...
-
Page 2: Safety Instructions
Connect the speaker(s) according to the instructions in the manual. • Many ELAC speakers are equipped with spikes and/or anti-slip feet. They are explicitly provided for levelling the speaker. For levelling on an uneven floor, unscrew the spikes or anti-slip feet by 2-3 turns of thread. - Page 3 Connection to any other voltage may cause irreversible damage to the subwoofer and will void the warranty. Use of plug adapters is not recommended because they may allow connection to voltages other than those printed on the back of this subwoofer. ELAC SUB1020 Subwoofer | www.elac.com | Page 2...
-
Page 4: Before Use
Since the time we started (1926), ELAC has always striven to achieve the very best. Your new ELAC speakers are built to the highest standards using high-quality components that are carefully constructed to deliver the best-in-class sound quality. They are developed by a passionate group of individuals whose sole purpose is to bring a new dimension of sound quality into your home. -
Page 5: Controls And Indicators
— The LED is green - shows that the subwoofer is in “On” (Always On) power mode. 8. Hi-Level inputs and Outputs - Used for connecting the subwoofer to stereo systems without a subwoofer output. ELAC SUB1020 Subwoofer | www.elac.com | Page 4... -
Page 6: Connecting Your Subwoofer
RCA inputs on the subwoofer. If you are using a pre-amp with only one set of pre-outs, use a splitter for each output on the pre-amp and connect two sets of stereo RCA cables to both the amplifier and to the subwoof- er (Fig 2). Fig.1 SUB Out Fig.2 Tape Out ELAC SUB1020 Subwoofer | www.elac.com | Page 5... -
Page 7: Subwoofer Placement
If possible the best option is to move the subwoofer around the room and find the location that sounds the best from your normal listening position. There are many test discs you can purchase that provide the correct test signals for helping find this optimum location. ELAC SUB1020 Subwoofer | www.elac.com | Page 6... -
Page 8: Specifications
37Hz - 200Hz Crossover Frequency 40Hz - 150Hz Driver 10” High Excursion Cabinet CARB2 Rated MDF Port Dual Flared Cabinet Finish Black Ash Vinyl Dimension (WxHxD) 12-3/16” x 14-3/16” x 12-3/16” Weight (lb/Kg) 21.38/9.7 ELAC SUB1020 Subwoofer | www.elac.com | Page 7... - Page 9 Powered Subwoofers ELAC Americas Inc. warrants to the original purchaser that this product be free from defects and or workmanship for a period of 3 (Three) years on the cabinet and speaker driver and 1 (One) year on the amplifier from the original date of purchase.
- Page 10 ELAC AMERICAS LLC. ELAC EL ECTROACUSTIC GMBH ELAC AMERICAS INC. ELAC ELECTROACUSTIC GMBH 11145 KNOTT AVE. SUITES E & F 11145 KNOTT AVE. SUITES E & F FRAUNHOFERSTRAßE 16 FRAUNHOFERSTRAßE 16 CYPRESS, CA 90630 D-24118 KIEL, GERMANY CYPRESS, CA. 906 30...
