hp-z32 VESA adapter
Assembly
instructions
The VESA adapter is compatible with the following monitors from
hp
(hp.com):
Z32k G3, Z34c G3, Z40c G3

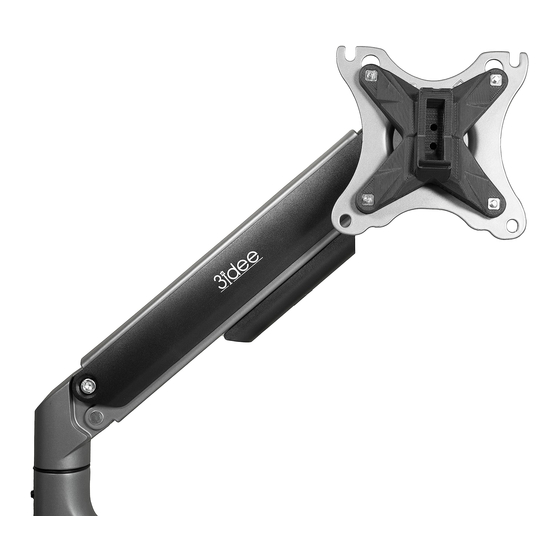

The VESA adapter allows you to conveniently mount your HP brand monitor to a
monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and
nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws
and dowels (not included).
www.3idee.eu
Advertisement
Related Manuals for 3idee hp-z32
Summary of Contents for 3idee hp-z32
- Page 1 VESA adapter Assembly instructions The VESA adapter is compatible with the following monitors from (hp.com): Z32k G3, Z34c G3, Z40c G3 The VESA adapter allows you to conveniently mount your HP brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.
-
Page 2: Important Safeguards
Assembly instructions Important Safeguards Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability. -
Page 3: Waste Disposal
For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area. 4. Manufacturer Information 3idee Technologies S.à r.l. 5 Um Lenster Bierg L-6125 Junglinster Luxembourg 5. -
Page 4: Scope Of Delivery Accessories
Assembly instructions Scope of Delivery Accessories 4x M4x14 screw with cross recess 2x M4x14 screw with cross recess (SP8) (SP8) -
Page 5: Horizontal Mounting
Assembly instructions Horizontal / Vertical Alignment Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly. We are continuously working on developing monitors and adapters that are also suitable for vertical orientation. -
Page 6: Assembly Instruction
(Figure 2) Figure 2 Step 4 Now plug the 3idee VESA adapter onto the monitor as shown. Important! Note the correct orientation (top and bottom) of the VESA adapter. The straight line on the VESA adapter, which is located below the screw holes, should point towards the bottom. - Page 7 Assembly instructions Step 5 This is how the mounted VESA adapter should look on your monitor. (Figure 4) Figure 4 Step 6 For this step we recommend a 2nd person. Now lift the monitor and hold it to your monitor mount. Fasten the VESA adapter with the 4 included M4x14 screws (screw bag: SP2).
