  • Page 2: Table Of Contents

    Contents 1. Preface ........................1 1.1 Audience ......................1 1.2 Revision History ....................1 2. Overview ........................2 2.1 Product Overview ....................2 2.2 Product Main Features ..................2 2.3 Product Specifications ..................2 3. Getting Started ......................4 3.1 Hardware Installation ..................4 3.2 Accessing the Web GUI ..................4 4.

  • Page 3: Preface

    G-Series PRI VoIP Gateway User Guide 1. Preface 1.1 Audience This manual is intended to provide clear operating instructions for those responsible for configuring and managing the PRI VoIP Gateways. By carefully reading and consulting this manual, to help the audience solve the setting and deployment issues of the PRI VoIP Gateway.

  • Page 4: Overview

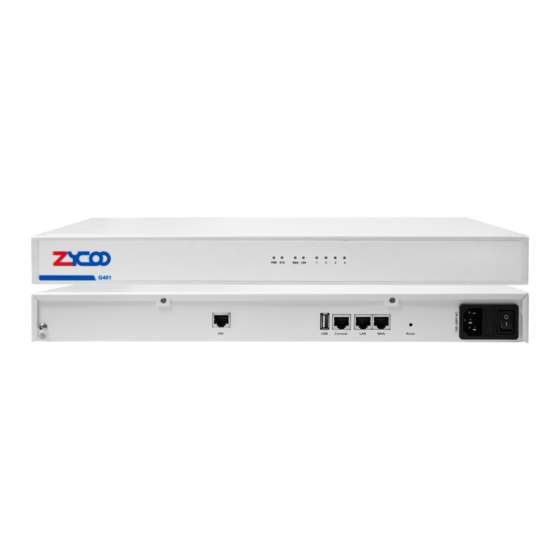

    2. Overview 2.1 Product Overview ZYCOO G401 is a powerful enterprise-grade PRI Gateway designed to ensure reliable and high-quality voice and data transmission through E1/T1 port. G401 gateway utilizes the standard SIP protocol and is equipped with 1 E1/T1 port. It complies with the Primary Rate Interface (PRI) standard, supporting 30 B-channels for voice and data and 2 D-channels for signaling and control.
  • Page 5 G-Series PRI VoIP Gateway User Guide Digital Trunk 1 x E1/T1 Port Port Network Port 1 x 10/100Mbps, 1 x 10/100/1000Mbps Ethernet Port Power Input 100 - 240V AC, 50/60Hz Dimension 440mm*171mm*44.5mm Communication SIP (RFC3261) Protocol Audio Codec G.722/ G.711 - Ulaw/ G.711- Alaw/ G.726/ G.729/ GSM/ SPEEX Management...

  • Page 6: Getting Started

    G-Series PRI VoIP Gateway User Guide 3. Getting Started 3.1 Hardware Installation The hardware installation instructions for each device are described in detail in the paper "Quick Installation Guide" in the device package. Please refer to the instructions in the "Quick Installation Guide"...
  • Page 7 G-Series PRI VoIP Gateway User Guide Note: Only by deploying the CooVox T-Series IPPBX and G-Series gateways in the same local network, and configured with IP addresses within the same network segment, so they can work together. Access through browser You may also access the PRI gateway Web GUI by specifying its IP address in the browser address bar.

  • Page 8: Dashboard

    G-Series PRI VoIP Gateway User Guide 4. Dashboard 4.1 Monitor After logging in, you will see the system information interface of the device, and you can view the basic information of the device. Or click Dashboard -> Monitor in the navigation bar to enter, as shown in the figure below. Monitor CPU: ...

  • Page 9: Pri Status

    G-Series PRI VoIP Gateway User Guide System Info Model:  The model of current device. Device Name:  The given name of current device.  WAN IP: WAN port IP address.  WAN MAC: WAN port MAC address.  LAN IP: LAN port IP address.
  • Page 10 G-Series PRI VoIP Gateway User Guide PRI Status Channel Number:  Display the data channel number of the PRI module. Channel In Alarm:  Display the alarm status of channel. Channel Status:  Display the channel running status of the PRI module. Normal operation status is shown in green, failure or call status is shown in red.

  • Page 11: Gateway

    G-Series PRI VoIP Gateway User Guide 5. Gateway 5.1 VoIP Trunk Click Gateway-->VoIP Trunk to enter the SIP trunk configuration page, as shown in the figure below. Click the Add button to create a new SIP trunk, typically, when creating a SIP trunk, users only need to configure the authentication information in the "Basic Settings".
  • Page 12 G-Series PRI VoIP Gateway User Guide SIP Trunk Basic Settings Enable:  The SIP trunk will be active and usable only if it’s enabled. Name：  The name of this SIP trunk.  Authentication: If the server does not need to authenticate the user name and password, you can disable the authentication option.
  • Page 13 G-Series PRI VoIP Gateway User Guide  Contact Header Field: Indicate the contact information in the outbound call request.  Registration Timeout: Expiration time of registration in seconds.  Retry Interval: Once registration expired, retry interval is the number of seconds system will wait before attempting to send another register request to the server.

  • Page 14: Pri Settings

    G-Series PRI VoIP Gateway User Guide  Client URI: Client SIP URI used when attempting outbound registration (e.g. SIP:1234567890@sip.example.com:5060). Transport Protocol:  To set the VoIP trunk to use UDP, TCP or TLS as the transport protocol, in most cases the providers use UDP as default transport protocol. ...

  • Page 15: Voip Advanced

    G-Series PRI VoIP Gateway User Guide PRI Settings Route Trunk:  Incoming or outgoing calls will be trunked to the corresponding PBX through this setting.  Module Type: Select the module type as E1 or T1.  Clocking Source: Select local clock source or remote clock source. Overlap Dial: ...
  • Page 16 G-Series PRI VoIP Gateway User Guide SIP Settings  UDP Port: SIP over UDP service port. Port number can be changed here if required.  TCP Port: Enable/disable global SIP TCP support. If you have enabled TCP support of an extension, and the IP phone supports TCP protocol, then you can register a SIP extension over TCP protocol.

  • Page 17: Advanced Settings

    G-Series PRI VoIP Gateway User Guide classification, ensuring transmission quality even in congested network conditions. In this module, you can view the priority of voice packets, signaling packets, and video packets for different protocols. 5.4 Advanced Settings Click Gateway-->Advanced Settings to enter the PRI gateway advanced settings configuration interface, as shown in the figure below.

  • Page 18: Network Settings

    G-Series PRI VoIP Gateway User Guide  Echo Cancellation： Select the echo cancellation algorithm including oslec and mg2. 6. Network Settings 6.1 Network Profiles The gateway device has 2 network interfaces, WAN port can be configured as DHCP or static IP mode, while LAN port can only be used in static IP mode. By default, WAN is on DHCP mode, so it requires a DHCP server in your network.
  • Page 19 G-Series PRI VoIP Gateway User Guide WAN Port Configuration  Network Mode: Set up the system to use a static IP address or obtain one dynamically from the DHCP server. It is generally recommended to use a static IP address. ...
  • Page 20 G-Series PRI VoIP Gateway User Guide  Netmask: Enter the subnet mask for the static IP address.

  • Page 21: Reports

    G-Series PRI VoIP Gateway User Guide 7. Reports 7.1 Call Logs On the Reports --> Call Logs page, you will be able to check view all extension call records associated with this gateway, as shown in the figure below. You may search call logs by specifying a time period and caller/callee number. If the “Caller” and/or “Final Called”...

  • Page 22: System Logs

    G-Series PRI VoIP Gateway User Guide Incoming. Call Status:  Indicates whether the calls were answered or not. Download All:  By clicking on the download button you can download all the call logs from the search result. 7.2 System Logs Please go to Reports -->...

  • Page 23: System

    G-Series PRI VoIP Gateway User Guide 8. System 8.1 Reboot & Reset Click System --> Reboot & Reset in the navigation bar to enter the restart and reset control interface. When the system cannot work normally, you can restart the system or restore the default factory settings on this interface, as shown in the figure below.

  • Page 24: Date And Time

    G-Series PRI VoIP Gateway User Guide 8.2 Date and Time Click System --> Date and Time in the navigation bar to enter the region and system time setting interface, as shown in the figure below. Location Country / Region:  Select the country/region you are located, some advanced system settings will be configured according to the country/region you have selected.

  • Page 25: Diagnostic

    G-Series PRI VoIP Gateway User Guide  Sync: Choose to obtain the time automatically through the NTP server or set the time manually. Time Zone:  Set the time zone used by the device. NTP Server:  The network time server used to obtain the time. Note: After modifying the time, the device will restart automatically, and the system authentication will fail, please return to the login page to log in again.
  • Page 26 G-Series PRI VoIP Gateway User Guide Specify the domain or IP of the host you want to contact, then click on the Start button, and then the command begins to process. You will receive results output from the system indicating the reachability of the destination. Trace Route The traceroute command is used to discover the routes that the packets actually took while traveling to their destination.

  • Page 27: Firmware Upgrade

    G-Series PRI VoIP Gateway User Guide Received by Asterisk) and Tx (audio Transmitted by Asterisk). CMD CLI The CMD CLI provides you the access to execute the CLI commands. To avoid incorrect operation that may affect the system, here provides the pjsip and core command to check the status.
  • Page 28 G-Series PRI VoIP Gateway User Guide...
