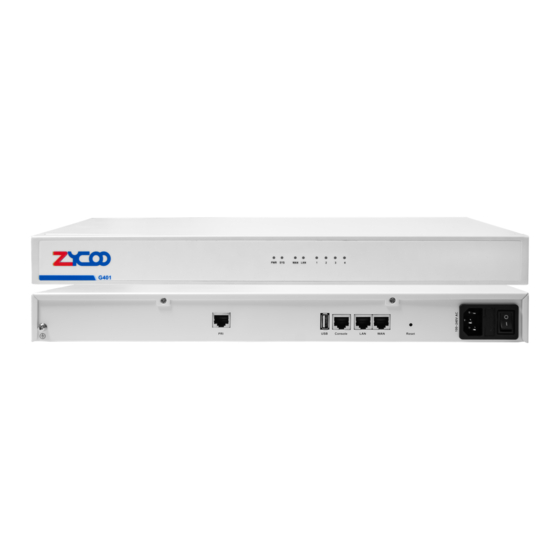

Summary of Contents for Zycoo G Series

  • Page 2: Table Of Contents

    Contents 1. Preface ........................1 1.1 Audience ......................1 1.2 Revision History ....................1 2. Overview ........................2 2.1 Product Overview ....................2 2.2 Product Main Features ..................2 2.3 Product Specifications ..................3 3. Getting Started ......................4 3.1 Hardware Installation ..................4 3.2 Accessing the Web GUI ..................4 4.

  • Page 3: Preface

    G-Series FXO VoIP Gateway User Guide 1. Preface 1.1 Audience This manual is intended to provide clear operating instructions for those responsible for configuring and managing the G108/G116 FXO VoIP Gateways. By carefully reading and consulting this manual, to help the audience solve the setting and deployment issues of the FXO VoIP Gateway.

  • Page 4: Overview

    Easy and convenient management through a web interface, with the added benefit of SSH configuration modification support.  The integration of the reliable and stable PJSIP library guarantees the gateway's reliability and stability.  Seamless compatibility with Zycoo CooVox T-Series PBX systems, with the ability to configure and manage the gateway remotely.

  • Page 5: Product Specifications

    G-Series FXO VoIP Gateway User Guide 2.3 Product Specifications G-Series FXO Gateway Specifications Analog Port 8/16 x RJ11 FXO Ports Network Port 1 x 10/100Mbps, 1 x 10/100/1000Mbps Ethernet Port Power Input 100 - 240V AC, 50/60Hz Dimension 440mm*171mm*44.5mm Communication SIP (RFC3261) Protocol Audio Codec...

  • Page 6: Getting Started

    G-Series FXO VoIP Gateway User Guide 3. Getting Started 3.1 Hardware Installation The hardware installation instructions for each device are described in detail in the paper "Quick Installation Guide" in the device package. Please refer to the instructions in the "Quick Installation Guide"...
  • Page 7 G-Series FXO VoIP Gateway User Guide Note: Only by deploying the CooVox T-Series IPPBX and G-Series gateways in the same local network, and configured with IP addresses within the same network segment, so they can work together. Access through browser You may also access the FXO gateway Web GUI by specifying its IP address in the browser address bar.

  • Page 8: Dashboard

    G-Series FXO VoIP Gateway User Guide 4. Dashboard 4.1 Monitor After logging in, you will see the system information interface of the device, and you can view the basic information of the device. Or click Dashboard -> Monitor in the navigation bar to enter, as shown in the figure below. Monitor CPU: ...

  • Page 9: Fxo Status

    G-Series FXO VoIP Gateway User Guide System Info Model:  The model of current device. Device Name:  The given name of current device.  WAN IP: WAN port IP address.  WAN MAC: WAN port MAC address.  LAN IP: LAN port IP address.
  • Page 10 G-Series FXO VoIP Gateway User Guide FXO Status Port:  Display the port number of the FXO module.  Status: Display the port status of the FXO module.  Line Status: Display whether the physical connection is normal. The status will be displayed as connected or not connected.

  • Page 11: Gateway

    G-Series FXO VoIP Gateway User Guide 5. Gateway 5.1 VoIP Trunk Click Gateway-->VoIP Trunk to enter the SIP trunk configuration page, as shown in the figure below. Click the Add button to create a new SIP trunk, typically, when creating a SIP trunk, users only need to configure the authentication information in the "Basic Settings".
  • Page 12 G-Series FXO VoIP Gateway User Guide SIP Trunk Basic Settings Enable:  The SIP trunk will be active and usable only if it’s enabled. Name：  The name of this SIP trunk.  Authentication: If the server does not need to authenticate the user name and password, you can disable the authentication option.
  • Page 13 G-Series FXO VoIP Gateway User Guide  Contact Header Field: Indicate the contact information in the outbound call request.  Registration Timeout: Expiration time of registration in seconds.  Retry Interval: Once registration expired, retry interval is the number of seconds system will wait before attempting to send another register request to the server.

  • Page 14: Fxo Settings

    G-Series FXO VoIP Gateway User Guide  Client URI: Client SIP URI used when attempting outbound registration (e.g. SIP:1234567890@sip.example.com:5060). Transport Protocol:  To set the VoIP trunk to use UDP, TCP or TLS as the transport protocol, in most cases the providers use UDP as default transport protocol. ...
  • Page 15 G-Series FXO VoIP Gateway User Guide button on the right side of the port list to change the FXO port parameters. Click the "Delete" button to delete the specified port settings. FXO Port Settings Port Number:  The port number of FXO. Line Status: ...
  • Page 16 G-Series FXO VoIP Gateway User Guide The inbound and outbound rules for the FXO gateway are as follows, and once configured, it will be ready for use. The specific settings for the FXO ports are shown in the figure below. Outbound Calls: Outbound calls enter through the SIP trunk, and the system searches for available lines through CID matching.
  • Page 17 G-Series FXO VoIP Gateway User Guide FXO Port Advanced Settings  Output Volume: Set the volume of the outgoing calls from FXO channel.  Input Volume： Set the volume of the incoming calls from FXO channel. Answer Polarity Detection: When enabled, FXO (FXO signaled) ports watch for a ...

  • Page 18: Voip Advanced

    G-Series FXO VoIP Gateway User Guide  Caller ID Signaling: The signaling type applied on the PSTN lines to pass caller ID. Bell-US—Also known as Bellcore FSK. Used in the Canada, China, Hong Kong and US. DTMF—Dual Tone Multi-Frequency. Used in Denmark, Finland and Sweden. V23— Mostly used in UK.

  • Page 19: Advanced Settings

    G-Series FXO VoIP Gateway User Guide  RTP Port Range: Refers to the port range used by the RTP voice stream. In general, do not modify this parameter. Otherwise, there will be an issue of no sound on the phone. ...
  • Page 20 G-Series FXO VoIP Gateway User Guide Advanced Settings  Tone Zone: Select the signal tone standard of the country or region where the device is located. Caller ID Detection： Enables detection of the caller ID of the inbound calls from ...
  • Page 21 G-Series FXO VoIP Gateway User Guide  FXO Ring Timeout (ms): This value can be tweaked to shorten how long it takes before the analog port(FXO) considers a non-ringing line to have hung-up. 8000ms by default. Tone Duration:  Used to adjust caller ID detection, non-professional user please do not modify.

  • Page 22: Network Settings

    G-Series FXO VoIP Gateway User Guide 6. Network Settings 6.1 Network Profiles The gateway device has 2 network interfaces, WAN port can be configured as DHCP or static IP mode, while LAN port can only be used in static IP mode. By default, WAN is on DHCP mode, so it requires a DHCP server in your network.
  • Page 23 G-Series FXO VoIP Gateway User Guide WAN Port Configuration  Network Mode: Set up the system to use a static IP address or obtain one dynamically from the DHCP server. It is generally recommended to use a static IP address. ...

  • Page 24: Reports

    G-Series FXO VoIP Gateway User Guide 7. Reports 7.1 Call Logs On the Reports --> Call Logs page, you will be able to check view all extension call records associated with this gateway, as shown in the figure below. You may search call logs by specifying a time period and caller/callee number. If the “Caller” and/or “Final Called”...

  • Page 25: System Logs

    G-Series FXO VoIP Gateway User Guide Incoming. Call Status:  Indicates whether the calls were answered or not. Download All:  By clicking on the download button you can download all the call logs from the search result. 7.2 System Logs Please go to Reports -->...

  • Page 26: System

    G-Series FXO VoIP Gateway User Guide 8. System 8.1 Reboot & Reset Click System --> Reboot & Reset in the navigation bar to enter the restart and reset control interface. When the system cannot work normally, you can restart the system or restore the default factory settings on this interface, as shown in the figure below.

  • Page 27: Date And Time

    G-Series FXO VoIP Gateway User Guide 8.2 Date and Time Click System --> Date and Time in the navigation bar to enter the region and system time setting interface, as shown in the figure below. Location Country / Region:  Select the country/region you are located, some advanced system settings will be configured according to the country/region you have selected.

  • Page 28: Diagnostic

    G-Series FXO VoIP Gateway User Guide  Sync: Choose to obtain the time automatically through the NTP server or set the time manually. Time Zone:  Set the time zone used by the device. NTP Server:  The network time server used to obtain the time. Note: After modifying the time, the device will restart automatically, and the system authentication will fail, please return to the login page to log in again.
  • Page 29 G-Series FXO VoIP Gateway User Guide Specify the domain or IP of the host you want to contact, then click on the Start button, and then the command begins to process. You will receive results output from the system indicating the reachability of the destination. Trace Route The traceroute command is used to discover the routes that the packets actually took while traveling to their destination.

  • Page 30: Firmware Upgrade

    G-Series FXO VoIP Gateway User Guide Received by Asterisk) and Tx (audio Transmitted by Asterisk). CMD CLI The CMD CLI provides you the access to execute the CLI commands. To avoid incorrect operation that may affect the system, here provides the pjsip and core command to check the status.
  • Page 31 G-Series FXO VoIP Gateway User Guide...
