Zycoo G Series Quick Installation Manual
Fxo voip gateway
Hide thumbs
Also See for G Series:
- User manual (31 pages) ,
- Quick installation manual (16 pages) ,
- User manual (28 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zycoo G Series
Summary of Contents for Zycoo G Series
- Page 1 F O R S M E B U S I N E S S Quick Installation Guide G-Series FXO VoIP Gateway...

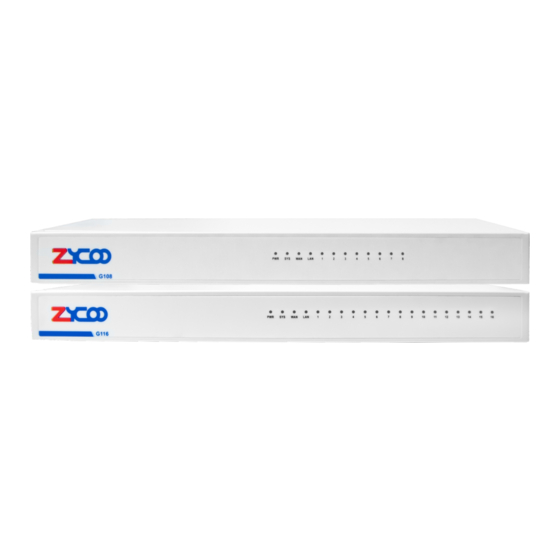

- Page 2 Please read the instructions carefully before using. G108 G116 ZYCOO G108 and G116 are high-performance FXO analog gateways designed specifically for small and medium-sized enterprises, aiming to deliver high-quality, stable, and reliable voice solutions. The G-Series FXO VoIP Gateways utilize the standard SIP protocol and come equipped with 8/16 FXO ports, enabling seamless integration of telephone lines with VoIP networks.
-
Page 3: Table Of Contents
11 ....Web GUI Access 11 ..Auto Discover with Zycoo IPPBX 11 .... -
Page 4: Package Contents
Package Contents Thank you for purchasing ZYCOO G-Series VoIP Gateway. These are the items included with your VoIP Gateway purchase: Mounting Brackets VoIP Gateway Power Adapter(1PCS) (1PCS) and Fittings(2PCS) Warranty Card Network Cable(1PCS) Quick Installation Guide (1PCS) (1PCS) -
Page 5: Hardware Installation
Hardware Installation The followings are the instructions for setting up ZYCOO G108/G116 FXO Gateway. Please refer to the illustration and follow the simple steps below to quickly install your VoIP Gateway. Safety Precautions To avoid any device damage and Body injury caused by improper use, please observe the following rules. - Page 6 Site Requirements 40℃ 0℃ To ensure normal operation and long service life of the device, please install it in an environment that meets the requirements described in the following subsection. Please keep a proper temperature and humidity in the equipment room. Too high/low humidity may lead to bad insulation, electricity leakage, mechanical property changes and corrosions.
- Page 7 The dust accumulated on VoIP Gateway can be absorbed by static electricity and result in poor contact of metal contact points. Some measures have been taken for the device to prevent static electricity, but too strong static electricity can cause deadly damage to the electronic elements on the internal circuit board.
- Page 8 Rack Installation To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below: Check the grounding and stability of the rack. Secure the supplied rack-mounting brackets to each side of the device with supplied screws as illustrated in the following figure. Rack-mounting Bracket Screw G 1 0 8...
- Page 9 G 10 8 PW R WA N After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack, as illustrated in the following figure. Notes: 1.Please ensure the correct installation for the grounding of the rack, which is the most important guarantee of avoiding ESD, electricity leakage, lightening, and electromagnetic interference;...
- Page 10 Connect to Ground Connecting the device to ground is to quickly release the lightning over-voltage and over-current of the device, which is also a necessary measure to prevent human injury from electric shock. In different environments, the device may be grounded differently. Two measures are given in the following, of which the Grounding bar is better for the protection of lightening.
- Page 11 If the device is installed in the normal environment, the device can be grounded via the PE (Protecting Earth) cable of the AC power supply as shown in the following figure. [1] VoIP Gateway(Rear panel) [2] AC Power Cord(with PE cable) Console Reset Notes:...
- Page 12 Physical Connection * Take G108 as an example Power Adapter RJ11 Switch PSTN Network...
- Page 13 LED De nitions Indication Function Explaination Status Power On Power Status Power Off Off System Works Blink System Failure System Status Off System doesn’t boot Data Transfer Blink WAN Data Status Disconnected Off Connected but no data transfer Data Transfer Blink Disconnected Off...
-
Page 14: Web Gui Access
Web GUI Access Auto-discover with Zycoo IP PBX If you are using CooVox T series IPPBX, and the IPPBX and the gateway are both deployed in the same network segment under the same local network, please open Addons -> Exbox -> G2 Gateway in the web GUI, then use the scan feature to search and discover the gateway address. - Page 15 Thank you for the purchase of ZYCOO products. The above steps are basic configurations for G108/G116 FXO Gateway. For further configurations, please refer to the user manual. If you have other questions, please contact the ZYCOO local dealers or distributors from where you purchased this product.
- Page 16 Leading IP Phone System Provider ZYCOO Co., Ltd. Address:No. 1602, 16th Floor, Building No. 599, Century City South Road, High-tech Zone, Chengdu, Sichuan Province, China Telephone:+86 (28)85337096 ext 813 / 815 Website:www.zycoo.com...
