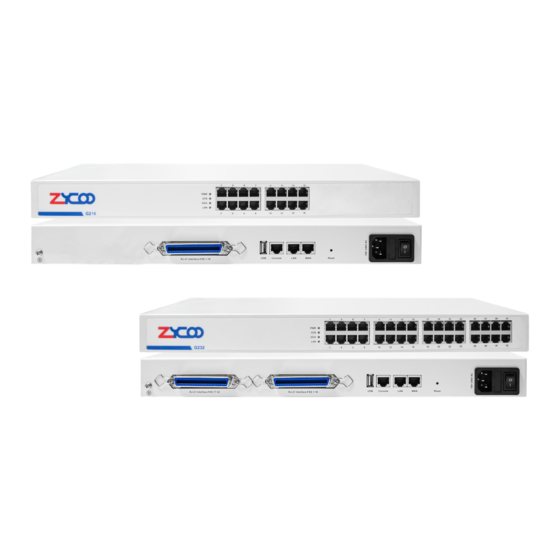

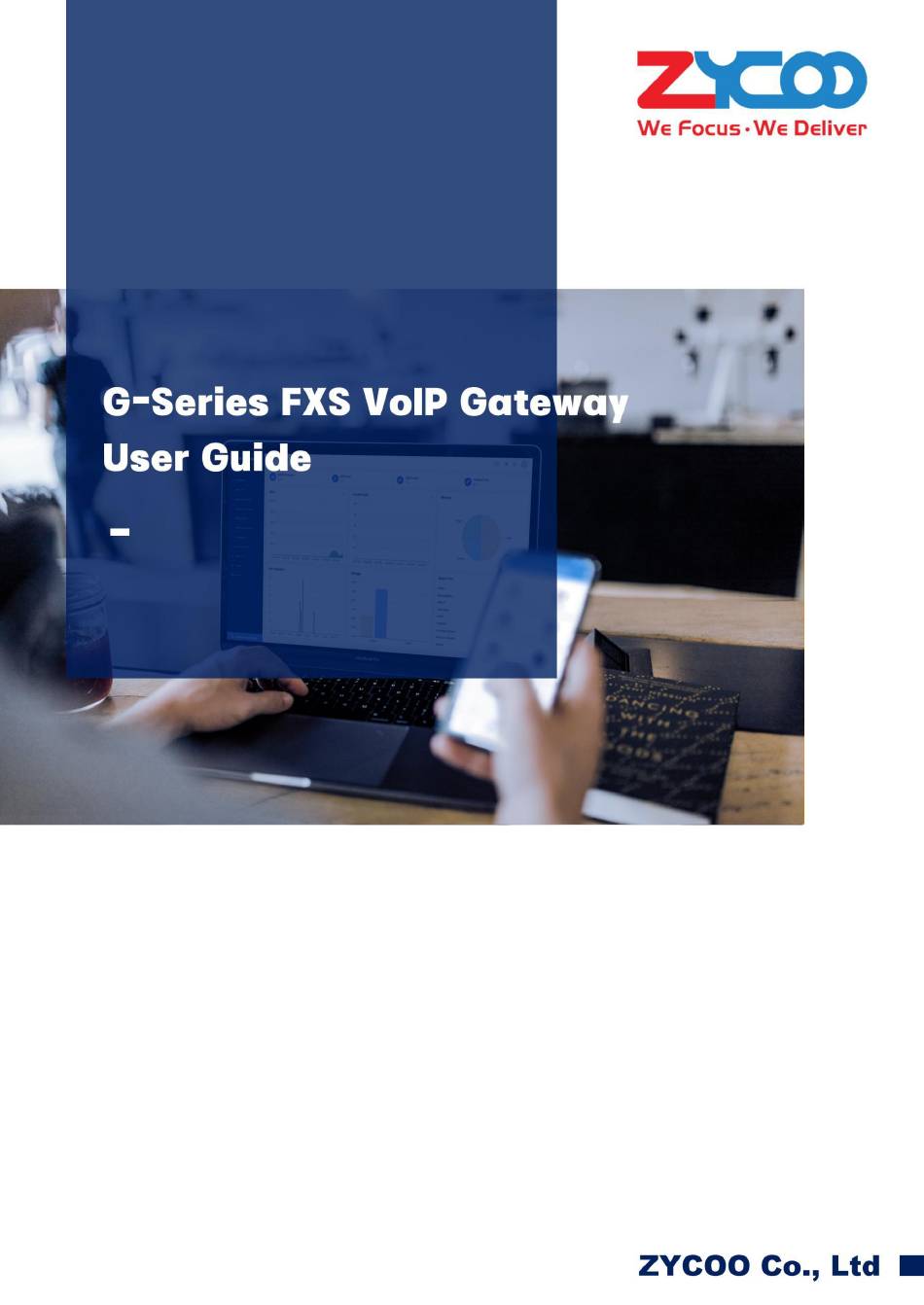

Zycoo G Series User Manual

Fxs voip gateway
Hide thumbs Also See for G Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zycoo G Series

Summary of Contents for Zycoo G Series

  • Page 2: Table Of Contents

    2.3 Product Specifications ..................3 3. Getting Started ......................4 3.1 Hardware Installation ..................4 3.2 Accessing the Web GUI ..................4 3.3 ZYCOO IPPBX Auto Provision ................6 4. Dashboard ......................8 4.1 Monitor ......................8 4.2 FXS Status ......................9 5. Gateway ....................... 11 5.1 VoIP Server .....................11...

  • Page 3: Preface

    G-Series FXS VoIP Gateway User Guide 1. Preface 1.1 Audience This manual is intended to provide clear operating instructions for those responsible for configuring and managing the G216/G232 FXS VoIP Gateways. By carefully reading and consulting this manual, to help the audience solve the setting and deployment issues of the FXS VoIP Gateway.

  • Page 4: Overview

    Easy and convenient management through a web interface, with the added benefit of SSH configuration modification support.  The integration of the reliable and stable PJSIP library guarantees the gateway's reliability and stability.  Seamless compatibility with Zycoo CooVox T-Series PBX systems, with the ability to configure and manage the gateway remotely.

  • Page 5: Product Specifications

    G-Series FXS VoIP Gateway User Guide 2.3 Product Specifications G-Series FXS Gateway Specifications 16/32 x RJ11 FXS Ports Analog Port 1/2 x RJ21 Port(s) Network Port 1 x 10/100Mbps, 1 x 10/100/1000Mbps Ethernet Port Power Input 100 - 240V AC, 50/60Hz Dimension 440mm*171mm*44.5mm Communication...

  • Page 6: Getting Started

    G-Series FXS VoIP Gateway User Guide 3. Getting Started 3.1 Hardware Installation The hardware installation instructions for each device are described in detail in the paper "Quick Installation Guide" in the device package. Please refer to the instructions in the "Quick Installation Guide"...
  • Page 7 G-Series FXS VoIP Gateway User Guide Note: Only by deploying the CooVox T-Series IPPBX and G-Series gateways in the same local network, and configured with IP addresses within the same network segment, so they can work together. Access through browser You may also access the FXS gateway Web GUI by specifying its IP address in the browser address bar.

  • Page 8: Zycoo Ippbx Auto Provision

    G-Series FXS VoIP Gateway User Guide 3.3 ZYCOO IPPBX Auto Provision Log in to the management interface of IPPBX, click Addons -> Exbox -> G2 Gateway. Access through IPPBX Then please refer to the steps in Chapter 3.2 " " to automatically discover the gateway devices under the local network first.
  • Page 9 G-Series FXS VoIP Gateway User Guide Please ensure there’s enough available extension numbers that can be assigned to the FXS ports you have selected, or you will have to create some more extensions from Telephony -> Extensions -> IP Extensions page. After assigning extensions to the FXS gateway device, please click on “Submit”...

  • Page 10: Dashboard

    G-Series FXS VoIP Gateway User Guide 4. Dashboard 4.1 Monitor After logging in, you will see the system information interface of the device, and you can view the basic information of the device. Or click Dashboard -> Monitor in the navigation bar to enter, as shown in the figure below. Monitor ...

  • Page 11: Fxs Status

    G-Series FXS VoIP Gateway User Guide System Info Model: The model of current device.  Device Name:  The given name of current device. WAN IP:  WAN port IP address. WAN MAC:  WAN port MAC address.  LAN IP: LAN port IP address.
  • Page 12 G-Series FXS VoIP Gateway User Guide FXS Status  Port: Display the port number of the FXS module. Extension:  Display the extension number used by each port.  FXS Status: Display the port running status of the FXS module. Register Status: ...

  • Page 13: Gateway

    G-Series FXS VoIP Gateway User Guide 5. Gateway 5.1 VoIP Server Click Gateway-->VoIP Server to enter the VoIP server configuration page, as shown in the figure below. The FXS gateways support up to 8 VoIP server registration configurations which means one FXS gateway can be registered to multiple PBX servers.
  • Page 14 G-Series FXS VoIP Gateway User Guide  Name: The name you given to this SIP server.  SIP Server: The IP address of the SIP server.  Port: The port number of the SIP server.  Protocol: The transport protocol to be used by SIP signaling. By default, it uses UDP protocol, if you choose to use TCP or TLS please make sure the SIP IP phone or softphone uses the same protocol.

  • Page 15: Fxs Settings

    G-Series FXS VoIP Gateway User Guide Codec column. Selected Codec:  Audio codecs you chose will be added here. The sequence of the audio codecs listed here is the sequence of the audio codecs to be one call to be established.
  • Page 16 G-Series FXS VoIP Gateway User Guide may be caused by the failure of the network or wrong password. Operation:  Edit or delete the FXS port configurations. FXS Basic Settings Extension:  Set the extension number configured on the PBX. ...
  • Page 17 G-Series FXS VoIP Gateway User Guide FXS Advanced Settings MWI:  Set the extension number configured on the PBX.The telephone or other device will indicate to the user whether there are unread voicemail messages by displaying on the screen, LED, or other indicators. Hotline: ...
  • Page 18 G-Series FXS VoIP Gateway User Guide Switch Config Select any two ports and click the "Switch Config" button to exchange the FXS basic settings and advanced settings of the two ports. When a port encounters a failure or requires maintenance, users can perform a Switch Config with another functional port to continue providing service without interrupting user connections.

  • Page 19: Advanced Settings

    G-Series FXS VoIP Gateway User Guide 5.3 Advanced Settings On the Gateway --> Advanced Settings page, you can change the global configuration for all ports, includes DAHDI related configuration, input and output volume, echo, and other settings. As shown in the figure below. Gateway Advanced Settings ...

  • Page 20: Feature Codes

    G-Series FXS VoIP Gateway User Guide long-tail echoes. MG2 entails incorporating a proprietary algorithm known for its robustness and versatility in handing various types of echoes. Enable Internal Call:  Allow to call between FXS port without SIP server.  Call Waiting: Whether to enable call waiting on internal extensions.

  • Page 21: Network Settings

    G-Series FXS VoIP Gateway User Guide 6. Network Settings 6.1 Network Profiles The gateway device has 2 network interfaces, WAN port can be configured as DHCP or static IP mode, while LAN port can only be used in static IP mode. By default, WAN is on DHCP mode, so it requires a DHCP server in your network.

  • Page 22: Auto Provision Settings

    Enter the subnet mask for the static IP address. 6.2 Auto Provision Settings On the Network Settings --> Auto Provision Settings page. Zycoo CooVox T-series IPPBX are supported for the auto-provisioning feature with the FXS gateways, which you can configure the gateway settings from the IPPBX side. The CooVox IPPBX can discover the...
  • Page 23 G-Series FXS VoIP Gateway User Guide Auto Provision Settings  Allow to be Discoverd: Allow auto-configuration from specified IP-PBX servers on the same network segment.

  • Page 24: Reports

    G-Series FXS VoIP Gateway User Guide 7. Reports 7.1 Call Logs On the Reports --> Call Logs page, you will be able to check view all extension call records associated with this gateway, as shown in the figure below. You may search call logs by specifying a time period and caller/callee number. If the “Caller” and/or “Final Called”...

  • Page 25: System Logs

    G-Series FXS VoIP Gateway User Guide  Download All: By clicking on the download button you can download all the call logs from the search result. 7.2 System Logs Please go to Reports --> System Logs page. The gateway system automatically generates different types of system logs, and they are traces that can be used for troubleshooting.

  • Page 26: System

    G-Series FXS VoIP Gateway User Guide 8. System 8.1 Reboot & Reset Click System --> Reboot & Reset in the navigation bar to enter the restart and reset control interface. When the system cannot work normally, you can restart the system or restore the default factory settings on this interface, as shown in the figure below.

  • Page 27: Date And Time

    G-Series FXS VoIP Gateway User Guide 8.2 Date and Time Click System --> Date and Time in the navigation bar to enter the region and system time setting interface, as shown in the figure below. Location Country / Region:  Select the country/region you are located, some advanced system settings will be configured according to the country/region you have selected.

  • Page 28: Diagnostic

    G-Series FXS VoIP Gateway User Guide  Sync: Choose to obtain the time automatically through the NTP server or set the time manually. Time Zone:  Set the time zone used by the device. NTP Server:  The network time server used to obtain the time. Note: After modifying the time, the device will restart automatically, and the system authentication will fail, please return to the login page to log in again.
  • Page 29 G-Series FXS VoIP Gateway User Guide Specify the domain or IP of the host you want to contact, then click on the Start button, and then the command begins to process. You will receive results output from the system indicating the reachability of the destination. Trace Route The traceroute command is used to discover the routes that the packets actually took while traveling to their destination.

  • Page 30: Firmware Upgrade

    G-Series FXS VoIP Gateway User Guide Received by Asterisk) and Tx (audio Transmitted by Asterisk). CMD CLI The CMD CLI provides you the access to execute the CLI commands. To avoid incorrect operation that may affect the system, here provides the pjsip and core command to check the status.
  • Page 31 G-Series FXS VoIP Gateway User Guide...
