Page 2: Table Of Contents
Contents Overview ................................1 Product Overview ............................1 Product Specifications ............................ 1 Basic Settings ..............................2 Web Interface Login ............................2 Device Info ..............................3 Network Settings ............................. 5 SIP Account ..............................6 Advanced SIP Settings ............................. 7 Audio Codecs ..............................7 SIP Call Settings ............................. -
Page 3: Overview

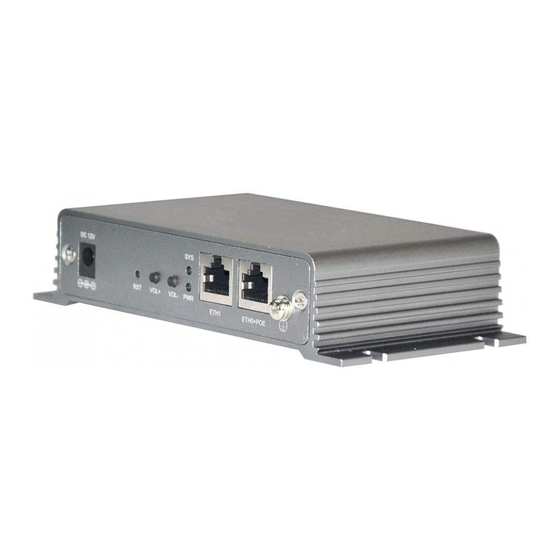

Based on the compact hardware design, open standard SIP protocol support, rich functionality and high performance. Industry users can customize the X series SIP paging gateway into any desired form of intercom device or paging speaker. These can then be widely used for smart and safe city applications, to increase the efficiency of communication and information sharing. -
Page 4: Basic Settings
For the safety of the SIP paging gateway, it is recommended to change the default password on first login, please go to Settings -> Change Password page to change the password. IP SIP Paging Gateway User Guide | ZYCOO Co., Ltd. -
Page 5: Device Info
After login, you’ll first see the Device Info screen. SIP STATUS • SIP Account: The SIP number configured on this device. • SIP Server: The SIP server (ZYCOO IP Audio Center or other IP PBX) address. • Register Status: The SIP number registration status. DEVICE INFORMATION •... - Page 6 Default Gateway: Shows the current default gateway of the device. • Primary DNS: Shows the current primary DNS of the device. • Alternative DNS: Shows the current alternative DNS of the device. IP SIP Paging Gateway User Guide | ZYCOO Co., Ltd.
-
Page 7: Network Settings
IP Audio Center or other SIP server is installed outside the LAN. • Primary DNS: Enter an effective primary DNS server address. • Alternative DNS: Enter an alternative DNS server address, when the primary DNS fails, alternative DNS will be used. IP SIP Paging Gateway User Guide | ZYCOO Co., Ltd. -
Page 8: Sip Account
Starting RTP Port: The starting local RTP port number. • Enable Integration with ZYCOO IP Audio Center: If the SIP paging gateway device is registering to ZYCOO IP Audio Center, this parameter needs to be enabled, otherwise do not enable it. -
Page 9: Advanced Sip Settings
• RTP Timeout(S): If no RTP stream has been received within the given number of seconds, the SIP paging gateway will terminate the SIP call. IP SIP Paging Gateway User Guide | ZYCOO Co., Ltd. -
Page 10: Advanced System Settings
Both X10 and X30 SIP paging gateway support connecting two press-to-talk (or push-to talk) buttons, any desired number can be setup here. As a result, when one of the call buttons has been pressed, the SIP paging gateway will try to call the corresponding number. IP SIP Paging Gateway User Guide | ZYCOO Co., Ltd. - Page 11 The switch signal output duration can be configured from 1 to 600 seconds. The trigger of the output action can be digital level input signal, DTMF signal or call state. IP SIP Paging Gateway User Guide | ZYCOO Co., Ltd.
- Page 12 If “Incoming”, the dry contact relay output will be triggered when the SIP paging gateway gets an incoming SIP paging/intercom call. If “Hangup”, the dry contact relay output will be triggered when a SIP call ends on the SIP paging gateway. IP SIP Paging Gateway User Guide | ZYCOO Co., Ltd.
-
Page 13: Time Settings
SIP paging gateway will synchronize time of your time zone from the NTP server you have configured. Language Settings The language of local voice prompts, like IP address announcements, can be set on Settings -> Language Settings page. IP SIP Paging Gateway User Guide | ZYCOO Co., Ltd. -
Page 14: Upgrade
You’ll first see the current firmware version of the device and the last upgrade time. Upload the .img file provided by ZYCOO to perform the upgrade action. If you wish to reset the device to factory defaults after upgrading, please enable the “Reset Factory Defaults” parameter. - Page 15 @ 2020 Zycoo Co., Ltd. All rights reserved. www.zycoo.com ZYCOO, NEEQ Code 839487, is the leading developer and manufacturer of IP telephony devices and related systems, devoting itself over the past years to R&D powerful and scalable voice over IP (VoIP) solutions that...
